PSMBU250

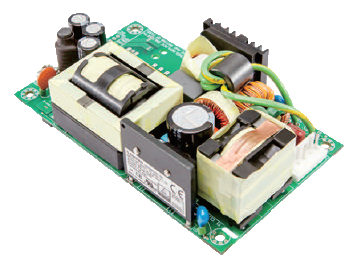

The PSMBU250 series of class I medical AC/DC switching power supplies provides 250 Watts of continuous output power in a 5.00” x 3.00” x 1.46” open frame package. This series consists of single output models with a wide input voltage range of 90~264VAC. Some features include high efficiency up to 94%, 2MOPP insulation, and short circuit, over current and over load protection. All models meet FCC Part-18, CISPR-11, and EN55011 Class B emission limits. This series also has IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 NO. 60601-1:14, and EN60601-1:2006/A1:2013 safety approvals. All models are RoHS2 compliant and have been 100% burn-in tested.

• Class I • RoHS2 Compliant • High ESD Immunity • Flammability Rating of UL94V-1 • Cooling by Free Air Convection • 250 Watts Output Power • Input to Output: 2MOPP • Up to 94% High Efficiency • Wide Input Voltage Range: 90~264VAC • Short Circuit, Over Voltage, & Over Load Protection • Meets FCC Part-18, CISPR-11, and EN55011 Class B Emission Limits • IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 NO. 60601-1:14, and EN60601-1:2006/A1:2013 Safety Approvals • 100% Burn-in Tested
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSMBU250-105 Input Voltage: 90~264 Output Voltage: 12 Output Current: 20.83A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
PSMBU250-106 Input Voltage: 90~264 Output Voltage: 15 Output Current: 16.66A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
PSMBU250-107 Input Voltage: 90~264 Output Voltage: 19 Output Current: 13.15A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
PSMBU250-108 Input Voltage: 90~264 Output Voltage: 24 Output Current: 10.41A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
PSMBU250-109 Input Voltage: 90~264 Output Voltage: 30 Output Current: 8.33A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
PSMBU250-110 Input Voltage: 90~264 Output Voltage: 36 Output Current: 6.94A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
PSMBU250-111 Input Voltage: 90~264 Output Voltage: 48 Output Current: 5.20A Output Power (W): 250 No. Outputs: S Case: Open Frame Size: 5" x 3" x 1.46" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100/240
Input Voltage Range: 90~264
Input Frequency: 47 - 63Hz
Output
Output Voltage: 12, 15, 19, 24, 30, 36, 48
Output Current: 5.20A, 6.94A, 8.33A, 10.41A, 13.15A, 16.66A, 20.83A
Output Power (Watts): 250
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 112~132%
General
Efficiency: Up to 94%
Environmental
Operating Temperature: -40 to +70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 11.64oz (330g)

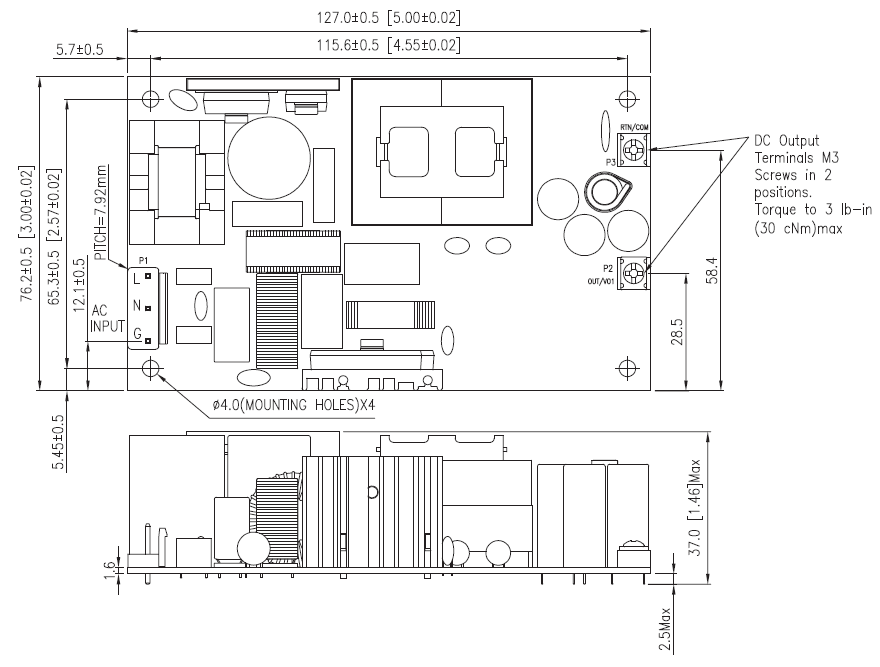

Dimensions: 5in x 3in x 1.46in (127mm x 76.2mm x 37.1mm)
Notes & safety
Notes: 1. Output can provide up to peak load when power supply starts up. Staying in more than rated load continually is not allowed.
2. At factory in 60% rated load condition, each output is checked to be within voltage accuracy.
3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
4. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
5. Ripple is measured from peak to peak with a bandwidth-limit of 20MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor) .
6. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
7. Efficiency is measured at rated load and nominal line
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 NO. 60601-1:14, EN60601-1:2006/A1:2013
RoHS Compliance: RoHS2
