PSM360
The PSM360 series of medical AC/DC switching power supplies offers 360 watts of output power with 30CFM forced airflow. All models have a single output, 90~264VAC full range input, and active PFC. These supplies also have UL60601-1, TUV EN60601-1, CB IEC60601-1, and CE safety approvals. All models are protected against short circuit, over load, and over voltage conditions. Models are available in U-Chassis (Type U), enclosed with rear side built-in fan (Type E), and enclosed with top built-in fan (Type F) designs. This series also has a current sharing option (suffix “D”).
● Active PFC
● Single Output
● Remote Inhibit Function
● 5V / 1A Standby Output
● 12V / 1A Output for Fan
● 90~264Vac Input Voltage Range
● 360W with 30CFM Forced Airflow
● Current Sharing Option (Single Wire)
● Short Circuit, Over Load, and Over Voltage Protection
● UL60601-1, CSA-C22.2 No. 60601-1, IEC EN60601-1, EN60601-1 (3rd Edition) Safety Approvals

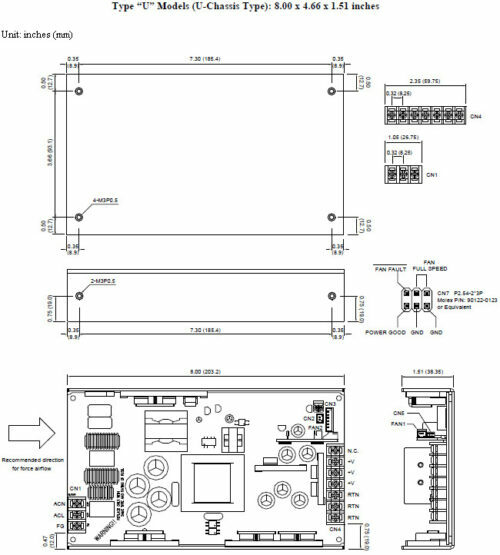

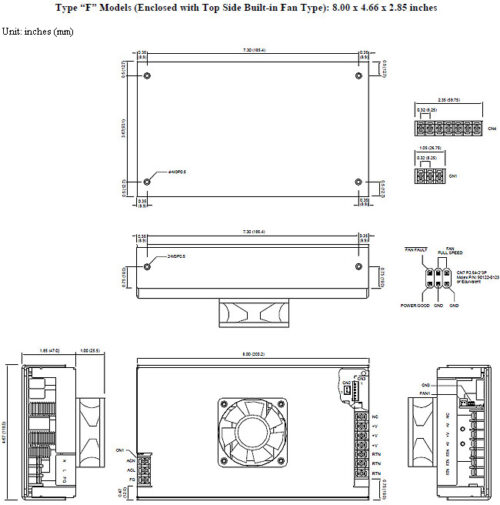

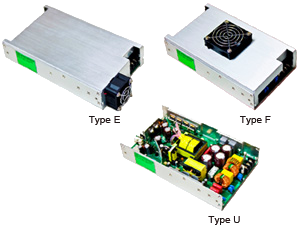

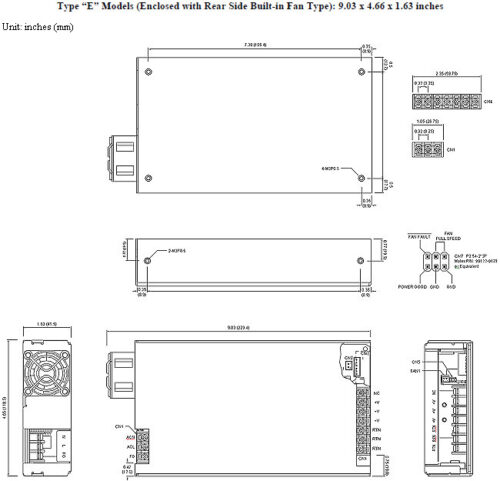

● 3 Mechanical Options Available: U-Chassis, Enclosed with Rear Side Fan, Enclosed with Top Fan
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSM360B-1Y12-F | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y12-E | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| PSM360B-1Y12-U | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y24-U | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y24-F | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y24-E | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| PSM360B-1Y30-E | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| PSM360B-1Y30-F | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y30-U | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 12A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y36-U | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y36-E | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| PSM360B-1Y36-F | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y48-U | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y48-E | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| PSM360B-1Y48-F | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y54-E | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 6.67A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| PSM360B-1Y54-U | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 6.67A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y54-F | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 6.67A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y57-F | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 6.32A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 8 x 4.66 x 2.6 | Get a Quote |
| PSM360B-1Y57-U | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 6.32A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 8" x 4.66" x 1.65" | Get a Quote |
| PSM360B-1Y57-E | Input Voltage: 90~264 | Output Voltage: 57 | Output Current: 6.32A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 9.03" x 4.66" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | 115VAC: >0.95 230VAC: >0.90 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24, 30, 36, 48, 54, 57 |
| Output Current: | 30A, 15A, 12A, 10A, 7.5A, 6.67A, 6.32A |
| Output Power (Watts): | 360 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 130% Max. |
| General | |
| Efficiency: | 83%/86% |
| Isolation: | 5656VDC |
| Environmental | |
| Operating Temperature: | 0 to 50°C |
| Physical | |
| Weight: | U Type: 1.90 lbs (0.86kgs) E Type: 2.16 lbs (0.98kgs) F Type: 2.18 lbs (0.99kgs) |

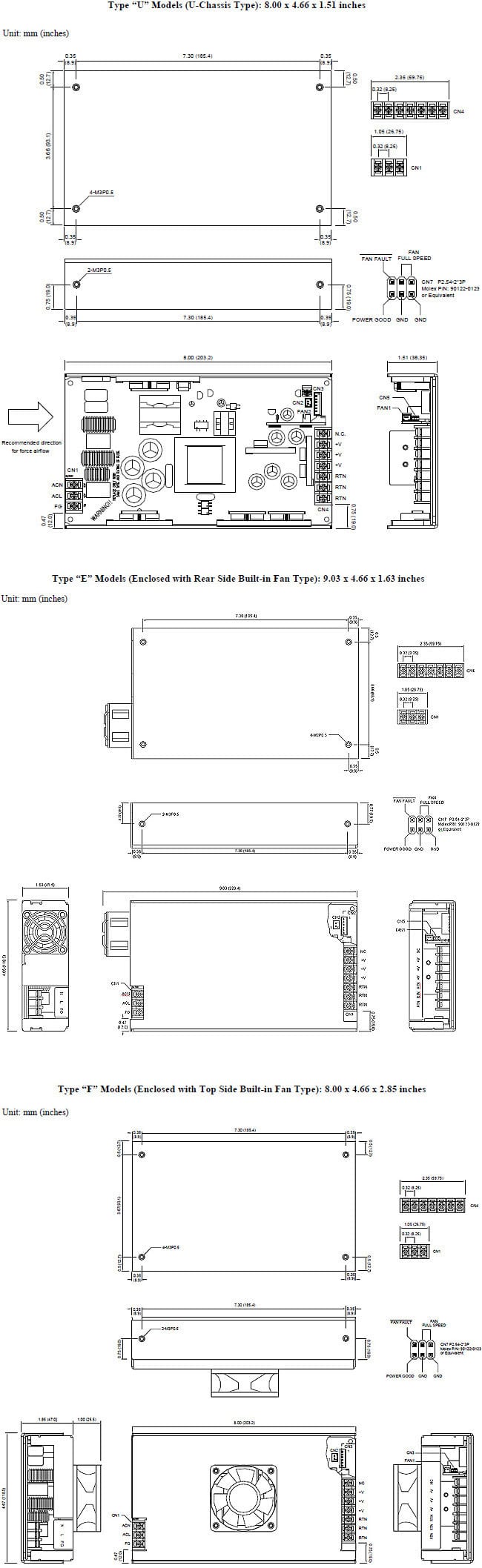

| Dimensions: | U Type: 8.00 x 4.66 x 1.65 (203.2 x 118.5 x 42 mm) E Type: 9.03 x 4.66 x 1.69 (229.4 x 118.5 x 43 mm) F Type: 8.00 x 4.66 x 2.60 (203.2 x 118.5 x 66 mm) |
| Notes & safety | |
| Notes: | 1. Mechanical Options: The “x” in the part number can be “U” for U-chassis type, “E” for enclosed type with rear side built-in fan, or “F” for enclosed type with top side built-in fan. The “D” is for current sharing option. 2. U Type: 270W at +40ºC ambient max. 3. U Type: 360W max. with 30CFM forced air at +50°C ambient temperature. E Type: 360W max. at +50°C ambient temperature. F Type: 360W max. at +50°C ambient temperature. 4. At 25°C including initial tolerance, line voltage, load currents, and output voltages adjusted to factory settings. 5. Ripple & Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60601-1, CSA-C22.2 No. 60601-1, IEC EN60601-1, EN60601-1 (3rd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60601-1 |
