PSIUU63
The PSIUU63 series of Class I AC/DC switching mode power supplies provides up to 63 Watts of continuous output power in a 5.00” x 3.21” x 1.38” U-chassis package. This series has single, dual, triple, and quad output models with a wide input voltage range of 81~280VAC (90~420VDC). These power supplies have an internal EMI filter and are protected against over voltage and over current conditions. This series also has UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. These units are well suited for use in industrial equipment as well as many other applications. All models are 100% burn-in tested.
• Class I
• Single to Quad Outputs
• RoHS Compliant
• Internal EMI Filter
• Up to 63 Watts Output Power
• Power Fail Detect (Optional)
• Over Voltage and Over Current Protection
• Wide Input Voltage Range: 81~280VAC (90~420VDC)
• -20°C to +70°C Operating Temperature Range
• 2-Pin Input Connector
• 3-Pin Input Connector Available (See PSIUU62 Series)
• UL/cUL(UL 60950-1: 2nd Edition) & TUV/GS (EN 60950-1: 2nd Edition) Safety Approvals
• 100% Burn-in Tested
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSIUU63-105-1 | Input Voltage: 81~280 | Output Voltage: 11~13 | Output Current: 4.09 ~ 3.46 A | Output Power (W): 45 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-204 | Input Voltage: 81~280 | Output Voltage: 3.3, 5 | Output Current: 7A, 5A | Output Power (W): 48.1 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-101 | Input Voltage: 81~280 | Output Voltage: 3~5 | Output Current: 16.66 ~ 10.00 A | Output Power (W): 50 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-308 | Input Voltage: 81~280 | Output Voltage: 3.3, 5, -12 | Output Current: 5A, 5A, 1A | Output Power (W): 53.5 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-308-1 | Input Voltage: 81~280 | Output Voltage: 3.3, 5, 12 | Output Current: 5A, 5A, 1A | Output Power (W): 53.5 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-102 | Input Voltage: 81~280 | Output Voltage: 5~6 | Output Current: 11.00 ~ 9.16 A | Output Power (W): 55 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-200 | Input Voltage: 81~280 | Output Voltage: 3.3, 12 | Output Current: 7A, 3A | Output Power (W): 59.1 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-306 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, -5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 59.8 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-306-1 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, 5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 59.8 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-103 | Input Voltage: 81~280 | Output Voltage: 6~8 | Output Current: 10.00 ~ 7.50 A | Output Power (W): 60 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-104 | Input Voltage: 81~280 | Output Voltage: 8~11 | Output Current: 7.87 ~ 5.72 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-105 | Input Voltage: 81~280 | Output Voltage: 11~13 | Output Current: 5.72 ~ 4.84 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-106 | Input Voltage: 81~280 | Output Voltage: 13~16 | Output Current: 4.84 ~ 3.93 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-107 | Input Voltage: 81~280 | Output Voltage: 16~21 | Output Current: 3.93 ~ 3.00 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-108 | Input Voltage: 81~280 | Output Voltage: 21~27 | Output Current: 3.00 ~ 2.33 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-109 | Input Voltage: 81~280 | Output Voltage: 27~33 | Output Current: 2.33 ~ 1.90 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-110 | Input Voltage: 81~280 | Output Voltage: 33~40 | Output Current: 1.90 ~ 1.57 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-111 | Input Voltage: 81~280 | Output Voltage: 40~48 | Output Current: 1.57 ~ 1.31 A | Output Power (W): 63 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-201 | Input Voltage: 81~280 | Output Voltage: 5, 12 | Output Current: 7A, 3A | Output Power (W): 63 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-202 | Input Voltage: 81~280 | Output Voltage: 5, 15 | Output Current: 7A, 3A | Output Power (W): 63 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-203 | Input Voltage: 81~280 | Output Voltage: 5, 24 | Output Current: 7A, 2A | Output Power (W): 63 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-215 | Input Voltage: 81~280 | Output Voltage: 5, -24 | Output Current: 7A, 2A | Output Power (W): 63 | No. Outputs: D | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-300 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, -12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-300-1 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, 12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-301 | Input Voltage: 81~280 | Output Voltage: 5, 12, -5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-301-1 | Input Voltage: 81~280 | Output Voltage: 5, 12, 5 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-302 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-302-1 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-303 | Input Voltage: 81~280 | Output Voltage: 5, 15, -15 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-303-1 | Input Voltage: 81~280 | Output Voltage: 5, 15, 15 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-305 | Input Voltage: 81~280 | Output Voltage: 5, 24, -12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-305-1 | Input Voltage: 81~280 | Output Voltage: 5, 24, 12 | Output Current: 6A, 3A, 0.8A | Output Power (W): 63 | No. Outputs: T | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-400 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, -12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-400-1 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, -12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-400-2 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, 12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-400-3 | Input Voltage: 81~280 | Output Voltage: 3.3, 12, 12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-401 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-401-1 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-401-2 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-401-3 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-402 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12, -12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-402-1 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12, 12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-402-2 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12, -12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-402-3 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12, 12 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-403 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12, -24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-403-1 | Input Voltage: 81~280 | Output Voltage: 5, 12, -12, 24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-403-2 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12, -24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-403-3 | Input Voltage: 81~280 | Output Voltage: 5, 12, 12, 24 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-404 | Input Voltage: 81~280 | Output Voltage: 5, 15, -15, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-404-1 | Input Voltage: 81~280 | Output Voltage: 5, 15, -15, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-404-2 | Input Voltage: 81~280 | Output Voltage: 5, 15, 15, -5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| PSIUU63-404-3 | Input Voltage: 81~280 | Output Voltage: 5, 15, 15, 5 | Output Current: 6A, 3A, 0.8A, 0.8A | Output Power (W): 63 | No. Outputs: M | Case: U-Chassis | Size: 5" x 3.21" x 1.38" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 81~280 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48, 3.3, 5, 12, -12, 15, -15, 24, -24 |
| Output Current: | 1.57~1.31A, 1.90~1.57A, 2.33~1.90A, 3.00~2.33A, 3.93~3.00A, 4.84~3.93A, 4.09~3.46A, 5.72~4.84A, 7.87~5.72A, 10~7.50, 11~9.16A, 16.66~10A, 6A, 2A, 0.8A, 7A, 3A, 5A, 1A |
| Output Power (Watts): | 45, 48.1, 50, 53.5, 59.1, 59.8, 60, 63 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 70-88% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 15oz (425g) |

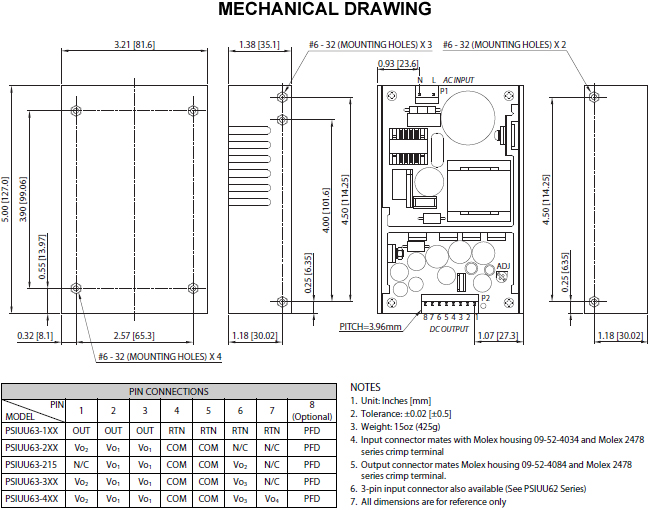

| Dimensions: | 5.00" x 3.21" x 1.38" (127.0 x 81.6 x 35.1 mm) |
| Notes & safety | |
| Notes: | 1. Input connector mates with Molex housing 09-52-4034 and Molex 2478 series crimp terminal 2. Output connector mates with Molex housing 09-52-4084 and Molex 2478 serries crimp terminal. 3. 3-pin input connector also available (See PSIUU62 Series). 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL 60950-1: 2nd edition); TUV/GS (EN 60950-1: 2nd edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd Edition) |
