PSIUU60

The PSIUU60 series of Class I AC/DC switching mode power supplies provides up to 63 Watts of continuous output power in a 5.00” x 3.21” x 1.38” U-chassis package. This series has single, dual, triple, and quad output models with a wide input voltage range of 81~280VAC (90~420VDC). These power supplies have an internal EMI filter and are protected against over voltage and over current conditions. This series also has UL/cUL (UL 60950-1: 2nd edition) and TUV/GS (EN 60950-1: 2nd edition) safety approvals. These units are well suited for use in industrial equipment as well as many other applications. All models are 100% burn-in tested.

• Class I • Single to Quad Outputs • RoHS Compliant • Internal EMI Filter • Up to 63 Watts Output Power • Power Fail Detect (Optional) • Over Voltage and Over Current Protection • Wide Input Voltage Range: 81~280VAC (90~420VDC) • -20°C to +70°C Operating Temperature Range • 3-Pin Screw Terminal Input Connector • 2-Pin Screw Terminal Input Connector Available (See PSIUU61 Series) • UL/cUL(UL 60950-1: 2nd Edition) & TUV/GS (EN 60950-1: 2nd Edition) Safety Approvals • 100% Burn-in Tested

Get a Quote Custom Solutions

Models
Specifications

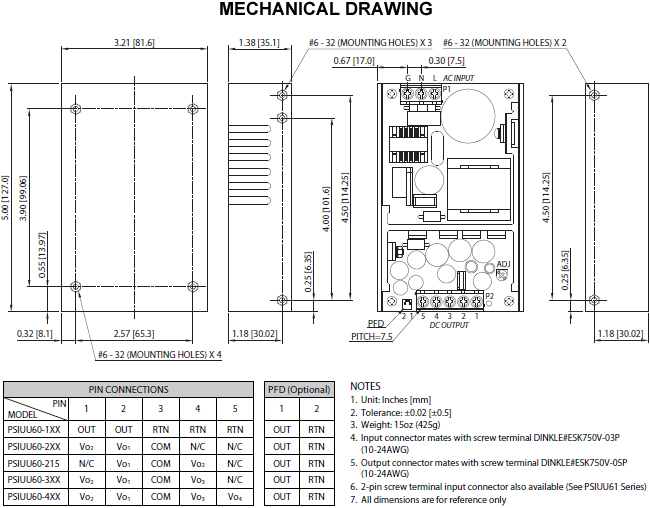

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSIUU60-105-1	Input Voltage: 81~280	Output Voltage: 11~13	Output Current: 4.09 ~ 3.46 A	Output Power (W): 45	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-204	Input Voltage: 81~280	Output Voltage: 3.3, 5	Output Current: 7A, 3A	Output Power (W): 48.1	No. Outputs: D	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-101	Input Voltage: 81~280	Output Voltage: 3~5	Output Current: 16.66 ~ 10.00 A	Output Power (W): 50	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-308	Input Voltage: 81~280	Output Voltage: 3.3, 5, -12	Output Current: 5A, 5A, 1A	Output Power (W): 53.5	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-308-1	Input Voltage: 81~280	Output Voltage: 3.3, 5, 12	Output Current: 5A, 5A, 1A	Output Power (W): 53.5	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-102	Input Voltage: 81~280	Output Voltage: 5~6	Output Current: 11.00 ~ 9.16 A	Output Power (W): 55	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-200	Input Voltage: 81~280	Output Voltage: 3.3, 12	Output Current: 7A, 3A	Output Power (W): 59.1	No. Outputs: D	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-306	Input Voltage: 81~280	Output Voltage: 3.3, 5, -5	Output Current: 6A, 3A, 0.8A	Output Power (W): 59.8	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-306-1	Input Voltage: 81~280	Output Voltage: 3.3, 5, 5	Output Current: 6A, 3A, 0.8A	Output Power (W): 59.8	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-103	Input Voltage: 81~280	Output Voltage: 6~8	Output Current: 10.00 ~ 7.50 A	Output Power (W): 60	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-104	Input Voltage: 81~280	Output Voltage: 8~11	Output Current: 7.87 ~ 5.72 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-105	Input Voltage: 81~280	Output Voltage: 11~13	Output Current: 5.72 ~ 4.84 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-106	Input Voltage: 81~280	Output Voltage: 13~16	Output Current: 4.84 ~ 3.93 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-107	Input Voltage: 81~280	Output Voltage: 16~21	Output Current: 3.93 ~ 3.00 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-108	Input Voltage: 81~280	Output Voltage: 21~27	Output Current: 3.00 ~ 2.33 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-109	Input Voltage: 81~280	Output Voltage: 27~33	Output Current: 2.33 ~ 1.90 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-110	Input Voltage: 81~280	Output Voltage: 33~40	Output Current: 1.90 ~ 1.57 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-111	Input Voltage: 81~280	Output Voltage: 40~48	Output Current: 1.57 ~ 1.31 A	Output Power (W): 63	No. Outputs: S	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-201	Input Voltage: 81~280	Output Voltage: 5, 12	Output Current: 7A, 3A	Output Power (W): 63	No. Outputs: D	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-202	Input Voltage: 81~280	Output Voltage: 5, 15	Output Current: 7A, 3A	Output Power (W): 63	No. Outputs: D	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-203	Input Voltage: 81~280	Output Voltage: 5, 24	Output Current: 7A, 3A	Output Power (W): 63	No. Outputs: D	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-215	Input Voltage: 81~280	Output Voltage: 5, -24	Output Current: 7A, 3A	Output Power (W): 63	No. Outputs: D	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-300	Input Voltage: 81~280	Output Voltage: 3.3, 12, -12	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-300-1	Input Voltage: 81~280	Output Voltage: 3.3, 12, 12	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-301	Input Voltage: 81~280	Output Voltage: 5, 12, -5	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-301-1	Input Voltage: 81~280	Output Voltage: 5, 12, 5	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-302	Input Voltage: 81~280	Output Voltage: 5, 12, -12	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-302-1	Input Voltage: 81~280	Output Voltage: 5, 12, 12	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-303	Input Voltage: 81~280	Output Voltage: 5, 15, -15	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-303-1	Input Voltage: 81~280	Output Voltage: 5, 15, 15	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-305	Input Voltage: 81~280	Output Voltage: 5, 24, -12	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-305-1	Input Voltage: 81~280	Output Voltage: 5, 24, 12	Output Current: 6A, 3A, 0.8A	Output Power (W): 63	No. Outputs: T	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-400	Input Voltage: 81~280	Output Voltage: 3.3, 12, -12, -5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-400-1	Input Voltage: 81~280	Output Voltage: 3.3, 12, -12, 5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-400-2	Input Voltage: 81~280	Output Voltage: 3.3, 12, 12, -5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-400-3	Input Voltage: 81~280	Output Voltage: 3.3, 12, 12, 5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-401	Input Voltage: 81~280	Output Voltage: 5, 12, -12, -5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-401-1	Input Voltage: 81~280	Output Voltage: 5, 12, -12, 5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-401-2	Input Voltage: 81~280	Output Voltage: 5, 12, 12, -5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-401-3	Input Voltage: 81~280	Output Voltage: 5, 12, 12, 5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-402	Input Voltage: 81~280	Output Voltage: 5, 12, -12, -12	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-402-1	Input Voltage: 81~280	Output Voltage: 5, 12, -12, 12	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-402-2	Input Voltage: 81~280	Output Voltage: 5, 12, 12, -12	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-402-3	Input Voltage: 81~280	Output Voltage: 5, 12, 12, 12	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-403	Input Voltage: 81~280	Output Voltage: 5, 12, -12, -24	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-403-1	Input Voltage: 81~280	Output Voltage: 5, 12, -12, 24	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-403-2	Input Voltage: 81~280	Output Voltage: 5, 12, 12, -24	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-403-3	Input Voltage: 81~280	Output Voltage: 5, 12, 12, 24	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-404	Input Voltage: 81~280	Output Voltage: 5, 15, -15, -5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-404-1	Input Voltage: 81~280	Output Voltage: 5, 15, -15, 5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-404-2	Input Voltage: 81~280	Output Voltage: 5, 15, 15, -5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote
PSIUU60-404-3	Input Voltage: 81~280	Output Voltage: 5, 15, 15, 5	Output Current: 6A, 3A, 0.8A, 0.8A	Output Power (W): 63	No. Outputs: M	Case: U-Chassis	Size: 5" x 3.21" x 1.38"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	81~280
Input Frequency:	47-63Hz
Output
Output Voltage:	3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48, 3.3, 5, -5, 12, -12, 15, -15, 24, -24
Output Current:	1.57~1.31A, 1.90~1.57A, 2.33~1.90A, 3.00~2.33A, 3.93~3.00A, 4.84~3.93A, 4.09~3.46A, 5.72~4.84A, 7.87~5.72A, 10~7.50, 11~9.16A, 16.66~10A, 6A, 2A, 0.8A, 7A, 3A, 5A, 1A
Output Power (Watts):	45, 48.1, 50, 53.5, 55, 59.1, 59.8, 60, 63
Over Voltage Protection:	112-132%
General
Efficiency:	70-88%
Isolation:	4242VDC
Environmental

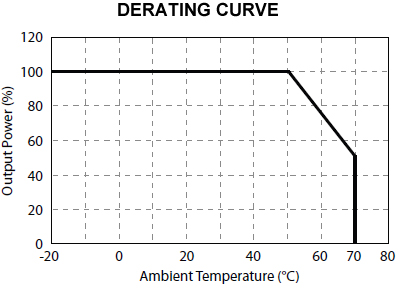

Operating Temperature:	-20 to 70°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	15oz (425g)
Dimensions:	5.00" x 3.21" x 1.38" (127.0 x 81.6 x 35.1 mm)
Notes & safety
Notes:	1. Input connector mates with screw terminal DINKLE#ESK750V-03P (10-24AWG). 2. Output connector mates with screw terminal DINKLE#ESK750V-05P (10-24AWG). 3. 2-pin screw terminal input connector also available (See PSIUU61 Series). 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL/cUL (UL 60950-1: 2nd edition); TUV/GS (EN 60950-1: 2nd edition)
RoHS Compliance:	Yes
TUV Efficiency Level:	TUV/GS (EN 60950-1: 2nd Ed.)
