PSIM65B2
The PSIM65B2 series of AC DC open frame power supplies provides up to 65 watts of output power in a 4” x 2” x 1.08” frame. This series consists of single output models that have a wide input voltage range of 90~264VAC and output voltages ranging from 5V to 54V. These models have a low leakage current and high efficiency greater than 89%.They are also Efficiency Level VI and RoHS compliant. Each model is protected against short circuit, over load, and over voltage conditions, and also has means of patient protection (MOPP). Different input and output connectors are available, please call factory for ordering details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSIM040B2-1Y050Z | Input Voltage: 90~260 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y120Z | Input Voltage: 90~260 | Output Voltage: 12 | Output Current: 5.42A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y150Z | Input Voltage: 90~260 | Output Voltage: 15 | Output Current: 4.34A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y0190Z | Input Voltage: 90~260 | Output Voltage: 19 | Output Current: 3.43A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y240Z | Input Voltage: 90~260 | Output Voltage: 24 | Output Current: 2.71A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y280Z | Input Voltage: 90~260 | Output Voltage: 28 | Output Current: 2.33A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y480Z | Input Voltage: 90~260 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| PSIM065B2-1Y540Z | Input Voltage: 90~260 | Output Voltage: 54 | Output Current: 1.21A | Output Power (W): 65 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.08" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 19, 24, 28, 48, 54 |
| Output Current: | 8A, 5.42A, 4.34A, 3.43A, 2.71A, 2.33A, 1.36A, 1.21A |
| Output Power (Watts): | 40, 65 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | AC Recycle |
| General | |
| Efficiency: | Up to 89% |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 4.8oz |

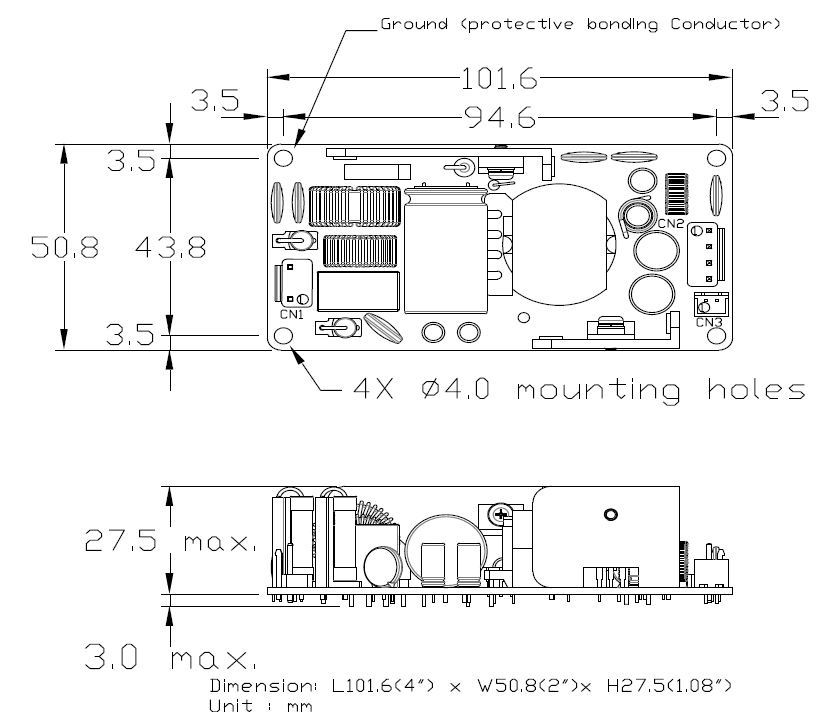

| Dimensions: | 4" x 2" x 1.08" |
| Notes & safety | |

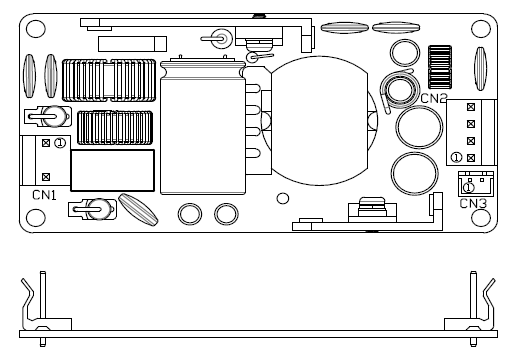

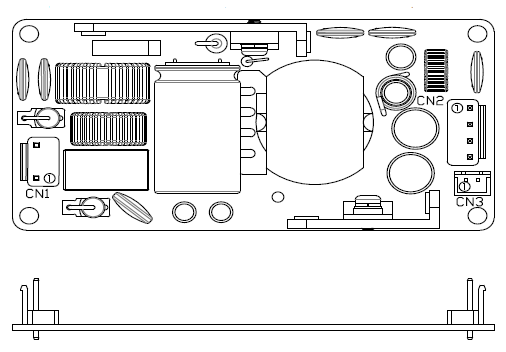

| Notes: | (1) Z indicates In/Output connector options: “Z”= J (JST VH Type Connector or Equ.), Z=M (Molex 5277 Type Connector or Equ.) (2) Output Voltage is set my manufacturer (3) Ripple and nose are measured at oscilloscope 20MHz bandwidth by a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector. Ripple and noise will be higher while load is under 30% of rate load during Burst Mode operation. Burst Mode operation is to meet the latest efficiency regulations. (4) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 60601-1 3rd EditionUL/c-UL UL60950-1EN60601-1 3rd EditionTUV EN60950-1IEC EN60601-1 3rd EditionCB IEC 60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1 |
| Energy Star Compliance: | Level VI |
