PSIM360B

The PSIM360B series of AC DC open frame medical power supplies offers 360 watts of output power in a highly reliable 6″ x 4″ x 1.18″ frame. This series consists of single output models, input range of 90-264VAC, and a frequency of 47-63Hz. All models have high efficiency above 90%, remote control (inhibit) function, and high power density. This series meets medical BF rating as well as ITE and medical approvals. Please call factory for order details.

• Both ITE and Medical Approvals • High Power Density, 360W in 6” x 4” Footprint • Medical Applications Protection: Means of Patient Protection (MOPP) • Altitude During Operation: ITE up to 5000 m, Medical below 3000M • 5Vsb Meets ErP 0.5w @ No Load • Meets Medical BF Rating • Main Output and Standby Output Power ON LED Indicators • Remote Control (Inhibit) Function • RoHS Compliant • Wide Input Range of 90-264VAC
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSIM360B-1Y120Z Input Voltage: 90~264 Output Voltage: 12 Output Current: 20.84~30A Output Power (W): 360 No. Outputs: S Case: Open Frame Size: 6" x 4" x 1.18" Get a Quote
PSIM360B-1Y240Z Input Voltage: 90~264 Output Voltage: 24 Output Current: 10.42~15A Output Power (W): 360 No. Outputs: S Case: Open Frame Size: 6" x 4" x 1.18" Get a Quote
PSIM360B-1Y280Z Input Voltage: 90~264 Output Voltage: 28 Output Current: 8.93~12.86A Output Power (W): 360 No. Outputs: S Case: Open Frame Size: 6" x 4" x 1.18" Get a Quote
PSIM360B-1Y480Z Input Voltage: 90~264 Output Voltage: 48 Output Current: 5.21~7.50A Output Power (W): 360 No. Outputs: S Case: Open Frame Size: 6" x 4" x 1.18" Get a Quote
PSIM360B-1Y540Z Input Voltage: 90~264 Output Voltage: 54 Output Current: 4.63~6.67A Output Power (W): 360 No. Outputs: S Case: Open Frame Size: 6" x 4" x 1.18" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Remote ON/OFF: Inhibit Function
PFC: >0.95 @115VAC >0.90 @230VAC, Full Load
Input Frequency: 47-63Hz
Output
Output Voltage: 12, 24, 28, 48, 54
Output Current: 20.84A, 10.42A, 8.93A, 5.21A, 4.63A
Output Power (Watts): 360
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Type, AC Recycle
General
Efficiency: 90%
Environmental
Operating Temperature: 0 to 70°C
Storage Temperature: -20 to 85°C
Physical
Weight: 1.06 lbs

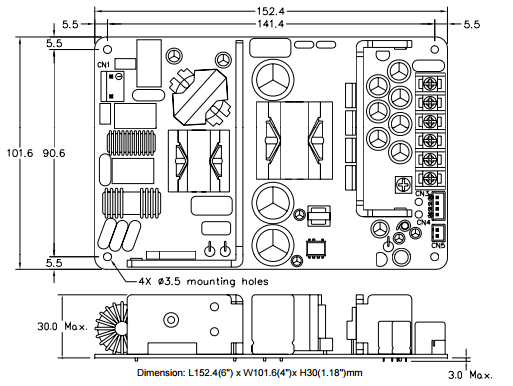

Dimensions: 6" x 4" x 1.18"
Notes & safety
Notes: (1) Output connector options: Z=T (Terminal block type, pitch 8.25mm) Suitable for all voltages, or Z=C (Connector type, pitch=3.69mm): Suitable for 24V and up.
(2) All models are equipped with 5Vsb & 12V fan outputs.
a. 5Vsb meets ErP 0.5W @ No Load
(3) All models have total power 250W max. convection or 360W max. forced air cooling.
(4) Ripple and noise are measured at oscilloscope 20MHz bandwidth by a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector.
(5) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications are subject to change without notice.
Safety Approvals: UL60601-1 3.1 Edition, UL/c-UL UL60950-1, UL/c-UL UL62368-1, EN60601-1 3.1 Edition, TUV EN60950-1, TUV EN62368-1, IEC EN60601-1 3.1 Edition, CB IEC 60950-1, CB IEC 62368-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60950-1, TUV EN62368-1
