PSIM280B

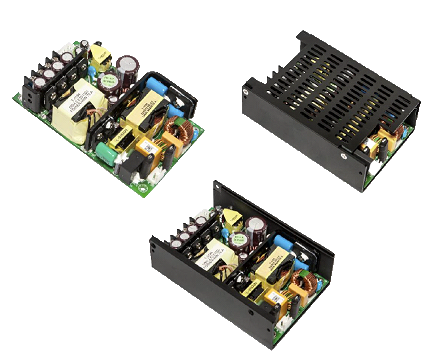

The PSIM280B series of medical power supplies offers 280 watts of output power in a highly reliable open frame, enclosed, or u-chassis package. This series consists of single outputs, an input voltage range of 90-264VAC, and a frequency of 47-63Hz. All models are RoHS compliant, have high efficiency above 91%, and are equipped with remote control (inhibit) function. This series has UL60601-1 3.1 Edition, UL/c-UL UL60950-1, and UL/c-UL UL62368-1, EN60601-1 3.1 edition, TUV EN60950-1, TUV EN62368-1, IEC EN60601-1 3.1 Edition, CB IEC 60950-1, and CB IEC 62368-1 safety approvals.
• Both ITE and Medical Approvals
• High Power Density, 280W in 5” x 3” Footprint
• Medical Applications Protection: Means of Patient Protection (MOPP)
• Altitude During Operation: ITE up to 5000m, Medical below 3000M
• Short Circuit, Over Load, and Over Voltage Protection
• Main Output and Standby Output Power ON LED Indicators
• Remote Control (Inhibit) Function
• RoHS Compliant
• Wide Input Range of 90-264VAC
• UL60601-1 3.1 Edition, UL/c-UL UL60950-1, and UL/c-UL UL62368-1, EN60601-1 3.1 edition, TUV EN60950-1, TUV EN62368-1, IEC EN60601-1 3.1 Edition, CB IEC 60950-1, and CB IEC 62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSIM280B-1Y120ZO | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 17.5~23.33A | Output Power (W): 280 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y240ZO | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 8.75~11.66A | Output Power (W): 280 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y280ZO | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 7.5~10A | Output Power (W): 280 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y480ZO | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.375~5.38A | Output Power (W): 280 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y540ZO | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 3.88~5.18A | Output Power (W): 280 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y360ZO | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 5.83A~7.77A | Output Power (W): 280 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y120ZE | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 16.66A~23.33A | Output Power (W): 280 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y240ZE | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 8.33A~11.66A | Output Power (W): 280 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y280ZE | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 7.14A~10A | Output Power (W): 280 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y360ZE | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 5.55A~7.77A | Output Power (W): 280 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y480ZE | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.16A~5.83A | Output Power (W): 280 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y540ZE | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 3.7A~5.18A | Output Power (W): 280 | No. Outputs: S | Case: Enclosed Case | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y120ZU | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 16.66A~23.33A | Output Power (W): 280 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y240ZU | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 8.33A~11.66A | Output Power (W): 280 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y280ZU | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 7.14A~10A | Output Power (W): 280 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y360ZU | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 5.55A~7.77A | Output Power (W): 280 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y480ZU | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 4.16A~5.83A | Output Power (W): 280 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3" x 1.18" | Get a Quote |
| PSIM280B-1Y540ZU | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 3.7A~5.18A | Output Power (W): 280 | No. Outputs: S | Case: U-Chassis | Size: 5" x 3" x 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Inhibit Function |
| PFC: | >0.95 @115VAC >0.90 @230VAC, Full Load |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24, 28, 36, 48, 54 |
| Output Current: | 17.5A, 16.66A, 8.75A, 8.33A, 7.5A, 7.14A, 5.83A, 5.55A, 4.375A, 4.16A, 3.88A, 3.7A |
| Output Power (Watts): | 200, 210, 280 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Type, AC Recycle |
| General | |
| Efficiency: | 91% |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | Open Frame ("O" Suffix): 12.35oz (350g) Enclosed ("E" Suffix): 17.64oz (500g) U-Chassis ("U" Suffix); 16.76oz (475g) |

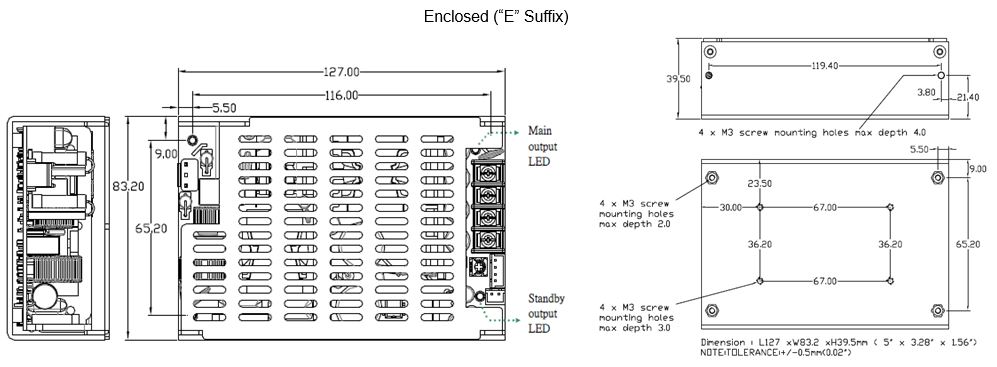

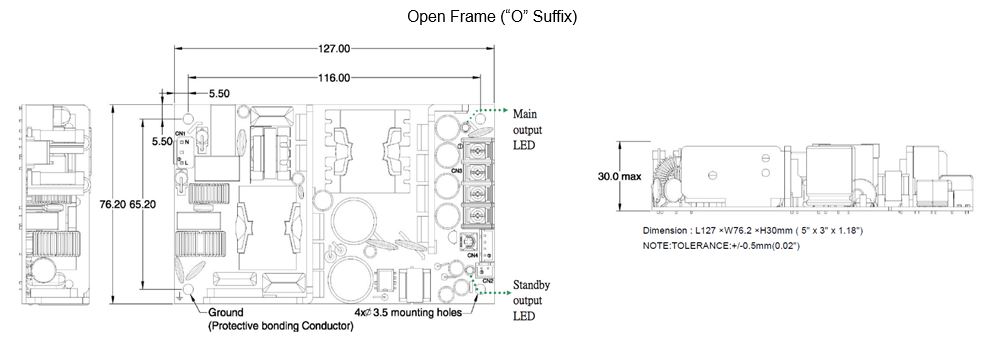

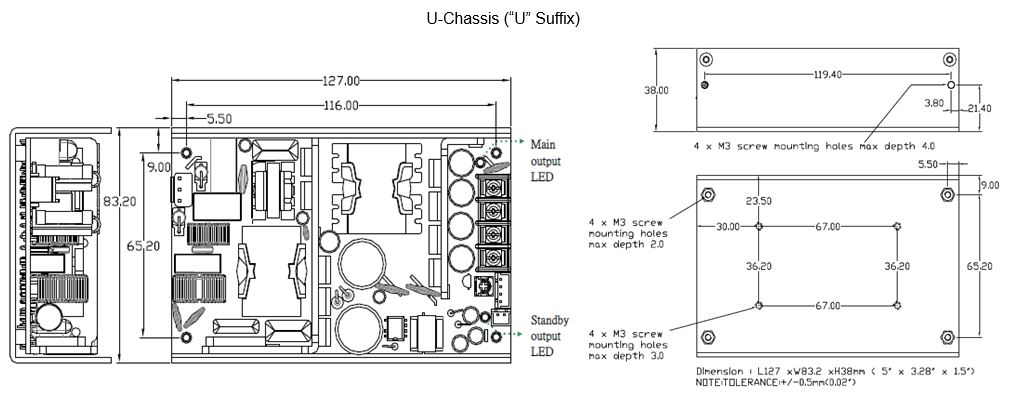

| Dimensions: | Open Frame ("O" Suffix): 5in x 3in x 1.18in (127mm x 76.2mm x 30mm) Enclosed ("E" Suffix): 5in x 3.28in x 1.56in (127mm x 83.2mm x 39.5mm) U-Chassis ("U" Suffix): 5in x 3.28in x 1.5in (127mm x 83.2mm x 38mm) |
| Notes & safety | |
| Notes: | (1) “Z” In model number indicates output connector options: Z=T (Terminal block type, pitch 8.25mm) Suitable for all voltages Z=M (Mini-fit type, pitch 4.2mm) Z=C (Connector type, pitch=3.69mm): Suitable for 24V and up. “X” in model number indicates package type: X=O (Open Frame) X=E (Enclosed) X=U (U-Chassis) (2) All models are equipped with 5Vsb & 12V fan outputs. a. 5Vsb meets ErP 0.5W @ No Load (3) All open frame models have total power 210W max. convection or 280W max. forced air cooling. (4) All enclosed and u-chassis models have total power 200W max. convection or 280W max. forced air cooling. (5) Ripple and noise are measured at oscilloscope 20MHz bandwidth by a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector. (6) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60601-1 3.1 Edition, UL/c-UL UL60950-1, UL/c-UL UL62368-1, EN60601-1 3.1 Edition, TUV EN60950-1, TUV EN62368-1, IEC EN60601-1 3.1 Edition, CB IEC60950-1, CB IEC 62368-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV EN60950-1, TUV EN62368-1 |
