PSIBU120
The PSIBU120 series of Class I AC/DC switching mode power supplies provides up to 120 Watts of continuous output power in a compact 5” x 3” x 1.32” open frame package. This series has single, dual, and triple output models with a wide input voltage range of 90~260VAC. These power supplies have active power factor correction, an internal EMI filter, and over load and over voltage protection. All models meet FCC Part-15 Class B and CISPR-22 Class B Emission Limits. This series also has UL/cUL (UL 60950-1:2nd Edition) and TUV/GS (EN60950-1:2nd Edition) safety approvals and meets new CE requirements. All models are RoHS compliant and have been 100% burn-in tested.
• Class I
• Active Power Factor Correction
• 5” x 3” x 1.32”Open Frame Package
• Single to Triple Outputs
• RoHS Compliant
• Wide Input Voltage Range: 90~260VAC, 47~63Hz
• Internal EMI Filter
• Over Voltage Protection and Over Load Protection
• Up to 120 Watts Output Power
• Power Fail Detect (Optional)
• 100% Burn-in Tested

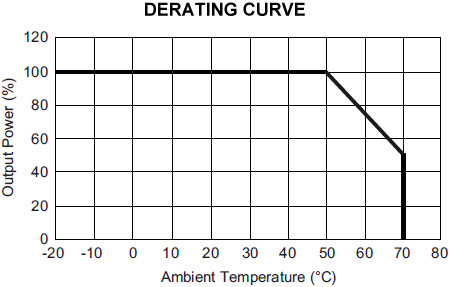

• Wide Operating Ambient Temperature (-20°C to +70°C)
• Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits
• UL/cUL (UL 60950-1:2nd Ed), TUV/GS (EN60950-1:2nd Ed), and CE Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSIBU120-204 | Input Voltage: 90~260 | Output Voltage: 3.3, 5 | Output Current: 15A, 6A | Output Power (W): 79.5 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-308 | Input Voltage: 90~260 | Output Voltage: 3.3, 5, -12 | Output Current: 15A, 6A, 1A | Output Power (W): 91.5 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-308-1 | Input Voltage: 90~260 | Output Voltage: 3.3, 5, -12 | Output Current: 15A, 6A, 1A | Output Power (W): 91.5 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-101 | Input Voltage: 90~260 | Output Voltage: 3~5 | Output Current: 22.00A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-102 | Input Voltage: 90~260 | Output Voltage: 5~6 | Output Current: 22.00A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-103 | Input Voltage: 90~260 | Output Voltage: 6~9 | Output Current: 19.16A | Output Power (W): 115 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-104 | Input Voltage: 90~260 | Output Voltage: 9~11 | Output Current: 13.33A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-105 | Input Voltage: 90~260 | Output Voltage: 11~13 | Output Current: 10.90A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-106 | Input Voltage: 90~260 | Output Voltage: 13~16 | Output Current: 9.23A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-107 | Input Voltage: 90~260 | Output Voltage: 16~21 | Output Current: 7.50A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-108 | Input Voltage: 90~260 | Output Voltage: 21~27 | Output Current: 5.71A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-109 | Input Voltage: 90~260 | Output Voltage: 27~33 | Output Current: 4.44A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-110 | Input Voltage: 90~260 | Output Voltage: 33~40 | Output Current: 3.63A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-111 | Input Voltage: 90~260 | Output Voltage: 40~50 | Output Current: 3.00A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-200 | Input Voltage: 90~260 | Output Voltage: 3.3, 12 | Output Current: 15A, 6A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-201 | Input Voltage: 90~260 | Output Voltage: 5, 12 | Output Current: 15A, 6A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-202 | Input Voltage: 90~260 | Output Voltage: 5, 15 | Output Current: 15A, 6A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-203 | Input Voltage: 90~260 | Output Voltage: 5, 24 | Output Current: 15A, 3.5A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-215 | Input Voltage: 90~260 | Output Voltage: 5, -24 | Output Current: 15A, 2A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-219 | Input Voltage: 90~260 | Output Voltage: 28, 5 | Output Current: 3.92A, 2A | Output Power (W): 120 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-300 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, -12 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-300-1 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, 12 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-301 | Input Voltage: 90~260 | Output Voltage: 5, 12, -5 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-301-1 | Input Voltage: 90~260 | Output Voltage: 5, 12, -5 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-302 | Input Voltage: 90~260 | Output Voltage: 5, 12, -12 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-302-1 | Input Voltage: 90~260 | Output Voltage: 5, 12, 12 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-303 | Input Voltage: 90~260 | Output Voltage: 5, 15, -15 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-303-1 | Input Voltage: 90~260 | Output Voltage: 5, 15, -15 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-304 | Input Voltage: 90~260 | Output Voltage: 5, 24, -24 | Output Current: 15A, 3.5A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-304-1 | Input Voltage: 90~260 | Output Voltage: 5, 24, -24 | Output Current: 15A, 3.5A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-305 | Input Voltage: 90~260 | Output Voltage: 5, 24, 12 | Output Current: 15A, 3.5A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-305-1 | Input Voltage: 90~260 | Output Voltage: 5, 24, 12 | Output Current: 15A, 3.5A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-306 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, -5 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-306-1 | Input Voltage: 90~260 | Output Voltage: 3.3, 12, 5 | Output Current: 15A, 6A, 0.8A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-307 | Input Voltage: 90~260 | Output Voltage: 5, 10, -10 | Output Current: 15A, 6A, 1A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| PSIBU120-307-1 | Input Voltage: 90~260 | Output Voltage: 5, 10, -10 | Output Current: 15A, 6A, 1A | Output Power (W): 120 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.32" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | 0.97 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~9, 9~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 3.3, 5, -5, 10, -10, 12, -12, 15, -15, 24, -24 |
| Output Current: | 22~20A, 22~18.33A, 19.16~12.77A, 13.33~10.9A, 10.9~9.23A, 9.23~7.5A, 7.5~5.71A, 5.71~4.44A, 4.44~3.63A, 3.63~3.0A, 3.0~2.4A, 21A, 22A, 21.8A, 17A, 18.5A, 19.3A, 5.92A |
| Output Power (Watts): | 79.5, 91.5, 100, 110, 115, 120 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 80% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 12.3~15.1oz (350~428g) |
| Dimensions: | 5.00" x 3.00" x 1.32" (127 x 76.2 x 33.6 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (Ex: 40~50 VDC); the customer must specify what they would like the output voltage set at. 2. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL (UL 60950-1:2nd Ed), TUV/GS (EN60950-1:2nd Ed), CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN60950-1:2nd Ed) |
