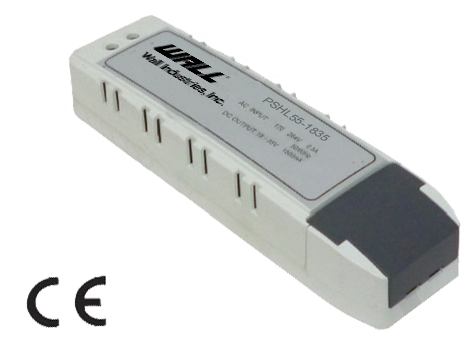

PSHL55
The PSHL55 series of LED drivers offers 55 watts of output power in a 6.42” x 1.79” x 1.24” package with plastic cover. This series consists of single output models with a wide input voltage range of 176~264VAC and built in active PFC. Each model in this series is suitable for indoor LED lighting applications with its high reliability and constant current limiting and IP20 design. This series has short circuit protection and UL1310 Class 2, UL8750, EN60950, and EN61347 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHL55-1835 | Input Voltage: 176~265 | Output Voltage: 18~35 | Output Current: 1.5A | Output Power (W): 55 | No. Outputs: S | Case: LED Driver | Size: 6.42" x 1.79" x 1.24" | Get a Quote |
| PSHL55-1224 | Input Voltage: 176~265 | Output Voltage: 12~24 | Output Current: 2.3A | Output Power (W): 55 | No. Outputs: S | Case: LED Driver | Size: 6.42" x 1.79" x 1.24" | Get a Quote |
| PSHL55-2448 | Input Voltage: 176~265 | Output Voltage: 24~48 | Output Current: 1.1A | Output Power (W): 55 | No. Outputs: S | Case: LED Driver | Size: 6.42" x 1.79" x 1.24" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | - |
| Input Voltage Range: | 176~265 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 18~35, 12~24, 24~48 |
| Output Current: | 1.1A, 1.5A, 2.3A |
| Output Power (Watts): | 55 |
| Short Circuit Protection: | Hiccup Mode, Automatic Recovery |
| General | |
| Efficiency: | Up to 85% |
| Environmental | |
| Operating Temperature: | -30 to +50ºC |
| Physical | |
| Weight: | - |
| Dimensions: | 6.42in x 1.79in x 1.24in (163mm x 45.5mm x 31.5mm) |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | Design Meets UL1310 Class 2, UL8750, EN60950, EN61347 |
