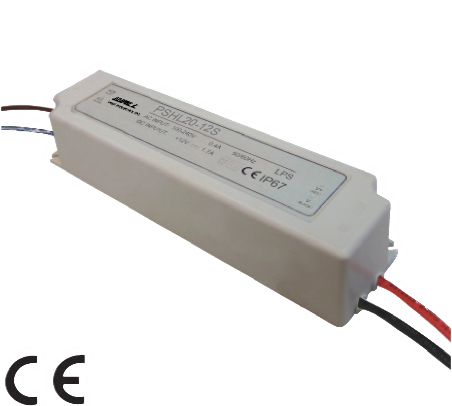

PSHL20
The PSHL20 series of LED drivers offers 20 watts of output power in a 5.83in x 1.57in x 1.18in package with plastic cover. This series consists of single output models with a universal AC Input range. Each model has built-in active PFC and constant current limiting current and has over load, over voltage, and short circuit protection. This series has UL 1310 class 2, UL 8750, EN60950, and EN61347 safety approvals and is suitable for outdoor LED lighting applications.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHL20-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1.66A | Output Power (W): 20 | No. Outputs: S | Case: LED Driver | Size: 5.83" x 1.57" x 1.18" | Get a Quote |
| PSHL20-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 0.84A | Output Power (W): 20 | No. Outputs: S | Case: LED Driver | Size: 5.83" x 1.57" x 1.18" | Get a Quote |
| PSHL20-36S | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 0.56A | Output Power (W): 20 | No. Outputs: S | Case: LED Driver | Size: 5.83" x 1.57" x 1.18" | Get a Quote |
| PSHL20-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.42A | Output Power (W): 20 | No. Outputs: S | Case: LED Driver | Size: 5.83" x 1.57" x 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | 0.9 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 12, 24, 36, 48 |
| Output Current: | 0.42A, 0.56A, 0.84A, 1.66A |
| Output Power (Watts): | 20 |
| Short Circuit Protection: | Hiccup Mode, Automatic Recovery |
| Over Voltage Protection: | 115-150% |
| General | |
| Efficiency: | Up to 84% |
| Environmental | |
| Operating Temperature: | -30 to +50ºC |
| Physical | |
| Weight: | - |
| Dimensions: | 5.83in x 1.57in x 1.18in |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL1310 Class 2, UL8750, EN60950, EN61347 |
