The PSHF60W series of AC/DC power supplies offers 60W of output power in a 6.30” x 3.86” x 1.54” enclosed case. This series consists of 5, 12, 15, 24, and 48VDC single output models with a universal input voltage range of 85~264VAC (120~370VDC). These supplies have a ±10% output adjustment range and are protected against short circuit, over load, and over voltage conditions. This series is RoHS compliant and has UL60950, GB4943, and EN60950 safety approvals.
|PSHF60W-SL-5||Input Voltage: 85~264||Output Voltage: 5||Output Current: 12.0A||Output Power (W): 60||No. Outputs: S||Case: Enclosed Case||Get a Quote|
|PSHF60W-SL-12||Input Voltage: 85~264||Output Voltage: 12||Output Current: 5.0A||Output Power (W): 60||No. Outputs: S||Case: Enclosed Case||Get a Quote|
|PSHF60W-SL-15||Input Voltage: 85~264||Output Voltage: 15||Output Current: 4.0A||Output Power (W): 60||No. Outputs: S||Case: Enclosed Case||Get a Quote|
|PSHF60W-SL-24||Input Voltage: 85~264||Output Voltage: 24||Output Current: 2.5A||Output Power (W): 60||No. Outputs: S||Case: Enclosed Case||Get a Quote|
|PSHF60W-SL-48||Input Voltage: 85~264||Output Voltage: 48||Output Current: 1.3A||Output Power (W): 62.4||No. Outputs: S||Case: Enclosed Case||Get a Quote|
|Input Voltage (Nominal):||115/230|
|Input Voltage Range:||85~264|
|Input Frequency:||47 - 63Hz|
|Output Voltage:||5, 12, 15, 24, 48|
|Output Current:||12.0A, 5.0A, 4.0A, 2.5A, 1.3A|
|Output Power (Watts):||60, 62.4|
|Short Circuit Protection:||Yes|
|Over Voltage Protection:||115-150%|
|Efficiency:||Up to 81%|
|Operating Temperature:||-10 to 50°C|
|Storage Temperature:||-20 to 85°C|
|Weight:||1.1 lbs (490g)|

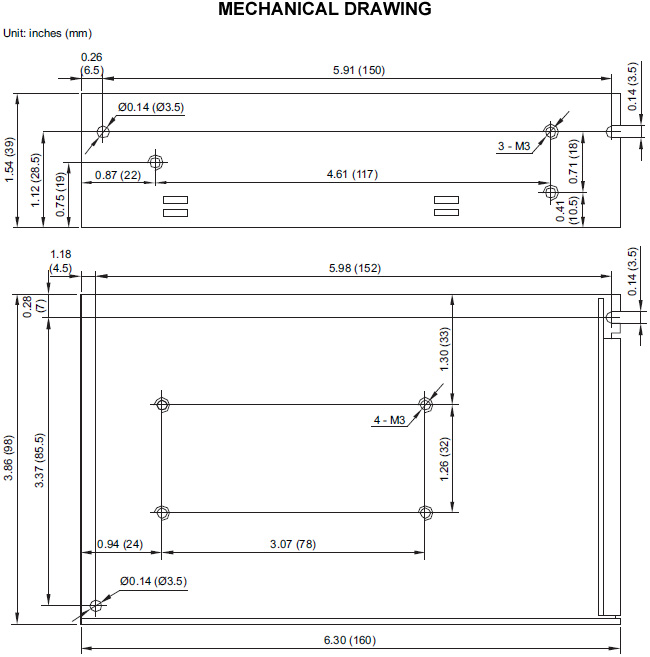

|Dimensions:||6.30" x 3.86" x 1.54" (160 x 98 x 39 mm)|
|Notes & safety|
|Notes:||(1) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
|Safety Approvals:||UL60950, GB4943, EN60950|
