PSHF150W
The PSHF150W series of AC/DC power supplies offers up to 156W of output power in a 7.83” x 4.33” x 1.97” enclosed case. This series consists of 5, 7.5, 9, 12, 24, 27 and 36VDC single output models with an input voltage range of 88~132 / 170~264VAC selectable by switch. These supplies have a ±10% output adjustment range and are protected against short circuit, over current, and over voltage conditions. This series is RoHS compliant and has UL60950, EN60950, GB4943, and CE approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHF150W-SF-5 | Input Voltage: 88~132 / 170~264 | Output Voltage: 5 | Output Current: 30.0A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSHF150W-SF-7.5 | Input Voltage: 88~132 / 170~264 | Output Voltage: 7.5 | Output Current: 20.0 A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSHF150W-SF-9 | Input Voltage: 88~132 / 170~264 | Output Voltage: 9 | Output Current: 16.7A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSHF150W-SF-12 | Input Voltage: 88~132 / 170~264 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSHF150W-SF-27 | Input Voltage: 88~132 / 170~264 | Output Voltage: 27 | Output Current: 5.6A | Output Power (W): 151 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSHF150W-SF-36 | Input Voltage: 88~132 / 170~264 | Output Voltage: 36 | Output Current: 4.2A | Output Power (W): 151 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSHF150W-SF-24 | Input Voltage: 88~132 / 170~264 | Output Voltage: 24 | Output Current: 6.5A | Output Power (W): 156 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 88~132/170~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5, 7.5, 9, 12, 24, 27, 36 |
| Output Current: | 30.0A, 20.0A, 16.7A, 12.5A, 6.5A, 5.6A, 4.2A |
| Output Power (Watts): | 150, 151, 156 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.8 lbs (800g) |

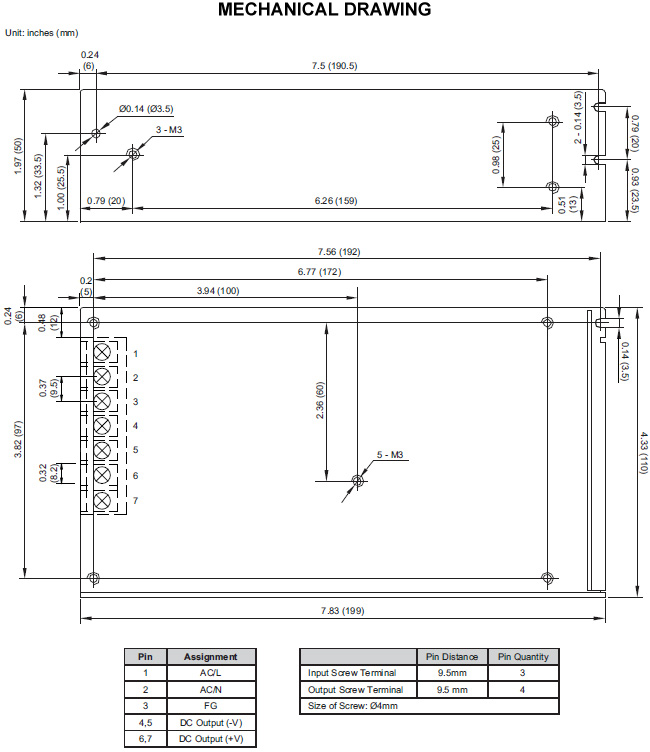

| Dimensions: | 7.83" x 4.33" x 1.97" (199 x 110 x 50 mm) |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, EN60950, GB4943 |
| RoHS Compliance: | Yes |
