PSGS3

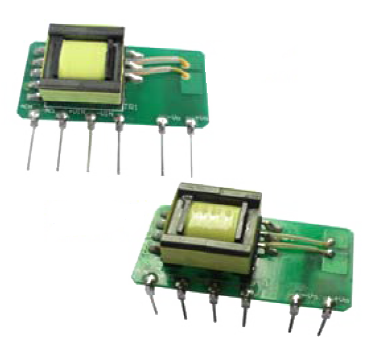

The PSGS3 series of AC/DC open frame converters offers up to 3 watts of output power in a 1.38” x 0.65” x 0.43” ultra-small package. This series consists of single output models with a universal input range of 85~264VAC and high efficiency. The models in this series have short circuit and over load protection, are RoHS compliant, and can either have a straight pin or 90º bended pin package type. This series also has UL60950-1 and IEC60950-1 safety approvals. Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

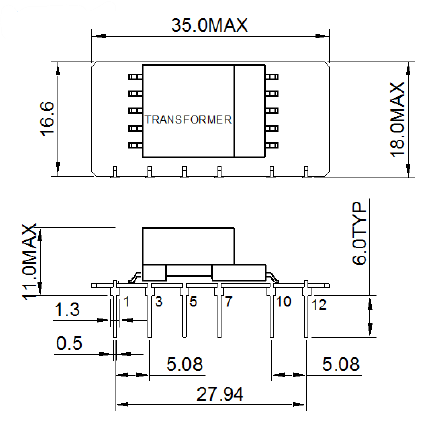

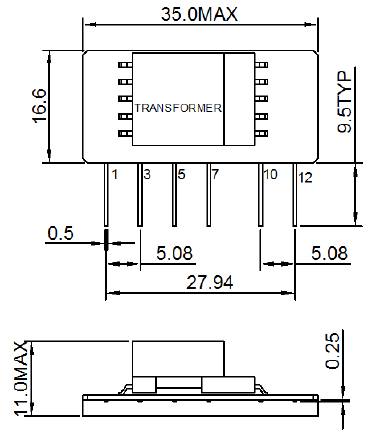

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSGS3-S03(-F) | Input Voltage: 85~305 | Output Voltage: 3.3 | Output Current: 500mA | Output Power (W): 1.65 | No. Outputs: S | Case: Open Frame | Size: 1.38" x 0.65 x 0.43" | Get a Quote |
| PSGS3-S05(-F) | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 500mA | Output Power (W): 2.5 | No. Outputs: S | Case: Open Frame | Size: 1.38" x 0.65 x 0.43" | Get a Quote |
| PSGS3-S09(-F) | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 333mA | Output Power (W): 3 | No. Outputs: S | Case: Open Frame | Size: 1.38" x 0.65 x 0.43" | Get a Quote |
| PSGS3-S12(-F) | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 250mA | Output Power (W): 3 | No. Outputs: S | Case: Open Frame | Size: 1.38" x 0.65 x 0.43" | Get a Quote |
| PSGS3-S15(-F) | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 200mA | Output Power (W): 3 | No. Outputs: S | Case: Open Frame | Size: 1.38" x 0.65 x 0.43" | Get a Quote |
| PSGS3-S24(-F) | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 125mA | Output Power (W): 3 | No. Outputs: S | Case: Open Frame | Size: 1.38" x 0.65 x 0.43" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 100/277 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 3.3V: ±8% 5~24V: ±5% |
| Output Current: | 125mA, 200mA, 250mA, 333mA, 500mA |
| Output Power (Watts): | 1.65, 2.5, 3 |
| Short Circuit Protection: | Recovers automatically after fault condition is removed |
| Over Voltage Protection: | Above 110% Rated Output Power |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 3KVac/5mA/5Sec |
| Environmental | |
| Operating Temperature: | -40 to +85°C |
| Storage Temperature: | -40 to 105°C |
| Physical | |
| Weight: | - |
| Dimensions: | 1.38in x 0.65in x 0.43in (35mm x 16.6mm x 11mm) |
| Notes & safety | |
| Notes: | 1. Straight pin is the standard package type. Add “-F” suffix for 90º bend pin type. Ex. PSGS3-S05-F 2. The product is able to work with 0%-10% load and with stable output. 3. Product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL62368-1, IEC62368-1 |
| RoHS Compliance: | Yes |
