PSGA30

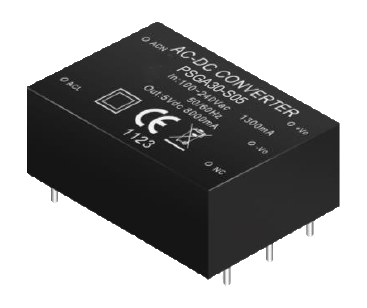

The PSGA30 series of AC/DC power modules offers up to 48W of single/dual output power in an ultra-compact 3.5” x 2.5” x 1.25” through hole package. This series consists of single and dual output models with a universal input of 90~264VAC. Each model in this series features a fully encapsulated plastic case, high efficiency, as well as protection against over load, over voltage, and short circuit conditions. PSGA30 is RoHS compliant and has EN62368-1 approval.

• Universal Input of 90~264VAC • Fully Encapsulated Plastic Case • High Efficiency • Cooling by Free Air Convection • Internal Input Filter • Over Load, Over Voltage and Short Circuit Protection • 3KV Isolation • RoHS Compliant • EN62368-1 Approval

Get a Quote Request a Sample Custom Solutions

Models
Specifications

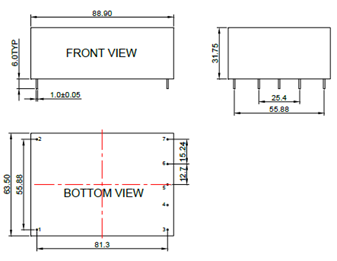

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSGA30-S03	Input Voltage: 90~264	Output Voltage: 3.3	Output Current: 8000mA	Output Power (W): 26.4	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D035	Input Voltage: 90~264	Output Voltage: 3, 5	Output Current: 5000mA, 2000mA	Output Power (W): 26.5	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S05	Input Voltage: 90~264	Output Voltage: 5	Output Current: 8000mA	Output Power (W): 40	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S06	Input Voltage: 90~264	Output Voltage: 6	Output Current: 6650mA	Output Power (W): 40	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S07	Input Voltage: 90~264	Output Voltage: 7	Output Current: 5700mA	Output Power (W): 40	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S08	Input Voltage: 90~264	Output Voltage: 8	Output Current: 5000mA	Output Power (W): 40	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S09	Input Voltage: 90~264	Output Voltage: 9	Output Current: 4400mA	Output Power (W): 40	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S10	Input Voltage: 90~264	Output Voltage: 10	Output Current: 4000mA	Output Power (W): 40	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D05	Input Voltage: 90~264	Output Voltage: 5, -5	Output Current: ±4000mA	Output Power (W): 40	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D512	Input Voltage: 90~264	Output Voltage: 5, 12	Output Current: 5000mA, 1250mA	Output Power (W): 40	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D515	Input Voltage: 90~264	Output Voltage: 5, 15	Output Current: 5000mA, 1000mA	Output Power (W): 40	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D524	Input Voltage: 90~264	Output Voltage: 5, 24	Output Current: 5000mA, 625mA	Output Power (W): 40	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S12	Input Voltage: 90~264	Output Voltage: 12	Output Current: 3500mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S13	Input Voltage: 90~264	Output Voltage: 13	Output Current: 3200mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S14	Input Voltage: 90~264	Output Voltage: 14	Output Current: 3000mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S15	Input Voltage: 90~264	Output Voltage: 15	Output Current: 2800mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S16	Input Voltage: 90~264	Output Voltage: 16	Output Current: 2625mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S18	Input Voltage: 90~264	Output Voltage: 18	Output Current: 2300mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S24	Input Voltage: 90~264	Output Voltage: 24	Output Current: 1750mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S27	Input Voltage: 90~264	Output Voltage: 27	Output Current: 1550mA	Output Power (W): 42	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D12	Input Voltage: 90~264	Output Voltage: 12, -12	Output Current: ±1750mA	Output Power (W): 42	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D15	Input Voltage: 90~264	Output Voltage: 15, -15	Output Current: ±1400mA	Output Power (W): 42	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-D24	Input Voltage: 90~264	Output Voltage: 24, -24	Output Current: ±875mA	Output Power (W): 42	No. Outputs: D	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S36	Input Voltage: 90~264	Output Voltage: 36	Output Current: 1200mA	Output Power (W): 43.2	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote
PSGA30-S48	Input Voltage: 90~264	Output Voltage: 48	Output Current: 1000mA	Output Power (W): 48	No. Outputs: S	Case: Through Hole	Size: 3.5" x 2.5" x 1.25"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	100/240
Input Voltage Range:	90~264
Output
Output Voltage:	3.3, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 24, 27, 36, 48, ±5, ±12, ±15, ±24
Voltage Accuracy:	3.3V to 9V Models: ±3 10V to 48V Models: ±2 Dual Output: ±5
Output Current:	625mA, 1000mA, 1200mA, 1250mA, 1550mA, 8000mA, 6650mA, 5700mA, 5000mA, 4400mA, 4000mA, 3500mA, 3200mA, 3000mA, 2800mA, 2625mA, 2300mA, 2000mA, 1750mA, ±4000mA, ±1750mA, ±1400mA, ±875mA
Output Power (Watts):	26.4, 26.5, 40, 42, 43.2, 48
Short Circuit Protection:	Recovers automatically after fault condition is removed
General
Efficiency:	Up to 88%
Environmental
Operating Temperature:	-20 to 70°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	11.82oz (335g)
Dimensions:	3.5in x 2.5in x 1.25in (88.9mm x 63.5mm x 31.75mm)
Notes & safety
Notes:	1. Ripple & Noise is measured by using 20MHz bandwidth measured with a 47uF paralleled with a high-frequency 0.47uF capacitor across each output by full load. *Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	EN62368-1
RoHS Compliance:	Yes
