PSEP1200U

The PSEP1200U series of open frame power supplies offers up to 200 watts of output power in a 5″ x 3.21″ x 1.77″ package. This series has a wide input voltage range of 90~264VAC and single, dual, triple, and quad outputs are available. The PSEP1200U series has high minimum efficiency of 85%, is RoHS compliant, and has over votlage, over current, and short circuit protection. It has UL/CUL, TUV, CB, CE, and FCC safety approvals and has been 100% burn-in and hi-pot tested. Please call factory for details.

• Wide Input Voltage Range of 90-264VAC • High Minimum Efficiency of 85% • RoHS Compliant • Over Voltage, Over Current and Short Circuit Protection • 100% Burn-In • 100% Hi-Pot Tested • Single, Dual, Triple, and Quad Outputs • UL/CUL, TUV, CB, CE, and FCC Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSEP11000500U Input Voltage: 90~264 Output Voltage: 5 Output Current: 20.00A Output Power (W): 100 No. Outputs: S Case: Open Frame Get a Quote
PSEP210005A0U Input Voltage: 90~264 Output Voltage: 5, 5 Output Current: 18.00A, 2A Output Power (W): 100 No. Outputs: D Case: Open Frame Get a Quote
PSEP11501200U Input Voltage: 90~264 Output Voltage: 12 Output Current: 12.50A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEP215012B0U Input Voltage: 90~264 Output Voltage: 12, -12 Output Current: 12.00A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP215012A0U Input Voltage: 90~264 Output Voltage: 12, 5 Output Current: 11.67A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP215012DAU Input Voltage: 90~264 Output Voltage: 12, 5 Output Current: 10.42A, 5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP315012C0U Input Voltage: 90~264 Output Voltage: 12, 5, -12 Output Current: 11.17A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP415012CAU Input Voltage: 90~264 Output Voltage: 12, 5, -12, 5 Output Current: 9.08A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEP417512CAU Input Voltage: 90~264 Output Voltage: 12, 5, -12, 5 Output Current: 11.17A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEP315012AAU Input Voltage: 90~264 Output Voltage: 12, 5, 5 Output Current: 0.958A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP11501900U Input Voltage: 90~264 Output Voltage: 19 Output Current: 7.89A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEP215019B0U Input Voltage: 90~264 Output Voltage: 19, -12 Output Current: 7.58A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP215019A0U Input Voltage: 90~264 Output Voltage: 19, 5 Output Current: 7.37A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP215019DAU Input Voltage: 90~264 Output Voltage: 19, 5 Output Current: 6.58A, 5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP315019C0U Input Voltage: 90~264 Output Voltage: 19, 5, -12 Output Current: 7.05A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP415019CAU Input Voltage: 90~264 Output Voltage: 19, 5, -12, 5 Output Current: 5.74A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEP415019CBU Input Voltage: 90~264 Output Voltage: 19, 5, -12, 12 Output Current: 3.89A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEP315019AAU Input Voltage: 90~264 Output Voltage: 19, 5, 5 Output Current: 6.05A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP315019ABU Input Voltage: 90~264 Output Voltage: 19, 5, 12 Output Current: 4.21A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP215019DBU Input Voltage: 90~264 Output Voltage: 19, 12 Output Current: 4.74A, 5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP11502400U Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.25A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEP215024B0U Input Voltage: 90~264 Output Voltage: 24, -12 Output Current: 6.00A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP215024DAU Input Voltage: 90~264 Output Voltage: 24, 5 Output Current: 5.21A, 5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP15024A0U Input Voltage: 90~264 Output Voltage: 24, 5 Output Current: 5.83A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP317524C0U Input Voltage: 90~264 Output Voltage: 24, 5, -12 Output Current: 6.63A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP415024CAU Input Voltage: 90~264 Output Voltage: 24, 5, -12, 5 Output Current: 4.54A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEP415024CBU Input Voltage: 90~264 Output Voltage: 24, 5, -12, 12 Output Current: 3.08A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEP315024AAU Input Voltage: 90~264 Output Voltage: 24, 5, 5 Output Current: 4.79A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP315024ABU Input Voltage: 90~264 Output Voltage: 24, 5, 12 Output Current: 3.33A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP317524ABU Input Voltage: 90~264 Output Voltage: 24, 5, 12 Output Current: 4.38A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP215024DBU Input Voltage: 90~264 Output Voltage: 24, 12 Output Current: 3.75A, 5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP11503600U Input Voltage: 90~264 Output Voltage: 25 Output Current: 4.17A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEP215036B0U Input Voltage: 90~264 Output Voltage: 36, -12 Output Current: 4.00A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP15036A0U Input Voltage: 90~264 Output Voltage: 36, 5 Output Current: 3.89A, 5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP315036C0U Input Voltage: 90~264 Output Voltage: 36, 5, -12 Output Current: 3.72A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP11540800U Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.13A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEP215048B0U Input Voltage: 90~264 Output Voltage: 48, -12 Output Current: 3.00A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP15048A0U Input Voltage: 90~264 Output Voltage: 48, 5 Output Current: 2.92A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP315048C0U Input Voltage: 90~264 Output Voltage: 48, 5, -12 Output Current: 2.79A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP11505600U Input Voltage: 90~264 Output Voltage: 56 Output Current: 2.68A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEP215056B0U Input Voltage: 90~264 Output Voltage: 56, -12 Output Current: 2.57A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP215056A0U Input Voltage: 90~264 Output Voltage: 56, 5 Output Current: 2.50A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEP315056C0U Input Voltage: 90~264 Output Voltage: 56, 5, -12 Output Current: 2.39A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEP317512C0U Input Voltage: 90~264 Output Voltage: 12, 5, -12 Output Current: 13.25A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP317512AAU Input Voltage: 90~264 Output Voltage: 12, 5, 5 Output Current: 11.67A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP317519C0U Input Voltage: 90~264 Output Voltage: 19, 5, -12 Output Current: 8.37A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP417519CAU Input Voltage: 90~264 Output Voltage: 19, 5, -12, 5 Output Current: 7.5A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEP417519CBU Input Voltage: 90~264 Output Voltage: 19, 5, -12, 12 Output Current: 5.21A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEP317519AAU Input Voltage: 90~264 Output Voltage: 19, 5, 5 Output Current: 7.37A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP317519ABU Input Voltage: 90~264 Output Voltage: 19, 5, 12 Output Current: 5.53A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP315024C0U Input Voltage: 90~264 Output Voltage: 24, 5, -12 Output Current: 5.58A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP417524CAU Input Voltage: 90~264 Output Voltage: 24, 5, -12, 5 Output Current: 5.58A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEP417524CBU Input Voltage: 90~264 Output Voltage: 24, 5, -12, 12 Output Current: 4.13A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEP317524AAU Input Voltage: 90~264 Output Voltage: 24, 5, 5 Output Current: 5.83A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP317536C0U Input Voltage: 90~264 Output Voltage: 36, 5, -12 Output Current: 4.42A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP317548C0U Input Voltage: 90~264 Output Voltage: 48, 5, -12 Output Current: 3.31A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSP317556C0U Input Voltage: 90~264 Output Voltage: 56, 5, -12 Output Current: 2.84A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEP11801200U Input Voltage: 90~264 Output Voltage: 12 Output Current: 15.00A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEP218012B0U Input Voltage: 90~264 Output Voltage: 12, -12 Output Current: 14.50A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218012DAU Input Voltage: 90~264 Output Voltage: 12, 5 Output Current: 12.92A, 5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218012A0U Input Voltage: 90~264 Output Voltage: 12, 5 Output Current: 14.17A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP11801900U Input Voltage: 90~264 Output Voltage: 19 Output Current: 9.47A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEP218019DAU Input Voltage: 90~264 Output Voltage: 19, 5 Output Current: 8.16A, 5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218019A0U Input Voltage: 90~264 Output Voltage: 19, 5 Output Current: 8.95A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218019DBU Input Voltage: 90~264 Output Voltage: 19, 12 Output Current: 6.32A, 5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218019B0U Input Voltage: 90~264 Output Voltage: 19, 12 Output Current: 9.16A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP11802400U Input Voltage: 90~264 Output Voltage: 24 Output Current: 7.50A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEP218024B0U Input Voltage: 90~264 Output Voltage: 24, -12 Output Current: 7.25A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218024DAU Input Voltage: 90~264 Output Voltage: 24, 5 Output Current: 6.46A, 5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP18024A0U Input Voltage: 90~264 Output Voltage: 24, 5 Output Current: 7.08A, 5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP218024DBU Input Voltage: 90~264 Output Voltage: 24, 12 Output Current: 5.00A, 5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP11803600U Input Voltage: 90~264 Output Voltage: 36 Output Current: 5.00A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEP218036B0U Input Voltage: 90~264 Output Voltage: 36, -12 Output Current: 4.83A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP18036A0U Input Voltage: 90~264 Output Voltage: 36, 5 Output Current: 4.72A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP11804800U Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.75A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEP218048B0U Input Voltage: 90~264 Output Voltage: 48, -12 Output Current: 3.63A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP18048A0U Input Voltage: 90~264 Output Voltage: 48, 5 Output Current: 3.54A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP11805600U Input Voltage: 90~264 Output Voltage: 56 Output Current: 3.21A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEP218056B0U Input Voltage: 90~264 Output Voltage: 56, -12 Output Current: 3.11A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP18056A0U Input Voltage: 90~264 Output Voltage: 56, 5 Output Current: 2.50A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEP12001900U Input Voltage: 90~264 Output Voltage: 19 Output Current: 10.53A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEP12002400U Input Voltage: 90~264 Output Voltage: 24 Output Current: 8.33A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEP12003600U Input Voltage: 90~264 Output Voltage: 36 Output Current: 5.56A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEP12004800U Input Voltage: 90~264 Output Voltage: 48 Output Current: 4.17A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEP12005600U Input Voltage: 90~264 Output Voltage: 56 Output Current: 3.57A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Output
Output Voltage: 5, 12, -12, 19, 24, 36, 48, 56
Output Current: 20A, 18A, 15A, 12.50A, 14.50A, 12.92A, 14.17A, 2A, 0.5A, 11.67A, 10.42A, 13.25A, 11.17A, 9.08A, 5A, 9.58A, 10.53A, 9.47A, 7.89A, 7.58A, 7.37A, 8.16A, 6.58A, 8.95A, 8.37A, 7.05A, 5.74A, 5.21A, 3.89A, 6.05A, 4.21A, 5.53A, 6.32A, 9.16A, 4.74A, 6.25A, 8.33A, 7.50A, 7.25A, 6A, 6.46A, 5.21A, 5.83A, 7.08A, 6.63A, 5.58A, 4.54A, 5.58A, 4.13A, 3.08A, 4.79A, 3.33A, 3.75A, 4.17A, 5.56A, 4A, 4.83A, 4.72A, 4.42A, 3.72A, 3.13A, 3.63A, 3A, 3.54A, 2.92A, 3.31A, 2.79A, 3.21A, 3.57A, 2.68A, 3.11A, 2.57A, 2.50A, 2.39A, 2.84A
Output Power (Watts): 100, 150, 175, 180, 200
Short Circuit Protection: Latch Off or Automatic Recovery
Over Voltage Protection: Latch Off or Automatic Recovery
General
Efficiency: ≥85%
Environmental
Operating Temperature: 0 - 50°C
Storage Temperature: -20-85°C
Physical
Weight: 15.87 (450g)

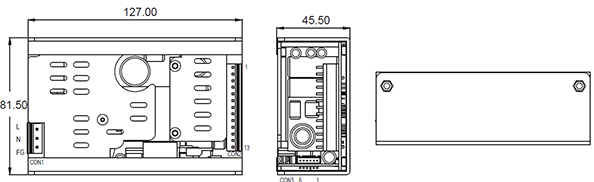

Dimensions: 5in x 3.21in x 1.77in (127mm x 81.5mm x 45.5mm)
Notes & safety
Notes: (1) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
(2) Efficiency depends on models.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/CUL, TUV, CB, CE, FCC
RoHS Compliance: Yes
TUV Efficiency Level: TUV
