PSEP1120
The PSEP1120 series of open frame power supplies offers up to 120 watts of output power in a 5″ x 3″ x 1.42″ case. This series consists of single, dual, triple, and quad output models with an input range of 90~264VAC. These supplies are protected against over voltage, over current, and short circuit conditions. All models have UL/CUL, CB, CE, and FCC safety approvals and are RoHS compliant.
• High Efficiency
• RoHS Compliant
• Over Voltage, Over Current, and Short Circuit Protection
• 500pc MOQ
• 100% Burn-In
• 100% Hi-Pot Tested
• Single, Dual, Triple, and Quad Outputs
• UL/CUL, CB, CE, FCC Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSEP10800500 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 16A | Output Power (W): 80 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP10801800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 4.44A | Output Power (W): 80 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP208605B0 | Input Voltage: 90~264 | Output Voltage: 5, -12 | Output Current: 16A, 0.5A | Output Power (W): 86 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP209005A0 | Input Voltage: 90~264 | Output Voltage: 5, 5 | Output Current: 16A, 2A | Output Power (W): 90 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP309005C0 | Input Voltage: 90~264 | Output Voltage: 5, 5, -12 | Output Current: 14.80A, 2A, 0.5A | Output Power (W): 90 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP10901800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 5A | Output Power (W): 90 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11001200 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11001800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 5.56A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11001900 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 5.26A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11002400 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.17A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11003600 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 2.78A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11004800 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.08A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP210612B0 | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 8.33A, 0.5A | Output Power (W): 106 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211012A0 | Input Voltage: 90~264 | Output Voltage: 12, 5 | Output Current: 8.33A, 2A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311012C0 | Input Voltage: 90~264 | Output Voltage: 12, 5, -12 | Output Current: 7.83A, 2A. 0.5A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411012CA | Input Voltage: 90~264 | Output Voltage: 12, 5, -12, 5 | Output Current: 7.00A, 2A, 0.5A, 2A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411012CB | Input Voltage: 90~264 | Output Voltage: 12, 5, -12, 5 | Output Current: 6.58A, 2A, 0.5A, 3A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311012AA | Input Voltage: 90~264 | Output Voltage: 12, 5, 5 | Output Current: 7.5A, 2A, 2A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311012AB | Input Voltage: 90~264 | Output Voltage: 12, 5, 5 | Output Current: 7.08A, 2A, 3A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11101800 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 6.11A | Output Power (W): 110 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211019B0 | Input Voltage: 90~264 | Output Voltage: 19, -12 | Output Current: 5.47A, 0.5A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211019A0 | Input Voltage: 90~264 | Output Voltage: 19, 5 | Output Current: 5.26A, 2A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311019C0 | Input Voltage: 90~264 | Output Voltage: 19, 5, -12 | Output Current: 4.95A, 2A, 0.5A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411019CA | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 5 | Output Current: 4.42A, 2A, 0.5A, 2A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411019CB | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 5 | Output Current: 4.16A, 2A, 0.5A, 3A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411019CD | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 12 | Output Current: 3.05A, 2A, 0.5A, 3A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411019CC | Input Voltage: 90~264 | Output Voltage: 19, 5, -12, 12 | Output Current: 3.68A, 2A, 0.5A, 2A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311019AA | Input Voltage: 90~264 | Output Voltage: 19, 5, 5 | Output Current: 4.74A, 2A, 2A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311019AB | Input Voltage: 90~264 | Output Voltage: 19, 5, 5 | Output Current: 4.47A, 2A, 3A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311019AC | Input Voltage: 90~264 | Output Voltage: 19, 5, 12 | Output Current: 4.00A, 2A, 2A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311019AD | Input Voltage: 90~264 | Output Voltage: 19, 5, 12 | Output Current: 3.37A, 2A, 3A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211024B0 | Input Voltage: 90~264 | Output Voltage: 24, -12 | Output Current: 4.33A, 0.5A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211024A0 | Input Voltage: 90~264 | Output Voltage: 24, 5 | Output Current: 4.17A, 2A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311024C0 | Input Voltage: 90~264 | Output Voltage: 24, 5, -12 | Output Current: 3.92A, 2A, 0.5A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411024CA | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 5 | Output Current: 3.50A, 2A, 0.5A, 2A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411024CB | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 5 | Output Current: 3.29A, 2A, 0.5A, 3A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411024CD | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 12 | Output Current: 2.42A, 2A, 0.5A, 3A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP411024CC | Input Voltage: 90~264 | Output Voltage: 24, 5, -12, 12 | Output Current: 2.92A, 2A, 0.5A, 2A | Output Power (W): 110 | No. Outputs: M | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11024AB | Input Voltage: 90~264 | Output Voltage: 24, 5, 5 | Output Current: 3.54A, 2A, 3A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311024AA | Input Voltage: 90~264 | Output Voltage: 24, 5, 5 | Output Current: 3.75A, 2A, 2A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311024AD | Input Voltage: 90~264 | Output Voltage: 24, 5, 12 | Output Current: 2.67A, 2A, 2A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311024AC | Input Voltage: 90~264 | Output Voltage: 24, 5, 12 | Output Current: 3.17A, 2A, 2A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211036B0 | Input Voltage: 90~264 | Output Voltage: 36, -12 | Output Current: 2.89A, 0.5A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211036A0 | Input Voltage: 90~264 | Output Voltage: 36, 5 | Output Current: 2.78A, 2A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311036C0 | Input Voltage: 90~264 | Output Voltage: 36, 5, -12 | Output Current: 2.61A, 2A, 0.5A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211048B0 | Input Voltage: 90~264 | Output Voltage: 48, -12 | Output Current: 2.17A, 0.5A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP211048A0 | Input Voltage: 90~264 | Output Voltage: 48, 5 | Output Current: 2.08A, 2A | Output Power (W): 110 | No. Outputs: D | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP311048C0 | Input Voltage: 90~264 | Output Voltage: 48, 5, -12 | Output Current: 1.96A, 2A, 0.5A | Output Power (W): 110 | No. Outputs: T | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11201900 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 6.32A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11202400 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 5A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PSEP11203600 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 3.33A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| PESP11204800 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.5A | Output Power (W): 120 | No. Outputs: S | Case: Open Frame | Size: 5" x 3" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Output | |
| Output Voltage: | 5, 12, -12, 18, 19, 24, 36, 48 |
| Output Current: | 16A, 0.5A, 2A, 14.80A, 8.33A, 7.83A, 7.00A, 6.58A, 7.5A, 3A, 7.08A, 5A, 6.11A, 4.44A, 5.56A, 5.26A, 6.23A, 5.47A, 4.95A, 4.42A, 4.16A, 3.05A, 3.68A, 4.74A, 4.47A, 4A, 3.37A, 4.17A, 4.33A, 3.92A, 3.50A, 3.29A, 2.42A, 2.92A, 3.54A, 3.75A, 2.67A, 3.17A, 2.78A, 3.33A, 2.89A, 2.61A, 2.08A, 2.5A, 2.17A, 1.96 |
| Output Power (Watts): | 80, 86, 90, 100, 106, 110, 120 |
| Short Circuit Protection: | Latch Off or Automatic Recovery |
| Over Voltage Protection: | Latch Off or Automatic Recovery |
| General | |
| Efficiency: | ≤80-87% |
| Environmental | |
| Operating Temperature: | 40 - 50°C |
| Storage Temperature: | -20-85°C |
| Physical | |
| Weight: | 15.87oz (450g) |

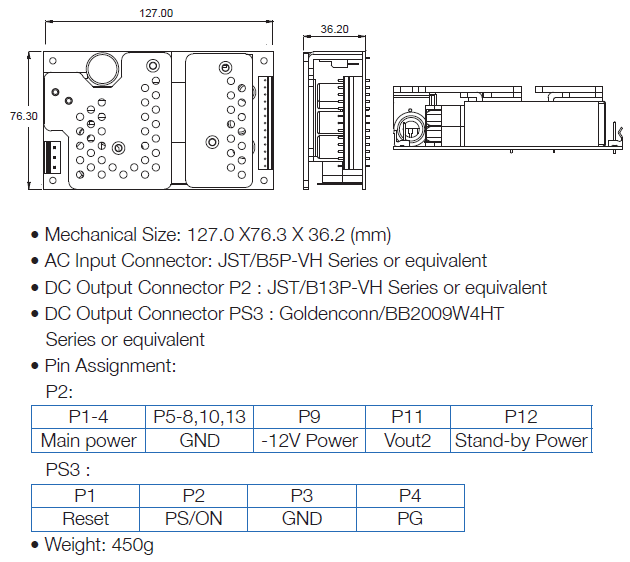

| Dimensions: | 5in x 3in x 1.42in (127mm x 76.3mm x 36.2mm) |
| Notes & safety | |
| Notes: | (1) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. (2) Efficiency depends on models. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) Max. Power (W) ≥Vo x Io (5) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/CUL, CB, CE, FCC |
| RoHS Compliance: | Yes |
