PSDRHF150

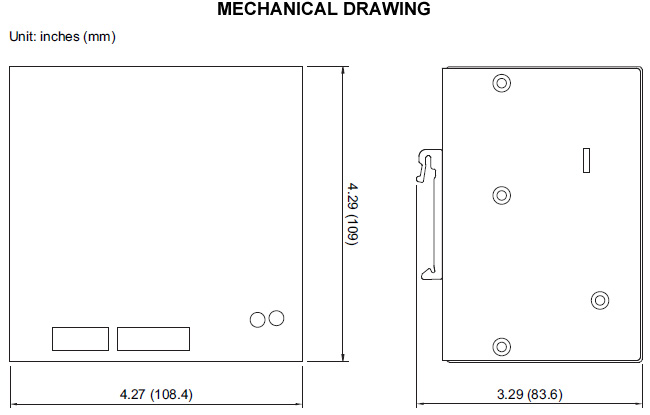

The PSDRHF150 series of DIN rail AC/DC power supplies offers up to 152W of output power in a 4.27” x 3.29” x 4.29” package. This series consists of 12, 13.8, 15, 24, and 48VDC single output models with an input voltage range of 85~132VAC or 170~264VAC (selectable by jumper which is set at factory). These supplies have a ±10% output adjustment range and are protected against short circuit, over current, and over voltage conditions. This series is RoHS compliant and has UL60950, UL508, EN60950, and CE approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDRHF150W-48A | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 3.1 A | Output Power (W): 148.8 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-48B | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 3.1A | Output Power (W): 148.8 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-12A | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 12.5 A | Output Power (W): 150 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-15A | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-12B | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-15B | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-24A | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 6.3 A | Output Power (W): 151.2 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-24B | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 6.3A | Output Power (W): 151.2 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-13.8A | Input Voltage: 85~264 | Output Voltage: 13.8 | Output Current: 11A | Output Power (W): 151.8 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| PSDRHF150W-13.8B | Input Voltage: 85~264 | Output Voltage: 13.8 | Output Current: 11A | Output Power (W): 151.8 | No. Outputs: S | Case: DIN Rail | Size: 7.83" x 4.33" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 12, 13.8, 15, 24, 48 |
| Output Current: | 12.5A, 11A, 10A, 6.3A, 3.1A |
| Output Power (Watts): | 150, 151.8, 151.2, 148.8 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 23.6oz (670g) |
| Dimensions: | 7.83" x 4.33" x 1.97" (199 x 110 x 50 mm) |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, UL508, EN60950, CE |
| RoHS Compliance: | Yes |
