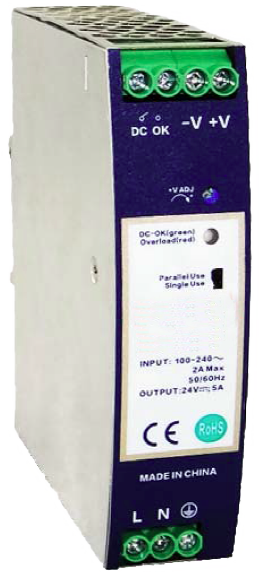

The PSDG-120 series of AC/DC DIN Rail power supply offers 120 watts of output power in a slim 4.69” x 1.26” x 4.88” package. This series consists of single output models with a universal AC input range of 85~264VAC. There are many built-in functions for this series including active PFC, current sharing function, current limiting circuit, and DC OK relay contact. Each model in this series has excellent partial load efficiency as well as over voltage, over load, short circuit, and over temperature protection. This series has UL508, UL60950, and EN60950 safety approvals and has been 100% full load burn-in tested. Please call factory for order details.

• Universal AC Input Range of 85~264VAC • Support 1+1 or N+1 Redundant System (Suggested to use Redundancy Modules) • Built-In Active PFC • High Efficiency up to 92% • Built-In Current Sharing Function • Built-In Current Limiting Circuit • 150% (180W) Peak Load Capacity • Excellent Partial Load Efficiency • 100% Full Load Burn-In Test • Over Voltage, Over Load, Short Circuit, and Over Temperature Protection • Easy Fuse Tripping due to High Over Load Current • Built-In DC OK Relay Contact • 10)% Full Load Burn-In Test • Can be Installed on TS-35/7.5 or TS-35/15 • UL508, UL60950, and EN60950 Safety Approvals
Power (W)
Case Size
PSDG-120-12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 10A Output Power (W): 120 No. Outputs: S Case: DIN Rail Size: 4.69" x 1.26" x 4.88" Get a Quote
PSDG-120-24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 5A Output Power (W): 120 No. Outputs: S Case: DIN Rail Size: 4.69" x 1.26" x 4.88" Get a Quote
PSDG-120-48 Input Voltage: 80~264 Output Voltage: 48 Output Current: 2.5A Output Power (W): 120 No. Outputs: S Case: DIN Rail Size: 4.69" x 1.26" x 4.88" Get a Quote
Specification Value
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264VAC
PFC: @100VAC: 0.99
@230VAC: 0.95
Input Frequency: 47 to 63Hz
Output Voltage: 12, 24, 48
Voltage Accuracy: ±1.0%
Output Current: 10A, 5A, 2.5A
Output Power (Watts): 120
Short Circuit Protection: Long-Term Mode, Automatic Recovery
Over Voltage Protection: Hiccup Mode, Automatic Recovery
Thermal Protection: 95 to 105ºC
Efficiency: Up to 92%
Operating Temperature: -25 to 70ºC
Storage Temperature: -40 to 85ºC
Weight: 22.70oz (643.53g)

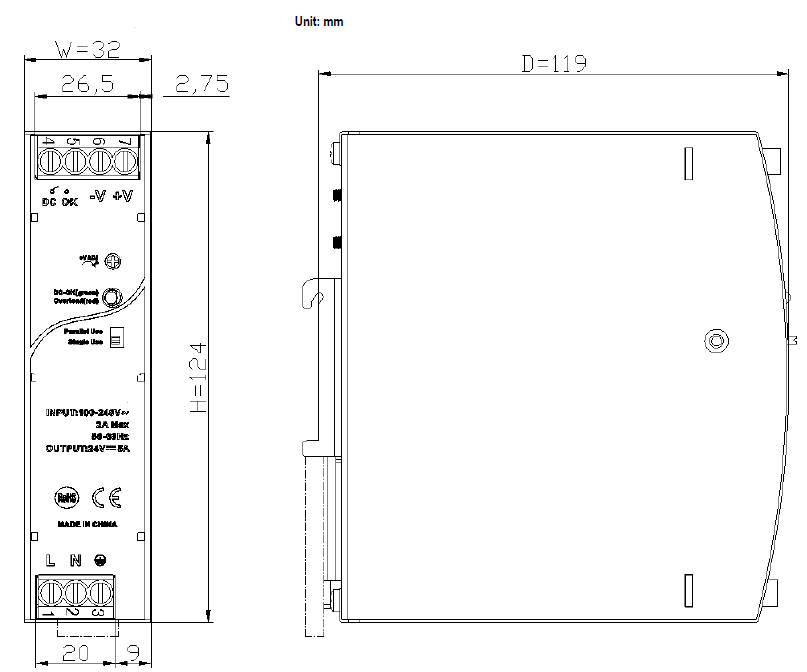

Dimensions: 4.69in x 1.26in x 4.88in
Notes & safety
Notes: 1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 10uF parallel capacitor.
2. Power supply is considered as a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
3. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL508, UL60950, EN60950
RoHS Compliance: Yes
