PSATCN

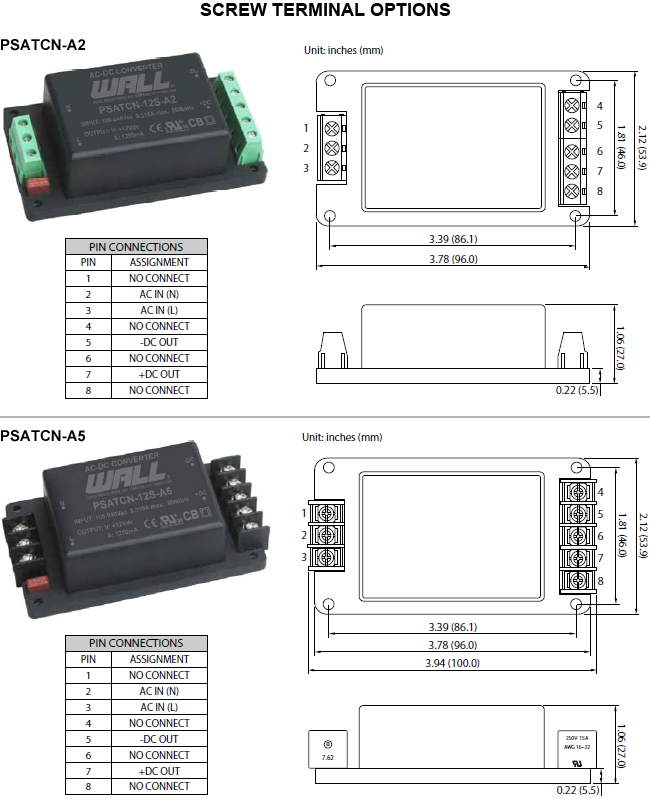

The PSATCN series of AC/DC power supplies provides 15 watts of output power in a 2.52” x 1.77” x 0.85” encapsulated PCB mountable package. This series consists of 5V, 12V, 15V, and 24V single output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -40°C to +70°C operating temperature range, and 4000VAC I/O isolation. This series is also protected against over power, over voltage, and short circuit conditions. The PSATCN series has two types of screw terminal mechanical options available. All models are RoHS compliant and have UL/cUL, CE, and CB safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSATCN-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3000mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.53" x 1.78" x 0.85" | Get a Quote |
| PSATCN-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.53" x 1.78" x 0.85" | Get a Quote |
| PSATCN-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.53" x 1.78" x 0.85" | Get a Quote |
| PSATCN-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.53" x 1.78" x 0.85" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 3000mA, 1250mA, 1000mA, 625mA |
| Output Power (Watts): | 15 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 3.25oz (92g) |

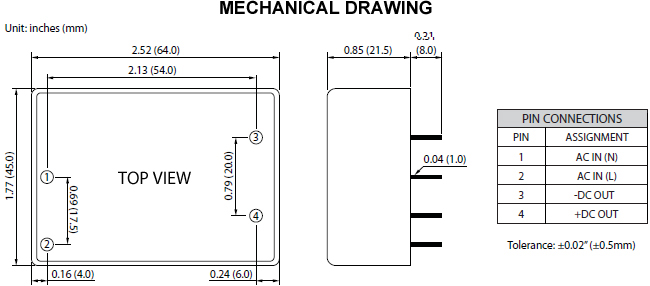

| Dimensions: | 2.53" x 1.78" x 0.85" (64.3 x 45.1 x 21.7 mm) |
| Case Material: | Plastic Resin with Fiberglass |
| Notes & safety | |
| Notes: | NOTES 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 2. It’s necessary to add Varistor 14S471K at L/N input side in parallel. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE |
| RoHS Compliance: | Yes |
