PSAQF240

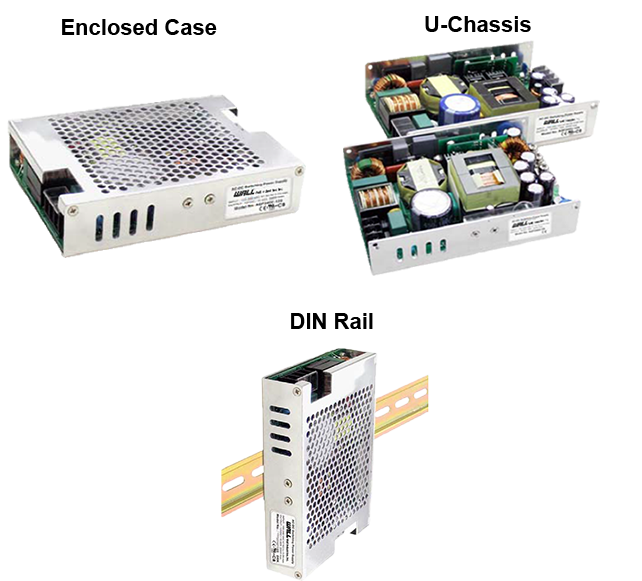

The PSAQF240 series of AC/DC switching power supplies offers up to 240W of output power. All models have a single output and a universal input voltage range of 90~264VAC (120~370VDC). Some features include 4000VAC I/O isolation, PFC function, and high efficiency. All models in this series are RoHS compliant and have CE safety approvals. Every model except the U-Chassis type 5V model also have UL60950 and CB approvals. All models are protected against short circuit, over power, and over voltage conditions. Models are available in U-chassis (type U), enclosed case (type C), or DIN Rail designs.

• Universal Input Range: 90~264VAC (120~370VDC) • PFC Function • High Efficiency • RoHS Compliant Design • 4000VAC I/O Isolation • Short Circuit, Over Power, & Over Voltage Protection • CE Safety Approval for All Models • UL60950 & CB Safety Approvals for all Models Except U-Type 5V Models • Meets EN55022 Class B • U-Chassis, Enclosed or DIN Rail Case Available

Get a Quote Request a Sample Custom Solutions

Models
Specifications

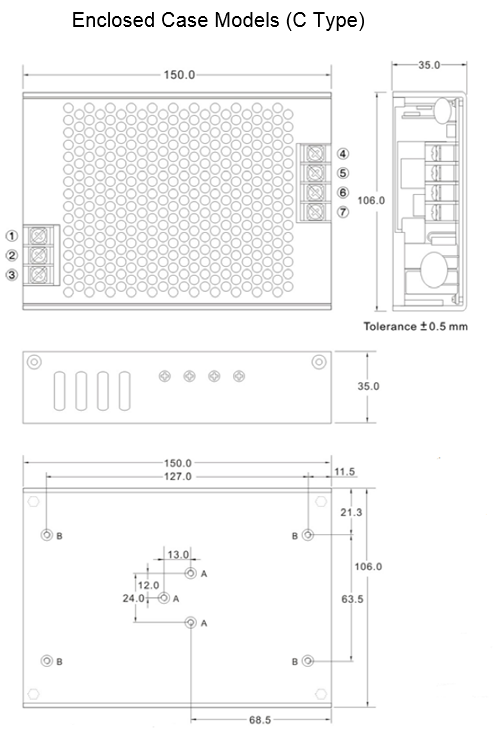

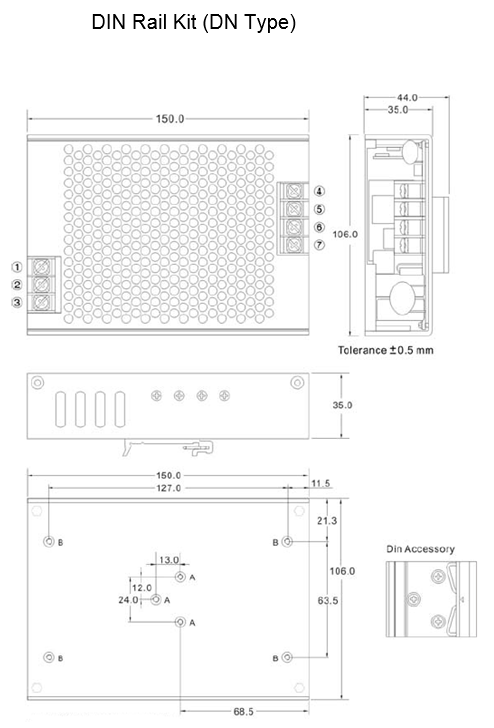

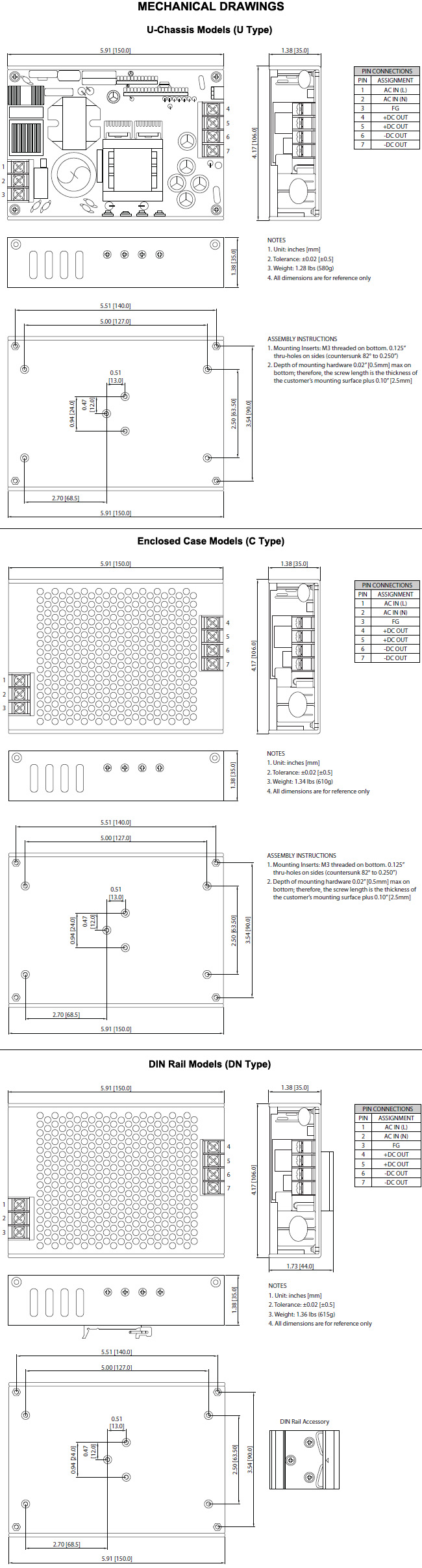

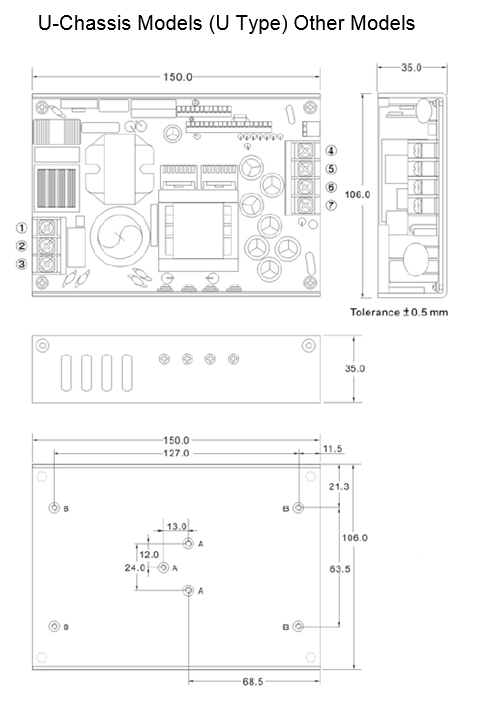

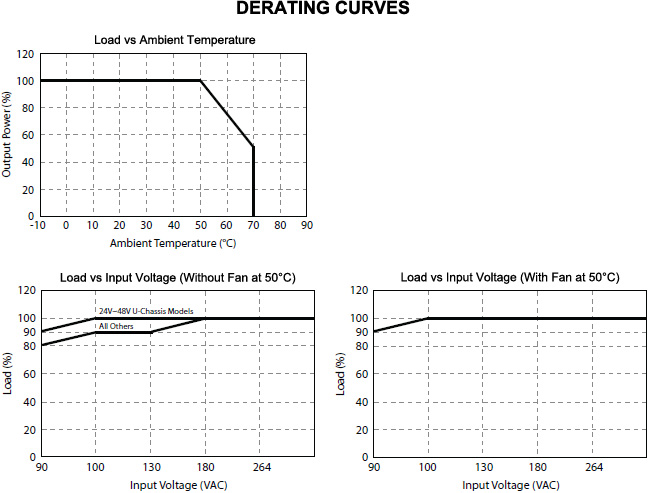

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSAQF240U-5S	Input Voltage: 90~264	Output Voltage: 5	Output Current: 36A	Output Power (W): 180	No. Outputs: S	Case: U-Chassis	Size: 6” x 4.18” x 1.46”	Get a Quote
PSAQF240DN-12S	Input Voltage: 90~264	Output Voltage: 12	Output Current: 16.66A	Output Power (W): 200	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-12S	Input Voltage: 90~264	Output Voltage: 12	Output Current: 16.66A	Output Power (W): 200	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240DN-15S	Input Voltage: 90~264	Output Voltage: 15	Output Current: 14.66A	Output Power (W): 220	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-15S	Input Voltage: 90~264	Output Voltage: 15	Output Current: 14.66A	Output Power (W): 220	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-12S	Input Voltage: 90~264	Output Voltage: 12	Output Current: 20 A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-24S	Input Voltage: 90~264	Output Voltage: 24	Output Current: 10A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-48S	Input Voltage: 90~264	Output Voltage: 48	Output Current: 5A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-15S	Input Voltage: 90~264	Output Voltage: 15	Output Current: 16A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-28S	Input Voltage: 90~264	Output Voltage: 28	Output Current: 8.75A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-32S	Input Voltage: 90~264	Output Voltage: 32	Output Current: 7.5A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240U-36S	Input Voltage: 90~264	Output Voltage: 36	Output Current: 6.66A	Output Power (W): 240	No. Outputs: S	Case: U-Chassis	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240DN-24S	Input Voltage: 90~264	Output Voltage: 24	Output Current: 10A	Output Power (W): 240	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240DN-28S	Input Voltage: 90~264	Output Voltage: 28	Output Current: 8.57A	Output Power (W): 240	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240DN-32S	Input Voltage: 90~264	Output Voltage: 32	Output Current: 7.5A	Output Power (W): 240	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240DN-36S	Input Voltage: 90~264	Output Voltage: 36	Output Current: 6.66A	Output Power (W): 240	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240DN-48S	Input Voltage: 90~264	Output Voltage: 48	Output Current: 5A	Output Power (W): 240	No. Outputs: S	Case: DIN Rail	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-24S	Input Voltage: 90~264	Output Voltage: 24	Output Current: 10A	Output Power (W): 240	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-28S	Input Voltage: 90~264	Output Voltage: 28	Output Current: 8.57A	Output Power (W): 240	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-32S	Input Voltage: 90~264	Output Voltage: 32	Output Current: 7.5A	Output Power (W): 240	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-36S	Input Voltage: 90~264	Output Voltage: 36	Output Current: 6.66A	Output Power (W): 240	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote
PSAQF240C-48S	Input Voltage: 90~264	Output Voltage: 48	Output Current: 5A	Output Power (W): 240	No. Outputs: S	Case: Enclosed Case	Size: 6" x 4.18" x 1.38	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
PFC:	Yes
Input Frequency:	47-63 Hz
Output
Output Voltage:	5, 12, 15, 24, 28, 32, 36, 48
Voltage Accuracy:	±2%
Output Current:	36A, 20A, 16A, 16.66A, 14.66A, 10A, 8.57A, 7.5A, 6.66A, 5A
Output Power (Watts):	180, 200, 220, 240
Short Circuit Protection:	latch off
Over Voltage Protection:	latch off
General
Efficiency:	Up to 93%
Isolation:	4000VAC or 5656VDC (Input to Output) 2000VAC (Input to FG) 500VAC (Output to FG)
Environmental
Operating Temperature:	-10 to 70°C
Storage Temperature:	-25 to 85°C
Physical
Weight:	U Type: 1.28 lbs (580g) C Type: 1.34 lbs (610g) DN Type: 1.36 lbs (615g)

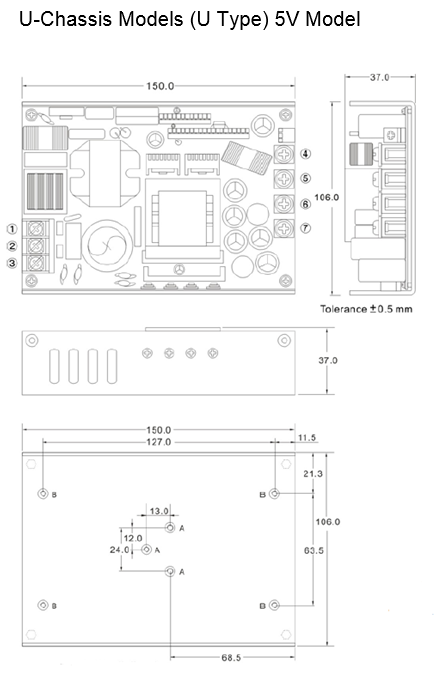

Dimensions:	U-Chassis 5V Model: 6.00” x 4.18” x 1.46” (150.0 x 106.0 x 37.0 mm) Other Models: 6.00" x 4.18" x 1.38" (150.0 x 106.0 x 35.0 mm)
Notes & safety
Notes:	1. Three mechanical options available: U-chassis (type U), enclosed case (type C), and DIN rail (type DN). 2. Ripple & Noise are measured at 20MHz bandwidth and with 0.1µF and 47µF capacitors in parallel across the output. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	CE, UL60950-1, CB (U-Chassis 5V Model only CE compliant0
RoHS Compliance:	Yes
