The PSAQC100 series of AC/DC power supplies provides up to 100 watts of output power in a 4.29” x 2.30” x 1.18” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include remote ON/OFF control, low leakage current < 250µA, active PFC function, 3000VAC I/O isolation, and high efficiency up to 93%. This series is also protected against over power, over voltage, and short circuit conditions. All models are RoHS compliant and have UL/cUL 60950-1, CE, and CB safety approvals and meet EN55022 Class B.

• RoHS Compliant • Class I and Class II Construction • 3000VAC I/O Isolation • 85~100 Watts Output Power • High Efficiency up to 93% • Fully Encapsulated Plastic Case • Low Leakage Current < 250µA • Remote ON/OFF Control • Optional Screw Terminal • Active PFC Function: > 0.95 (230VAC) and >0.99 (115VAC) • 12V, 15V, 24V, and 48V Single Output Models • PCB Mountable Switching Power Supply • Universal Input Voltage Range: 90-264VAC (120-370VDC) • Short Circuit, Over Power, and Over Voltage Protection • Four M3 Mounting Holes on Bottom Side (Optional) • Meets EN55022 Class B • UL/cUL 60950-1,CE, and CB Safety Approvals
Power (W)
Case Size
PSAQC100-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 7.08A Output Power (W): 85 No. Outputs: S Case: PCB Mount Size: 4.29" x 2.3" x 1.18" Get a Quote
PSAQC100-15S Input Voltage: 90~264 Output Voltage: 15 Output Current: 5.66A Output Power (W): 85 No. Outputs: S Case: PCB Mount Size: 4.29" x 2.3" x 1.18" Get a Quote
PSAQC100-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 4.2A Output Power (W): 100 No. Outputs: S Case: PCB Mount Size: 4.29" x 2.3" x 1.18" Get a Quote
PSAQC100-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 2.1A Output Power (W): 100 No. Outputs: S Case: PCB Mount Size: 4.29" x 2.3" x 1.18" Get a Quote
Specification Value
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.99, 0.95
Input Frequency: 47-63Hz
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 7.08A, 5.66A, 4.2A, 2.1A
Output Power (Watts): 85, 100
Short Circuit Protection: hiccup mode, automatic recovery
Over Voltage Protection: Zener Diode Clamp
Efficiency: Up to 93%
Isolation: 3000VAC

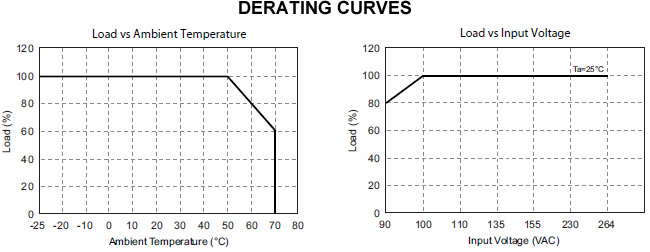

Operating Temperature: -25 to 70°C
Storage Temperature: -25 to 85°C
Weight: 10.93oz (310g)

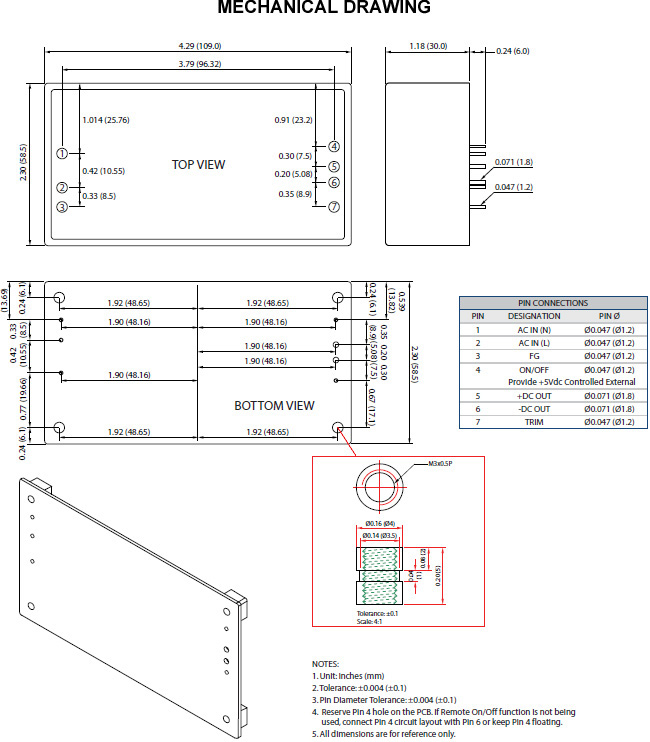

Dimensions: 4.29" x 2.30" x 1.18" (109 x 58.5 x 30 mm)
Notes & safety
Notes: 1. A minimum loading on the output is required to maintain all specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications.
2. The minimum load increases by 0.16% for every 1°C drop in temperature (at input = 90~219VAC)
3. Ripple & noise is measured at 20MHz bandwidth, full load, and with 47µF and 0.1µF capacitors in parallel across the output.
4. It is necessary to add a Varistor 14S471K in parallel on the L/N input side and a 10R/Ø15 Thermistor in series on the L input side.
5. Screw terminal mechanical options available. Please call factory for ordering details.
6. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL 60950-1,CE, CB
RoHS Compliance: Yes
