PSANC50
The PSANC50 series of AC/DC power supplies provides 50 watts of output power in a 2.91” x 2.13” x 0.86” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -40°C to +70°C operating temperature range, and over power, over voltage, and short circuit protection. The PSANC50 series also has two types of screw terminal mechanical options available. Standard models have CE, CB, and UL safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSANC50-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 8000mA | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.86" | Get a Quote |
| PSANC50-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 4167mA | Output Power (W): 50 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.86" | Get a Quote |
| PSANC50-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 3333mA | Output Power (W): 50 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.86" | Get a Quote |
| PSANC50-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2083mA | Output Power (W): 50 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.86" | Get a Quote |
| PSANC50-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 1040mA | Output Power (W): 50 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.86" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 8000mA, 4167mA, 3333mA, 2083mA, 1040mA |
| Output Power (Watts): | 40, 50 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.86oz (166g) |

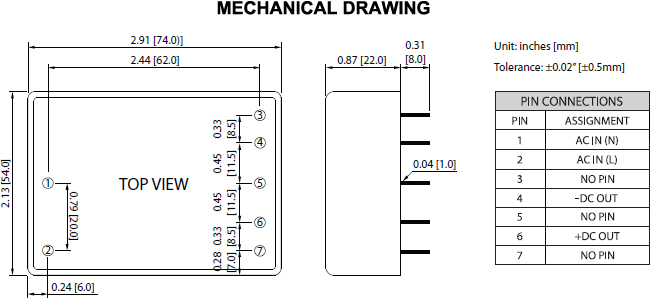

| Dimensions: | 2.91" x 2.13" x 0.86" (74 x 54 x 21.8 mm) |
| Case Material: | Plastic Resin and Fiberglass |
| Notes & safety | |

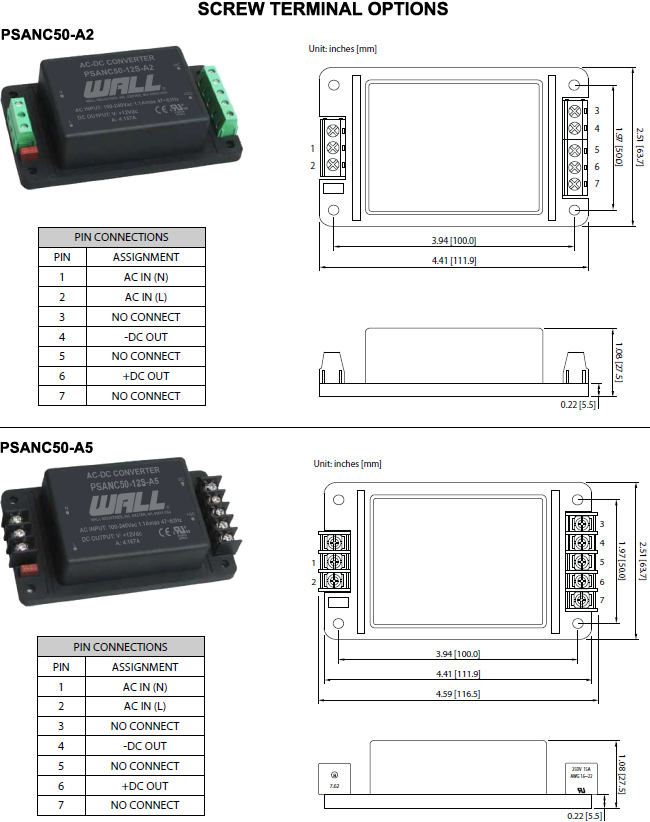

| Notes: | 1. Screw terminal mechanical options available (see pages 5-6). Please call factory for ordering details. 2. It is recommended to add a Varistor 14S471K in parallel on the L/N input side. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN60950, UL/IEC/EN 62368+1 |
