PSAKC
The PSAKC series of AC/DC power supplies offers 20 watts in a compact size package. This series has a universal input range and has single, dual, and triple output available. These units also offer high efficiency and CE and UL approvals.
• RoHS Compliant
• 20 Watts Output Power
• Single, Dual, and Triple Outputs
• Low Ripple & Noise
• UL/cUL, CE, and CB Approvals
• PCB Mountable Switching Power Supply
• Fully Encapsulated Plastic Case
• Universal Input Voltage Range: 90-264VAC (100-375VDC)
• Short Circuit, Over Current, and Over Voltage Protection

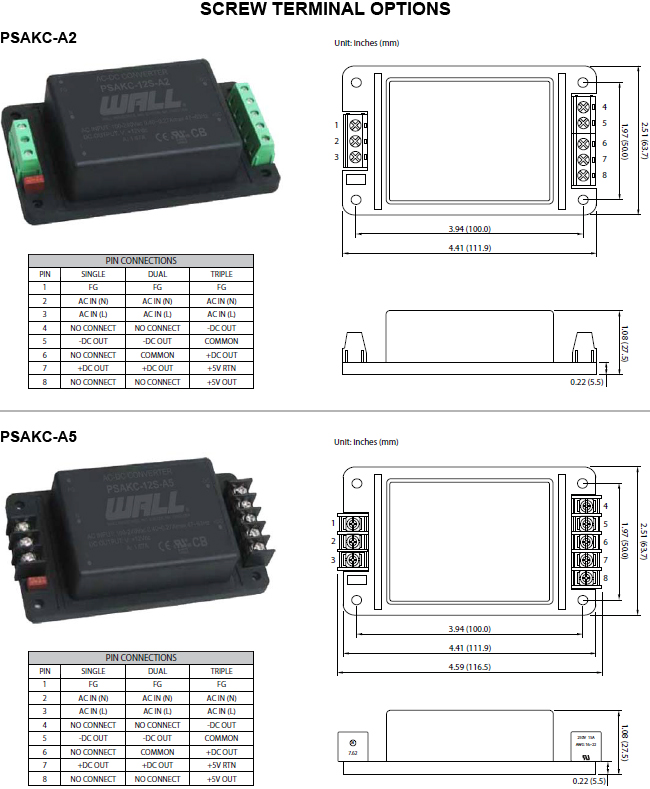

• Screw Terminal Mechanical Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAKC-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 4.5A | Output Power (W): 14.85 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-12D | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: ±0.833A | Output Power (W): 20 | No. Outputs: D | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-15D | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: ±0.667A | Output Power (W): 20 | No. Outputs: D | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-5S12D | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 2.8A, ±0.25A | Output Power (W): 20 | No. Outputs: T | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-5S15D | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 2.8A, ±0.2A | Output Power (W): 20 | No. Outputs: T | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-5D | Input Voltage: 90~264 | Output Voltage: 5, -5 | Output Current: ±2A | Output Power (W): 20 | No. Outputs: D | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 4A | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-7.35S | Input Voltage: 90~264 | Output Voltage: 7.35 | Output Current: 2.73A | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2.23A | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1.67A | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 1.34A | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| PSAKC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 840mA | Output Power (W): 20 | No. Outputs: S | Case: PCB Mount | Size: 2.76" x 1.89" x 0.87" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, -5, 7.35, 9, 12, -12, 15, -15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 4.5A, 4A, 2.73A, 2.23A, 1.67A, 2.73A, 1.34A, 840mA, 2.8A, ±2A, ±0.25A, ±0.2A, ±0.833A, ±0.667A |
| Output Power (Watts): | 14.85, 20 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 3000VAC |
| Environmental | |

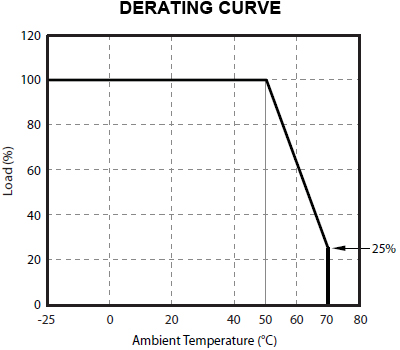

| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 3.88 oz. |

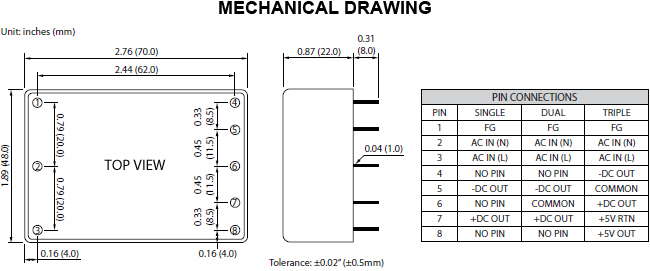

| Dimensions: | 2.76 x 1.89 x 0.87 inches (70.0 x 48.0 x 22.0 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |
| Notes: | 1. Triple output models require a minimum of 10% loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Load regulation for triple output models: Main output (V1): 20% to 100% with 20% to 100% balanced on auxiliaries. Auxiliary outputs (V2 & V3): 20% to 100% balanced on all outputs. 3. Cross regulation for dual output models: asymmetrical load 25% / 100% FL 4. Cross regulation for triple output models: Main output 100% load, auxiliary 100%, other auxiliary 25% to 100%. Auxiliary outputs (V2 & V3): Main output 100% load, auxiliary 100%, other auxiliary 25% to 100% or main output 25%, auxiliary 25%, other auxiliary 25% to 100%. 5. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB |
| RoHS Compliance: | Yes |
