PSAJC

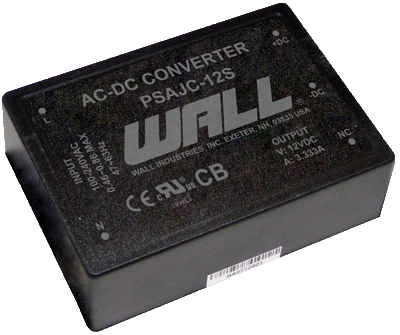

The PSAJC series of AC/DC power supplies offers 40 watts in an encapsulated design. This series has single, dual, and triple output models with a universal input range. Some features include low ripple and noise, regulated outputs, and high efficiency. All supplies are over current, over voltage, over temperature, and short circuit protected. This series is ideal for PCB mounting and has 6 mechanical options available. Please call factory for ordering details.
• RoHS Compliant
• Isolation Class II
• 40 Watts Output Power
• Single, Dual, and Triple Outputs
• UL/cUL, CE, and CB Approval
• Fully Encapsulated Plastic Case
• PCB Mountable Switching Power Supply
• -40°C to +70°C Operating Temperature Range
• Universal Input Voltage Range: 90-264VAC (100-375VDC)
• Short Circuit, Over Current, Over Voltage, and Over Temperature Protection
• Screw Terminal Mechanical Options Available
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAJC-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 8A | Output Power (W): 26.4 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-12D | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 1.666A, 1.666A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 3.333 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-15D | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: 1.333A, 1.333A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 2.666 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1.667 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5D | Input Voltage: 90~264 | Output Voltage: 5, -5 | Output Current: 4A, 4A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 8A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5S12D | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 5A, 0.600A | Output Power (W): 40 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5S12S | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 5A, 1.25A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5S15D | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 5A, ±0.5A | Output Power (W): 40 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5S24S | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 5A, 0.625A | Output Power (W): 40 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-9S | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 4.444 A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| PSAJC-5.1S | Input Voltage: 90~264 | Output Voltage: 5.1 | Output Current: 7.8A | Output Power (W): 40 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.98" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, -5, 5.1, 9, 12, -12, 15, -15, 24 |
| Voltage Accuracy: | see detailed specs |
| Output Current: | 8A, 5A, 1.25A, 0.625A, 7.8A, 4.444A, 3.333A, 2.666A, 1.667A, ±4A, ±0.6A, ±0.5A, ±1.666A, ±1.333A |
| Output Power (Watts): | 26.4, 40 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | Zener diode clamp |
| General | |
| Efficiency: | Up to 84% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 9.88 oz. |
| Dimensions: | 3.5" x 2.5" x 0.98" (89 x 63.5 x 25 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |
| Notes: | 1. All models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Load Regulation Single Output Models: Measured at 1%~100% Load PSAJC-5D, PSAJC-12D, PSAJC-15D Models: Measured at 10%~100% Load PSAJC-5S12S, PSAJC5S24S, PSAJC-5S12D, PSAJC-5S15D: Measured at 25%~100% Load 3. Cross Regulation PSAJC-5D, PSAJC-12D, PSAJC-15D Models: Measured at 15%~100% Load PSAJC-5S12S, PSAJC5S24S, PSAJC-5S12D, PSAJC-5S15D: Measured at 25%~100% Load 4. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE, CB |
| RoHS Compliance: | Yes |
