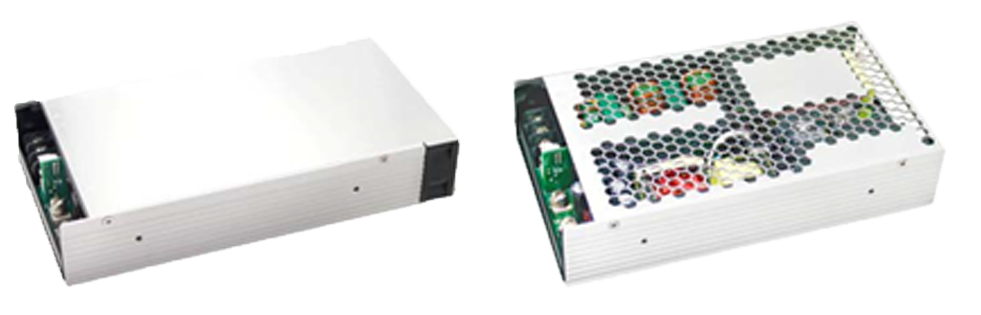

PSAFR1300
The PSAFR1300 series of AC/DC ITE switching power supplies offers up to 1300 watts of output power in an enclosed package. This series consists of single output models with an input voltage range of 90-264VAC. Each model in this series has over power, over voltage, over temperature and short circuit protection, high efficiency, and active PFC function. This series has safety approvals to UL/IEC/EN 62368-1.
• Universal Input Voltage of 90-264VAC
• High Efficiency
• Active PFC Function
• Operating Altitude 5000M
• Standby 5V@1A with Fan (Both Models) and @0.4A without Fan (“E” Models)
• 3 Year Warranty
• “E” Models offer 650W with Natural Convection, 800W with Conduction Cooling, and 1300W with 40CFM Forced Air
• I/O Isolation 4250VAC
• Over Power, Over Voltage, Over Temperature, and Short Circuit Protection
• Over Voltage Category OVC III
• Safety Approvals to UL/IEC/EN 62368-1
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAFR1300-12SE | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 45.8~91.6A | Output Power (W): 500~1100 | No. Outputs: S | Case: Enclosed Case with Fan | Size: 7.80" x 4.49" x 1.61" | Get a Quote |
| PSAFR1300-24SE | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 14.5~54.1A | Output Power (W): 500~1300 | No. Outputs: S | Case: Enclosed Case with Fan | Size: 7.80" x 4.49" x 1.61" | Get a Quote |
| PSAFR1300-48SE | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 10.4~45.8A | Output Power (W): 500~1300 | No. Outputs: S | Case: Enclosed Case with Fan | Size: 7.80" x 4.49" x 1.61" | Get a Quote |
| PSAFR1300-12SF | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 83.4-91.6A | Output Power (W): 1000~1100 | No. Outputs: S | Case: Enclosed Case | Size: 8.84" x 4.49" x 1.61" | Get a Quote |
| PSAFR1300-24SF | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 54.1A | Output Power (W): 1300 | No. Outputs: S | Case: Enclosed Case | Size: 8.84" x 4.49" x 1.61" | Get a Quote |
| PSAFR1300-48SF | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 27.1A | Output Power (W): 1300 | No. Outputs: S | Case: Enclosed Case | Size: 8.84" x 4.49" x 1.61" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 83.4A, 91.6A, 54.1A, 58.3A, 41.6A, 45.8A, 54.1A, 54.1A, 29.1A, 33.3A, 14.5A, 16.6A, 41.6A, 45.8A, 20.8A, 27.1A, 10.4A, 13.5A |
| Output Power (Watts): | 500, 650, 700, 800, 1000, 1100, 1300 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Automatic Recovery |
| General | |
| Isolation: | Up to 6000VDC |
| Environmental | |
| Operating Temperature: | -30 to 70°C |
| Storage Temperature: | -30 to 85°C |
| Physical | |
| Weight: | “F” Models: 3.20lbs (1450g) “E” Models: 2.98lbs (1350g) |

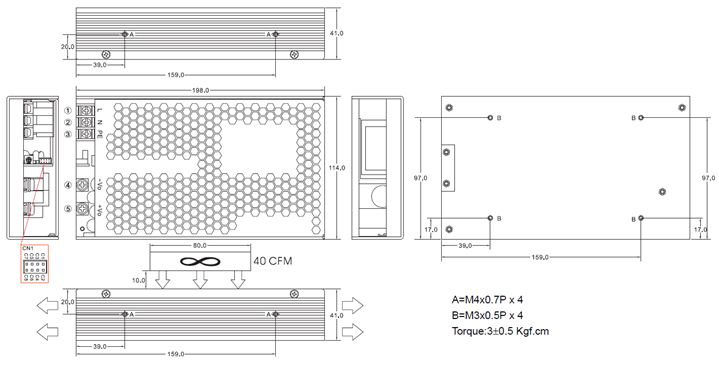

| Dimensions: | “F” Models: 8.84in x 4.49in x 1.61in (224.5mm x 114mm x 41mm) “E” Models: 7.80in x 4.49in x 1.61in (198mm x 114mm x 41mm) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise are measured at 20MHz of bandwidth by using a 6” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor. 2. Due to varying customer application conditions, the product is tested for maximum operating temperature under full load only. For other regulatory requirements, please contact factory. 3. This product is Listed to applicable standards and requirements by UL. 4. For optimal EMI performance, the power supply should be mounted to a grounded aluminum plate (650 x 650 x 3mm) with electrical contact to the four PCB mounting holes. To comply with safety standards, this plate must be grounded. CAUTION: Double pole, neutral fusing. Disconnect mains before servicing. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/IEC/EN 62368-1 |
