PSAEK3000HV

The PSAEK3000HV series of AC/DC switching power supplies provides 3000 Watts of output power in an 11.024” x 6.693” x 2.500” enclosed case. This series consists of single output models ranging from 150VDC to 400VDC with a universal input voltage range of 90~264VAC (127~370VDC). Standard features include high efficiency up to 93%, programmable output voltage and output current, remote on/off, and power OK signal. This series also has over temperature, over voltage, over load, and short circuit protection. All models are RoHS compliant and have UL60950-1 and EN60950-1 safety approvals.

• RoHS Compliant • 3000 Watts Output Power • High Efficiency up to 93% • 3000VAC (4242VDC) I/O Isolation • Constant Current Limiting • Global Control via RS232 • Power OK Signal • High Power Density 16.3W/in3 • UL60950-1 & EN60950-1 Safety Approvals • Remote Setting Multiple PSU via RS232, RS485 & I2C • Programmable Output Voltage (0~105%) • Programmable Output Current (0~105%) • Universal Input Voltage Range: 90~264VAC (127~370VDC) • Single Outputs Ranging from 150VDC to 400VDC • Selectable +5V/0.5A or +9V/0.3A Auxiliary Output • Forced Current Sharing at Parallel Operation • Remote ON/OFF Function • Protection: OLP, OVP, OTP, SCP, Fan Failure
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSAEK-3000HV-150 Input Voltage: 90~264 Output Voltage: 150 Output Current: 20A Output Power (W): 3000 No. Outputs: S Case: Enclosed with Fan Size: 11.024" x 6.693" x 2.5" Get a Quote
PSAEK-3000HV-200 Input Voltage: 90~264 Output Voltage: 200 Output Current: 15A Output Power (W): 3000 No. Outputs: S Case: Enclosed with Fan Size: 11.024" x 6.693" x 2.5" Get a Quote
PSAEK-3000HV-250 Input Voltage: 90~264 Output Voltage: 250 Output Current: 12A Output Power (W): 3000 No. Outputs: S Case: Enclosed with Fan Size: 11.024" x 6.693" x 2.5" Get a Quote
PSAEK-3000HV-300 Input Voltage: 90~264 Output Voltage: 300 Output Current: 10A Output Power (W): 3000 No. Outputs: S Case: Enclosed with Fan Size: 11.024" x 6.693" x 2.5" Get a Quote
PSAEK-3000HV-400 Input Voltage: 90~264 Output Voltage: 400 Output Current: 7.5A Output Power (W): 3000 No. Outputs: S Case: Enclosed with Fan Size: 11.024" x 6.693" x 2.5" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Remote ON/OFF: Yes
PFC: 0.98, 0.95
Input Frequency: 47 - 63Hz
Output
Output Voltage: 150, 200, 250, 300, 400
Voltage Accuracy: ±2.0%
Output Current: 20A, 15A, 12A, 10A, 7.5A
Output Power (Watts): 3000
Output Trim/Adjustability: ±5%
Over Voltage Protection: Variable OVP, 120% ±7% Vout
Thermal Protection: Yes
General
Efficiency: 93%
Isolation: 3000VAC
Environmental
Operating Temperature: -20 to 60°C
Storage Temperature: -40 to 85°C
Physical
Weight: 8.38 lbs (3.8kg)
Dimensions: 11.024" x 6.693" x 2.500" (280.00 x 170.00 x 63.50 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.

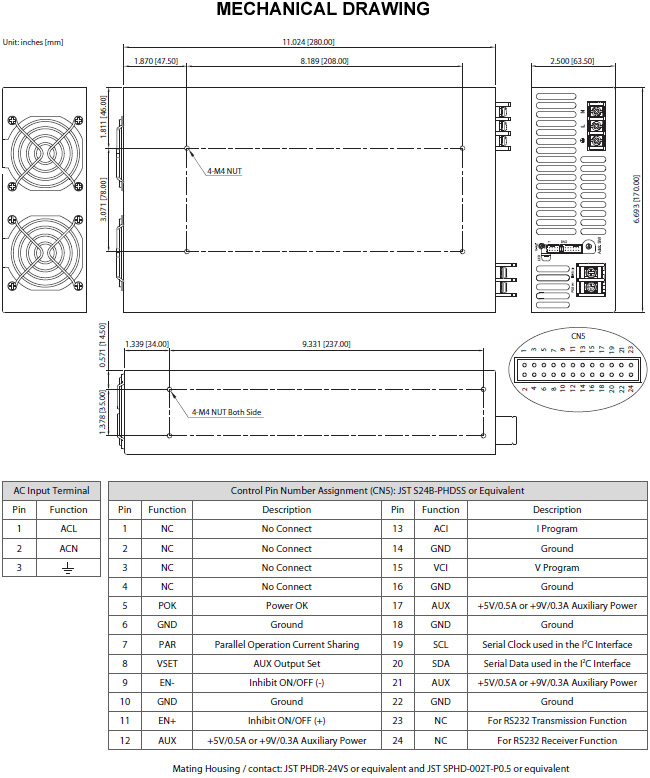

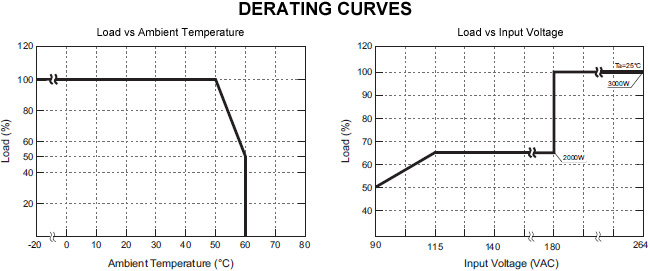

2. For voltages near the low end of the input voltage range, see the derating curve for the power supply output rating.
3. When in parallel operation only one unit might operate if the total output load is less than 5% of the rated load condition.
4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
5. This product is Listed to applicable standards and requirements by UL.
6. For applications that require paralleling for higher power, see PSAEK3000HV-OR series.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1; EN60950-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV/ Bauart Gepruft
