PSADF
The PSADF series of AC/DC power supplies offers 7 Watts of output power in an encapsulated design. These modules have a single output and a universal input range of 85-265VAC and an efficiency as high as 78%. Other features include continuous short circuit protection, over voltage protection, and output current limiting. These units are also EMC EN61000-4(-2,-3,-4) and EMI EN55022 level B approved. The compliance to these EMI specifications minimizes system design time, cost, and eliminates the need for external filter components. The PSADF series has IEC/ EN/UL 60950-1 safety approvals which qualifies this product for worldwide markets. This series has a wide variety of applications including both commercial and industrial with a MTBF of 330,000 hours.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSADF-07S03 | Input Voltage: 85~265 | Output Voltage: 3.3 | Output Current: 1.4 A | Output Power (W): 4.62 | No. Outputs: S | Case: PCB Mount | Size: 2" x 1" x 0.76" | Get a Quote |
| PSADF-07S05 | Input Voltage: 85~265 | Output Voltage: 5 | Output Current: 1.4 A | Output Power (W): 7 | No. Outputs: S | Case: PCB Mount | Size: 2" x 1" x 0.76" | Get a Quote |
| PSADF-07S12 | Input Voltage: 85~265 | Output Voltage: 12 | Output Current: 583 mA | Output Power (W): 7 | No. Outputs: S | Case: PCB Mount | Size: 2" x 1" x 0.76" | Get a Quote |
| PSADF-07S15 | Input Voltage: 85~265 | Output Voltage: 15 | Output Current: 466 mA | Output Power (W): 7 | No. Outputs: S | Case: PCB Mount | Size: 2" x 1" x 0.76" | Get a Quote |
| PSADF-07S24 | Input Voltage: 85~265 | Output Voltage: 24 | Output Current: 291 mA | Output Power (W): 7 | No. Outputs: S | Case: PCB Mount | Size: 2" x 1" x 0.76" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~265 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 1.4A, 291mA, 466mA, 583mA |
| Output Power (Watts): | 4.62, 7 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | 120% of Vo (zener diode clamp) |
| General | |
| Efficiency: | Up to 78% |
| Isolation: | 3000VAC min |
| Environmental | |

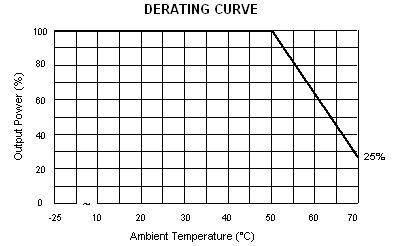

| Operating Temperature: | -25 to 71°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.55 oz. |

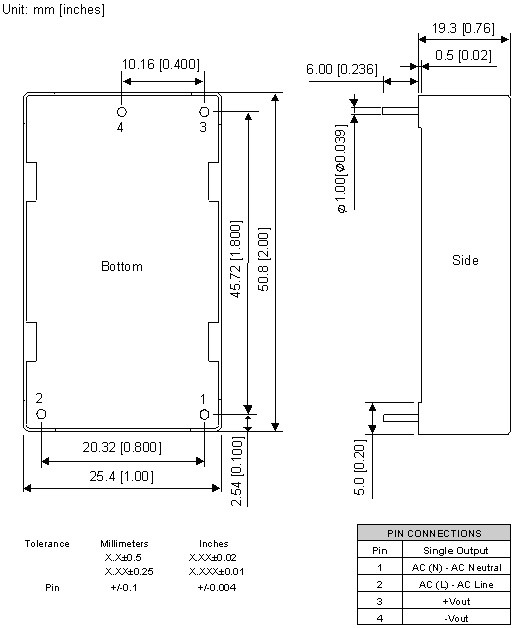

| Dimensions: | 2" x 1" x 0.76" (50.8 x 25.4 x 19.3 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |
| Notes: | 1. Ripple & Noise measurement bandwidth is 0~20 MHz. 2. These power modules require a minimum output loading to maintain specified regulation. 3. Operation under no-load conditions will not damage these devices; however they may not meet all listed specifications. 4. All AC/DC modules should be externally fused at the front end for protection. 5. Other input and output voltage may be available, please contact factory. 6. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/ EN / UL 60950-1 |
| RoHS Compliance: | Yes |
