LEDA100

The LEDA100 series of LED drivers offers 96 watts of output power in a 9.50” x 1.70” x 1.15” IP20 designed package. This series has a wide input voltage range of 120~277VAC and single output models. Each model has over voltage, over current, and short circuit protection, high efficiency, and UL8750 and UL879 safety approvals.

• Constant Voltage LED Driver • Input Voltage of 120~277VAC • IP20 Design for Dry and Damp Locations • Over Voltage, Over Current, and Short Circuit Protection • High Efficiency • UL8750 and UL879 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
LEDA100-12V Input Voltage: 120~277 Output Voltage: 12 Output Current: 8A Output Power (W): 96 No. Outputs: S Case: LED Driver Get a Quote
LEDA100-24V Input Voltage: 120~277 Output Voltage: 24 Output Current: 4A Output Power (W): 96 No. Outputs: S Case: LED Driver Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 120~277VAC
PFC: 0.9
Input Frequency: 50/60 Hz
Output
Output Voltage: 12, 24
Output Current: 4A, 8A
Output Power (Watts): 96
Short Circuit Protection: Yes
Over Voltage Protection: Yes
General
Efficiency: Up to 89%
Environmental
Operating Temperature: -40 to 60ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 1.21lbs (0.55kg)

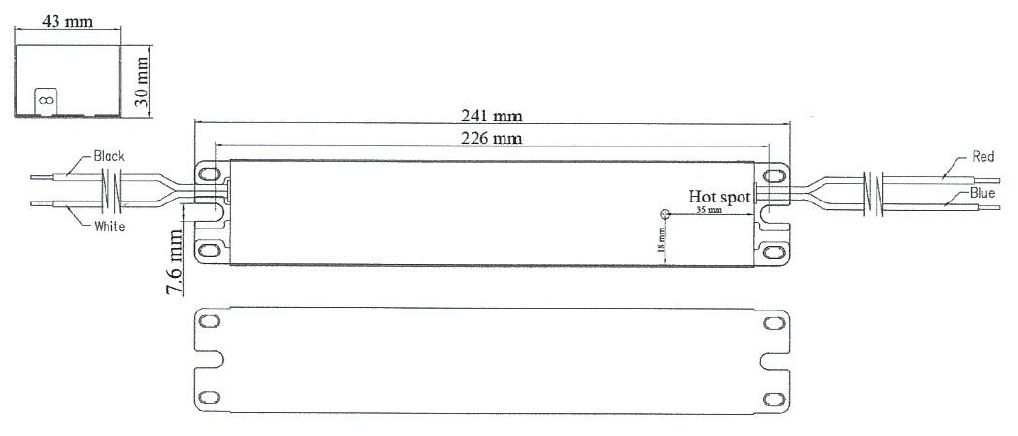

Dimensions: 9.50in x 1.70in x 1.15in (241mm x 43mm x 30mm)
Case Material: Metal
Notes & safety
Notes: Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, CE, FCC, 47FR Part 15, EN61000-3-2
