DTSPU46
The DTSPU46 series of AC/DC desktop switching power supplies provides up to 50 watts of continuous output power. This series consists of single output models with a 90~264VAC input voltage range and an IEC-320-C14 input inlet connector for worldwide applications. These supplies also have input surge current, over voltage, and over load protection. All units are UL94V-1, RoHS, and Energy Star 2.0 Level V, VI compliant. All models meet FCC Part-15 class B and CISPR-22 class B emission limits and have UL/cUL (UL 60950-1) and TUV/GS (EN 60950-1) certifications. This series also meets new CE requirements. All units are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTSPU46-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 8.00 A max. | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 7.50 ~ 5.62 A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 5.62 ~ 4.09 A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 4.09 ~ 3.46 A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 3.46 ~ 2.81 A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 3.12 ~ 2.38 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 2.38 ~ 1.85 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 1.85 ~ 1.51 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 1.51 ~ 1.25 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| *DTSPU46-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 1.25 ~ 1.00 A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50 |
| Output Current: | 8A, 7.5~5.6A, 5.6~4.1A, 4.1~3.5A, 3.5~2.8A, 3.1~2.4A, 2.4~1.8A, 1.8~1.5A, 1.5~1.3A, 1.3~1A |
| Output Power (Watts): | 40, 45, 50 |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 85% |
| Isolation: | 4242VDC |
| Environmental | |

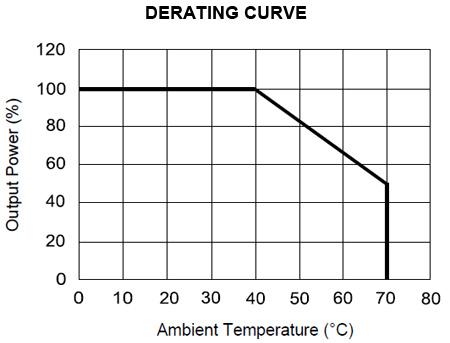

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.18~1.23 lbs (535~560g) |

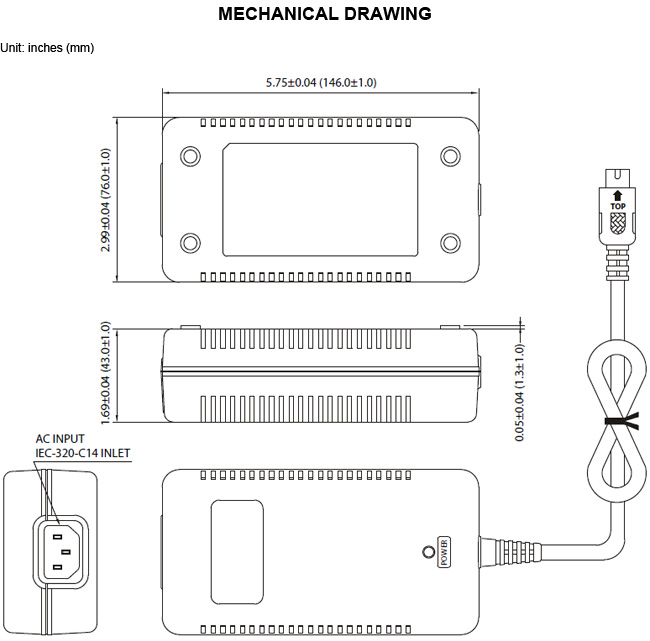

| Dimensions: | 5.75" x 2.99" x 1.69" (146.0 x 76.0 x 43.0 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (ex: 40~50VDC); the customer must specify what they would like the output voltage set at. Please call factory for more details. 2. Model DTSPU46-102 needs to use AWG#16/5C/4FT output cable in order to meet the total regulation specified. Model DTSPU46-105 needs to use AWG#18/3C/4FT, AWG#20/2C/4FT output cable in order to meet the total regulation specified. Model DTSPU46-111 needs to use AWG#18/2C/4FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. 3. Optional output connectors are available. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL UL60950-1, TUV/GS EN60950-1, CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1 |
| Energy Star Compliance: | Level V, VI |
