DTSPU40
The DTSPU40 series of single output AC/DC switching mode power supplies provide 40 watts of continuous output power. All supplies are UL94V-1 compliant and include an IEC-320-C14 input for worldwide applications. All models meet FCC Part-15 class B and CISPR-22 class B emission limits and are designed to comply with UL/c-UL (UL 60950-1), TUV/GS (EN 60950-1), and new CE requirements. All units are 100% burn-in tested.
● Splash Proof
● RoHS Compliant
● Class I Insulation
● IEC-320-C14 Input Inlet
● Optional Output Connector
● CEC and Energy Star Compliant
● Approved as Limited Power Source (LPS)
● Wide Input Voltage 90 to 264VAC, 47~63Hz
● Output Voltage Protection (Crowbar Design)
● Output Voltages Available from 5VDC thru 50VDC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTSPU40-102 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 5A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-103 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 4A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-104 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 4.37A | Output Power (W): 35 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-105 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 3.63A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-106 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 3.07A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-107 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 2.5A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-108 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.9A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-109 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 1.48A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-110 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 1.21A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTSPU40-111 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 1A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 120 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 6, 8, 11, 13, 16, 21, 27, 33, 40 |
| Output Current: | 1A, 1.21A, 1.48A, 1.9A, 2.5A, 3.07A, 3.63A, 4A, 4.37A, 5A |
| Output Power (Watts): | 25, 30, 35, 40 |
| Over Voltage Protection: | 112% to 132% |
| General | |
| Efficiency: | 83% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0°C to +70°C (with derating) |
| Storage Temperature: | -40°C to +85°C |
| Physical | |
| Weight: | 9.7 oz. |

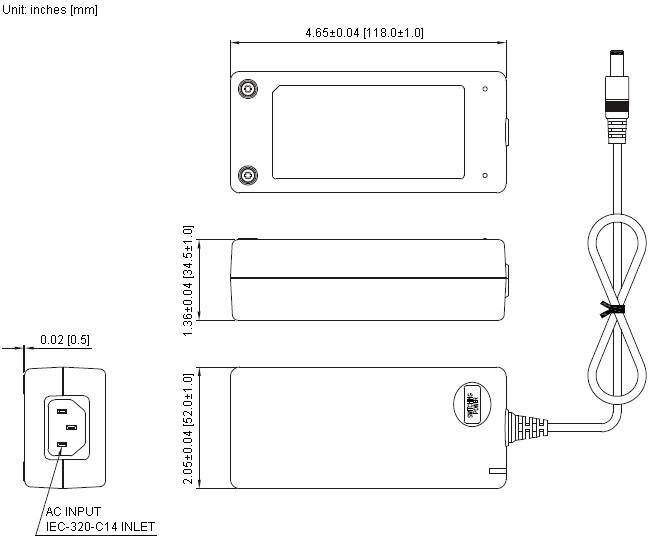

| Dimensions: | 4.65" x 2.05" x 1.36" (118 x 52 x 34.5 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (Ex: 40 ~ 50VDC); the preset voltage will be set as standard models if nothing different is requested. Please contact factory for ordering details. 2. Models DTSPU40-102 ~ DTSPU40-105 need to use “AWG#16, 4FT long” to meet CEC requirements and models DTSPU40-106 ~ DTSPU40-111 need to use “AWG#18, 4FT long” to meet CEC requirements. 3. The regulation will change by modifying the output cable. 4. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop” category page). Please call factory for ordering details. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1 |
| Energy Star Compliance: | Level IV |
