DTSPU16

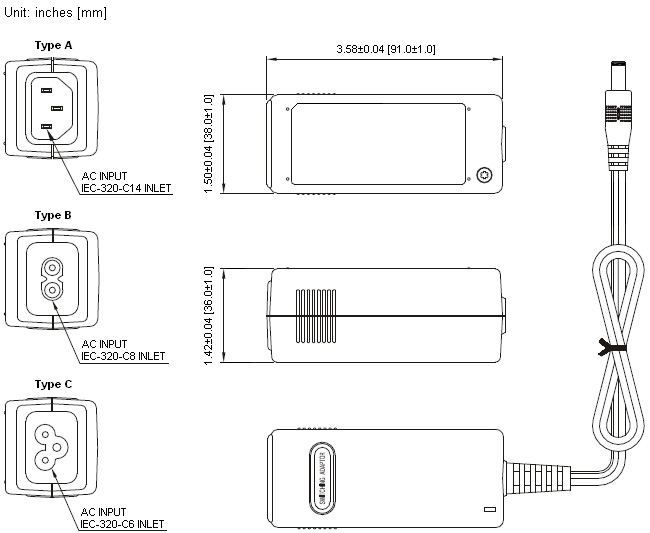

The DTSPU16 series of AC DC desktop single output power supplies provides up to 15 watts of continuous output power and is well-suited for a variety of applications. This series has three types of AC inlet connectors to choose from: Type A (IEC-320-C14), Type B (IEC-320-C8), and Type C (IEC-320-C6) and 2 types of power cords are available (Type D and Type E). All supplies are UL 94V-1 compliant and models above 3~5V are Energy Star Level VI compliant. All models meet FCC Part-15 Class B and CISPR-22 Class B emission limits and are designed to comply with UL60950-1:2nd Edition, IEC 60950-1:2005/A2:2013 and new CE requirements. All units are 100% burn-in tested. Please call factory for order details.

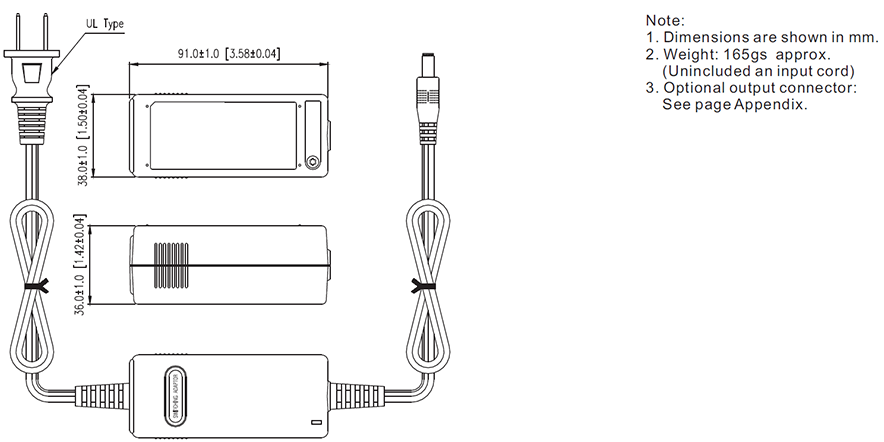

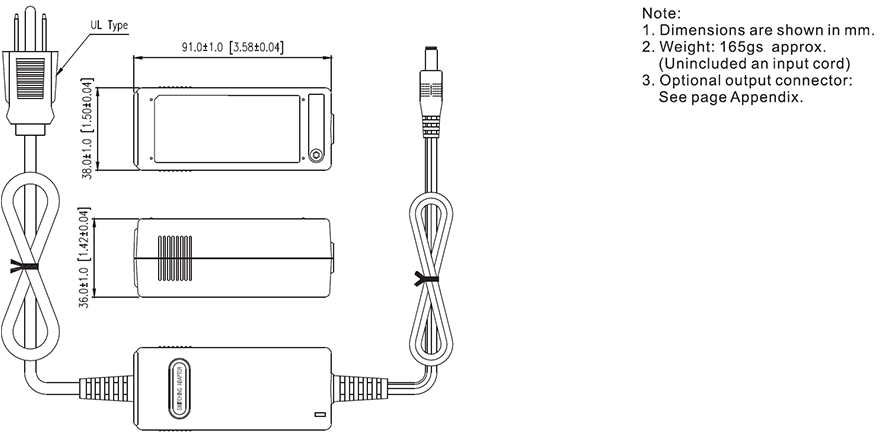

X: “A” for IEC-320-C-14, “B” for IEC-320-C8, “C” for IEC-320-C6, “D” for 2-Prong Cable In, or “E” for 3-Prong Cable in
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTSPU16x-101 | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 2.50A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-102 | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 2A~2.50A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 1.50A~1.84A | Output Power (W): 12 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 1.36A~1.87A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 1.15A~1.36A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 0.94A~1.15A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 0.72A~0.94A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 0.55A~0.72A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 0.45A~0.55A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 0.37A~0.45A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| DTSPU16x-111 | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.31A~0.37A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.58" x 1.5" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3~5, 5~5.99, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 0.31A~0.37A, 0.37A~0.45A, 0.45A~0.55A, 0.55A~0.72A, 0.72A~0.94A, 0.94A~1.15A, 1.15A~1.36A, 1.36A~1.87A, 1.50A~1.87A, 2.00A~2.50A |
| Output Power (Watts): | 12, 15 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 5.82oz (165g) |
| Dimensions: | 3.58" x 1.50" x 1.42" (91.0 x 38.0 x 36.0 mm) |
| Notes & safety | |
| Notes: | (1) “x” in model number represents type of case for model. Can either be “A” for IEC-320-C-14, “B” for IEC-320-C8, “C” for IEC-320-C6, “D” for 2-Prong Cable In, or “E” for 3-Prong Cable in. (2) Ripple and Noise under 3.3VDC is at 2% Max (3) DTSPU16(A, C, E)-104, 105, 108 are available on NRCan mark. DTSPUA-105 is available on KC mark (Korea Certification). (4) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1:2nd Edition, IEC 60950-1:2005/A2:2013 Safety Approvals for All Models |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
