DTSPU131

The DTSPU131 series of AC/DC desktop switching power supplies provides 130 watts of continuous output power. This series consists of single output models with a 90~260VAC input voltage range and an IEC-320-C14 input inlet connector for worldwide applications. These supplies also have input surge current, over voltage, and over load protection. All units are UL94V-1, RoHS, and Energy Star 2.0 Level V compliant. All models meet FCC Part-15 class B and CISPR-22 EN55022 class B emission limits and have UL/cUL (UL 60950-1) and TUV/T-mark (EN 60950-1) safety approvals. This series also meets new CE requirements and are 100% burn-in tested.

• Class I • Single Output • RoHS Compliant • IEC-320-C14 Input Inlet • Over Voltage, Short Circuit, and Over Load Protection • Efficiency Level VI (12V and 24V models) • Active Power Factor Correction • Optional Output Connectors Available • Output Voltages available from 12VDC to 55VDC • Optional On/Off Switch • Wide Input Voltage Range: 90 to 260VAC, 47~63Hz
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTSPU131-105 Input Voltage: 90~260 Output Voltage: 12~13 Output Current: 10.84 ~ 10.00 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-106 Input Voltage: 90~260 Output Voltage: 13~16 Output Current: 10.00 ~ 8.12 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-107 Input Voltage: 90~260 Output Voltage: 16~21 Output Current: 8.12 ~ 6.19 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-108 Input Voltage: 90~260 Output Voltage: 21~27 Output Current: 6.19 ~ 4.81 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-109 Input Voltage: 90~260 Output Voltage: 27~33 Output Current: 4.81 ~ 3.93 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-110 Input Voltage: 90~260 Output Voltage: 33~40 Output Current: 3.93 ~ 3.25 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-111 Input Voltage: 90~260 Output Voltage: 40~50 Output Current: 3.25 ~ 2.60 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
DTSPU131-112 Input Voltage: 90~260 Output Voltage: 50~55 Output Current: 2.60 ~ 2.36 A Output Power (W): 130 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~260
PFC: Yes
Input Frequency: 47-63Hz
Output
Output Voltage: 12~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 50~55
Output Current: 10.84~10, 10~8.12A, 8.1~6.2A, 6.2~4.8A, 4.8~3.9A, 3.9~3.2A, 3.2~2.6A, 2.6~2.4A
Output Power (Watts): 130
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 112-132%
General
Isolation: 4242VDC
Environmental
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 27.4~28.2oz (778~800g)

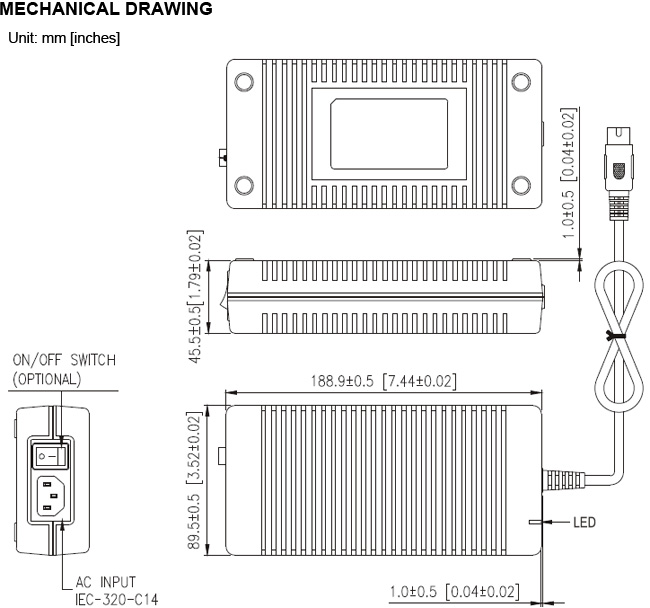

Dimensions: 7.44" x 3.52" x 1.79" (188.9 x 89.5 x 45.5 mm)
Notes & safety
Notes: (1) Output can provide up to peak load when the power supply starts up. Continuous staying in more than rated load is not allowed.
At factory, in 60% rated load condition, each output is checked to be within voltage accuracy.
(2) Ripple and Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
(3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
(4) Load regulation is defined by changing ±40% of measured output load from 60% rated load.
(5) Hold-Up Time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
(6) Efficiency is measured at rated load, and nominal line.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL UL60950-1: 2nd Edition, TUV/GS (EN 60950-1:2nd Edition)
RoHS Compliance: Yes
TUV Efficiency Level: TUV/T-mark EN60950-1
Energy Star Compliance: Level V, VI
