DTPSU50

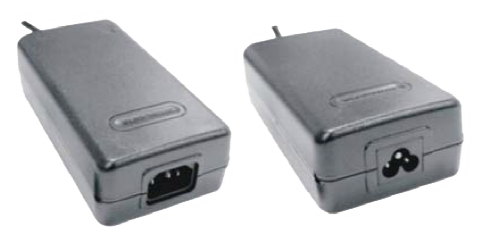

The DTPSU50 series of AC/DC desktop power supplies offers 50 watts of output power in a 5.75” x 2.97” x 1.69” compact package. This series consists of dual or triple output models with a universal input voltage range of 100~240VAC. Two different AC inlets are available: IEC-320-C14 or IEC-320-C6 and there are also optional output connectors available. This series has short circuit and over voltage protection and UL 1950, CSA C22.2, EN60905-1, and IEC60905-1 safety approvals.

• Universal Input Voltage Range of 100~240VAC • Dual or Triple Outputs • IEC-320-C14 or IEC-320-C6 AC Inlets • Optional Output Connectors Available • Compact Package • Short Circuit and Over Voltage Protection • UL 1950, CSA C22.2, EN60950-1, and IEC60905-1 Safety Approvals
Part Number Setup:
X: “A” for IEC-320-C14 Inlet or “B” for IEC-320-C6 Inlet
Example:
DTPSU50A-12A= 5VDC, 9VDC Dual Output Model with IEC-320-C14 Inlet
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTPSU50A-12X Input Voltage: 100~240 Output Voltage: 5, 9 Output Current: 4.50A, 1.70A Output Power (W): 37.8 No. Outputs: D Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-13D-1X Input Voltage: 100~240 Output Voltage: 5, 12, -12 Output Current: 5.00A, 1.00A, 0.25A Output Power (W): 40 No. Outputs: T Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-13X Input Voltage: 100~240 Output Voltage: 5, 12 Output Current: 4.00A, 2.00A Output Power (W): 44 No. Outputs: D Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-16-1X Input Voltage: 100~240 Output Voltage: 5, 24 Output Current: 2.00A, 1.50A Output Power (W): 46 No. Outputs: D Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-13AX Input Voltage: 100~240 Output Voltage: 5, 12, -5 Output Current: 4.00A, 2.00A, 0.50A Output Power (W): 46.5 No. Outputs: T Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-14X Input Voltage: 100~240 Output Voltage: 5, 15 Output Current: 4.00A, 1.80A Output Power (W): 47 No. Outputs: D Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-16X Input Voltage: 100~240 Output Voltage: 5, 24 Output Current: 5.00A, 1.00A Output Power (W): 49 No. Outputs: D Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-13DX Input Voltage: 100~240 Output Voltage: 5, 12, -12 Output Current: 4.00A, 2.00A, 0.50A Output Power (W): 50 No. Outputs: T Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-14EX Input Voltage: 100~240 Output Voltage: 5, 15, -15 Output Current: 4.00A, 1.50A, 0.50A Output Power (W): 50 No. Outputs: T Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
DTPSU50A-36X Input Voltage: 100~240 Output Voltage: 12, 24 Output Current: 2.20A, 1.00A Output Power (W): 50.4 No. Outputs: D Case: Desktop Size: 5.75" x 2.97" x 1.69" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50 - 60Hz
Output
Output Voltage: -15, -12, -5, 5, 9, 12, 15, 24
Output Current: 0.25A, 0.50A, 1.00A, 1.50A, 1.70A, 1.80A, 2.00A, 2.20A, 4.00A, 4.50A, 5.00A
Output Power (Watts): 37.8, 40, 44, 46, 46.5, 47, 49, 50, 50.4
Short Circuit Protection: Yes
Over Voltage Protection: Yes
General
Efficiency: 65% min.
Environmental
Operating Temperature: 0 to 30ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 10.58~12.35oz (300~350g)

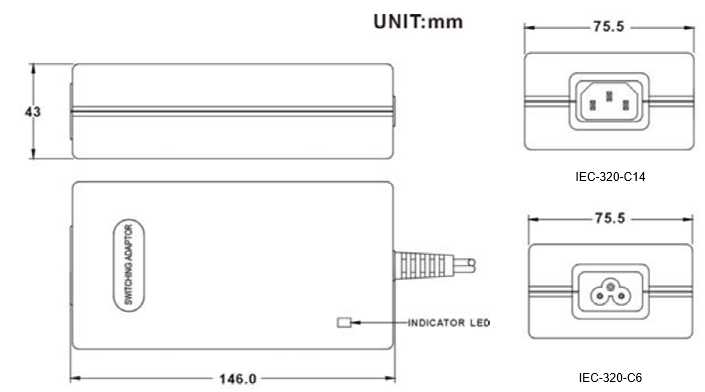

Dimensions: 5.75in x 2.97in x 1.69in (146mm x 75.5mm x 43mm)
Notes & safety
Notes: 1. “X” in model number indicates the AC Inlet. “X” can either be “A” for IEC-320-C14 inlet or “B” for IEC-320-C6 inlet.
2. Optional output connectors available, contact factory for more details.
3. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1; CSA C22.2, EN60950-1, IEC60950-1
