DTPSU25
The DTPSU25 series of AC/DC desktop power supplies offers 25 watts of output power in a 4.23” x 2.64” x 1.42” compact package. This series consists of dual or triple outputs with a universal input voltage range of 100~240VAC. There are several options available for this series including AC inlet and DC cord. The AC Inlets available are IEC-320-C14, IEC-320-C8, IEC-320-C6 or MAINS Cord, which can either have USA or European plugs. Each model in this series has high reliability, is CE marked, and has short circuit, over load, and over voltage protection. This series has UL60950-1:CSA C22.2, EN609509-1, and IEC60950-1 safety approvals. Please call factory for order details.

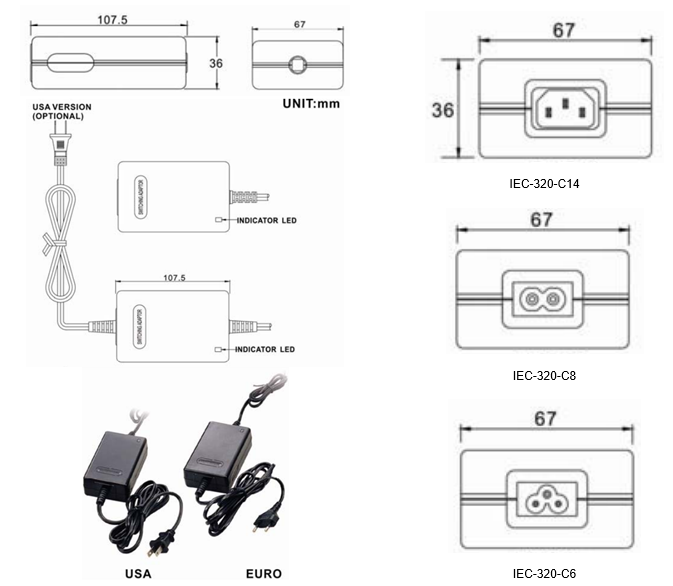

X: “A” for IEC-320-C14, “B” for IEC-320-C8, “C” for IEC-320-C6, or “D” for Mains Cord Input.
Y: “U” for American Mains Cord Type, or “E” for European Mains Cord Type. “Y” will only change if “X” is “D”
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTPSU25X-13Y | Input Voltage: 100~240 | Output Voltage: 5, 12 | Output Current: 2.50A, 1A | Output Power (W): 25 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTPSU25X-14Y | Input Voltage: 100~240 | Output Voltage: 5, 15 | Output Current: 2.50A, 0.80A | Output Power (W): 25 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTPSU25X-16Y | Input Voltage: 100~240 | Output Voltage: 5, 24 | Output Current: 2.50A, 0.50A | Output Power (W): 25 | No. Outputs: D | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTPSU25X-13DY | Input Voltage: 100~240 | Output Voltage: 5, 12, -12 | Output Current: 2.50A, 0.80A, 0.3A | Output Power (W): 25 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTPSU25X-14EY | Input Voltage: 100~240 | Output Voltage: 5, 15, -15 | Output Current: 2.50A, 0.50A, 0.3A | Output Power (W): 25 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| DTPSU25X-13AY | Input Voltage: 100~240 | Output Voltage: 5, 12, -5 | Output Current: 2.50A, 0.80A, 0.3A | Output Power (W): 25 | No. Outputs: T | Case: Desktop | Size: 4.23" x 2.64" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50 - 60Hz |
| Output | |
| Output Voltage: | -15, -12, -5, 5, 12, 15, 24 |
| Output Current: | 0.3A, 0.50A, 0.80A, 1.00A, 2.50A |
| Output Power (Watts): | 25 |
| Short Circuit Protection: | Yes |
| General | |
| Efficiency: | 65% Min. |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 10.58~12.35oz (300~350g) |
| Dimensions: | 4.23in x 2.64in x 1.42in |
| Notes & safety | |
| Notes: | 1. “X” in the model number represents AC Inlet selection. “X” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, “C” for IEC-320-C6, or “D” for MAINS Cord Input. “Y” in model number represents the MAINS Cord input type. “Y” can either be “U” for US plug or “E” for European plug. Y will only change if “X” is indicated as “D” for MAINS Cord input. 2. Optional output connectors are available 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1; CSA C22.2, EN60950-1, and IEC60950-1 |
