DTMPU63
The DTMPU63 series of AC/DC switching mode power supplies provide 63 watts of continuous output power. All supplies are UL94V-1 compliant and include an IEC-320-C14 input inlet for worldwide applications. These supplies are suited for use in hospital equipment as well as many other applications. All models meet FCC Part-18 class B and CISPR-11 EN55011 class B emission limits and are designed to comply with UL/cUL (UL 60601-1), TUV/T-mark (EN 60601-1), and new CE requirements. All units are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMPU63-102 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 9A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-103 | Input Voltage: 90~264 | Output Voltage: 7 | Output Current: 7.85 A | Output Power (W): 55 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-104 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 6.44 A | Output Power (W): 58 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-105 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 5.25 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-106 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 4.2 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-107 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 3.5 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-108 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 2.62 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-109 | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 2.1 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTMPU63-110 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 1.75 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 120 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 7, 9, 12, 15, 18, 24, 30, 36 |
| Output Current: | 1.75A, 2.1A, 2.62A, 3.5A, 4.2A, 5.25A, 6.44A, 7.85A, 9A |
| Output Power (Watts): | 45, 55, 58, 63 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | 77-88% |
| Isolation: | 5600VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 18~19.75 oz. |

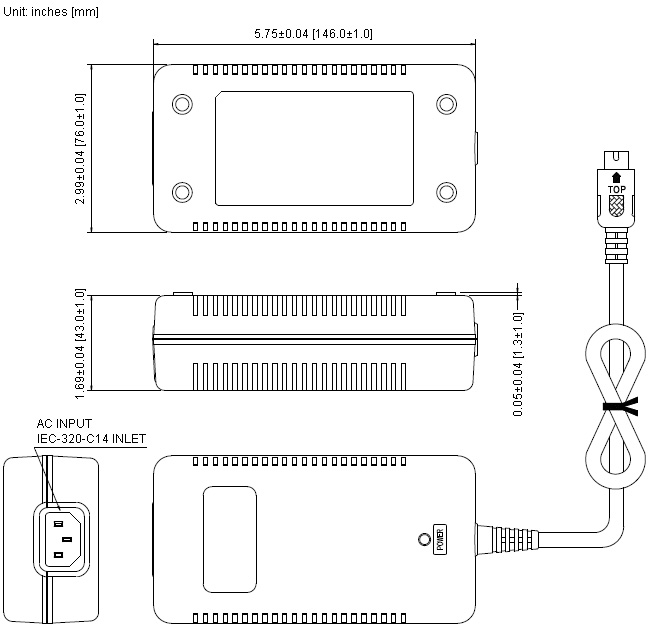

| Dimensions: | 5.75" x 2.99" x 1.69" (146.0 x 76.0 x 43.0 mm) |
| Notes & safety | |
| Notes: | 1. The asterisk “ * ” next to the model number indicates CEC level IV. 2. The models with output voltages under 15VDC have been approved by TUV/PSE and models with output voltages from 15VDC~30VDC have been approved by JET/PSE. 3. Models DTMPU63-102~103 need to use AWG#16/5C/4FT output cable in order to meet the total regulation. Models DTMPU63-104~105 need to use AWG#16/2C/4FT output cable in order to meet the total regulation. Models DTMPU63-106~107 need to use AWG#18/2C/4FT output cable in order to meet the total regulation. Models DTMPU63-108~110 need to use AWG#18/2C/6FT output cable in order to meet the total regulation. The regulation and efficiency will change if a different output cable is used. 4. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop” category page). Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/T-Mark EN60601-1 |
| Energy Star Compliance: | Level V |
