DTMPU60
The DTMPU60 series of medical AC/DC desktop power supplies provides 63 Watts of continuous output power in a 5.17” x 2.18” x 1.46” package. This series consists of single output models with a 80~275VAC input voltage range. These supplies also have over voltage, over load and short circuit protection. All units are RoHS2 and Level V compliant. All models meet FCC Part-18, CISPR-11, and EN55011 class B emission limits and have IEC60601-1 3.1 edition, ES60601-1:2005 (R2012), CSAC22.2 No.6001-1:14, EN60601-1:2006.A1:2013 safety approvals. These units also meet new CE requirements and are well suited for use in hospital equipment as well as many other applications. The DTMPU60 series has three types of input inlets available: IEC-320-C14 (A Type), IEC-320-C8 (B Type), and IEC-320-C6 (C Type). Optional output connectors are also available for this series. Please call factory for ordering details.
• Wide Input Voltage Range: 80~275VAC
• Class I for A & C Types, Class II for B Type
• 100% Burn-In Tested
• RoHS2 Compliant
• Efficiency Level V Compliant
• Single Output
• Optional Output Connectors Available
• Cooling by Free Air Convection
• Over Voltage, Over Load, and Short Circuit Protection
• IEC-320-C14, IEC-320-C8, and IEC-320-C6 Input Inlets Available
• Meets FCC Part-18, CISPR-11 and EN55011 Class B Emission Limits
• UL/cUL, TUV T-Mark and Conformity Assessment in CE Marking
• IEC60601-1 3.1 Edition, ES60601-1:2005 (R2012), CSAC22.2 No.60601-1:14, EN60601-1:2006/A1:2013 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMPU60A-105 | Input Voltage: 80~275 | Output Voltage: 12 | Output Current: 5.25A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60A-106 | Input Voltage: 80~275 | Output Voltage: 15 | Output Current: 4.20A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60A-107 | Input Voltage: 80~275 | Output Voltage: 18 | Output Current: 3.50A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60A-108 | Input Voltage: 80~275 | Output Voltage: 24 | Output Current: 2.62A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60A-109 | Input Voltage: 80~275 | Output Voltage: 30 | Output Current: 2.10A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60A-110 | Input Voltage: 80~275 | Output Voltage: 36 | Output Current: 1.75A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60A-111 | Input Voltage: 80~275 | Output Voltage: 48 | Output Current: 1.31A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-105 | Input Voltage: 80~275 | Output Voltage: 12 | Output Current: 5.25A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-106 | Input Voltage: 80~275 | Output Voltage: 15 | Output Current: 4.20A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-107 | Input Voltage: 80~275 | Output Voltage: 18 | Output Current: 3.50A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-108 | Input Voltage: 80~275 | Output Voltage: 24 | Output Current: 2.62A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-109 | Input Voltage: 80~275 | Output Voltage: 30 | Output Current: 2.10A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-110 | Input Voltage: 80~275 | Output Voltage: 36 | Output Current: 1.75A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-105 | Input Voltage: 80~275 | Output Voltage: 12 | Output Current: 5.25A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-106 | Input Voltage: 80~275 | Output Voltage: 15 | Output Current: 4.20A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-107 | Input Voltage: 80~275 | Output Voltage: 18 | Output Current: 3.50A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-108 | Input Voltage: 80~275 | Output Voltage: 24 | Output Current: 2.62A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-109 | Input Voltage: 80~275 | Output Voltage: 30 | Output Current: 2.10A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-110 | Input Voltage: 80~275 | Output Voltage: 36 | Output Current: 1.75A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60C-111 | Input Voltage: 80~275 | Output Voltage: 48 | Output Current: 1.31A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| DTMPU60B-111 | Input Voltage: 80~275 | Output Voltage: 48 | Output Current: 1.31A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 5.17" x 2.18" x 1.46" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 30, 36, 48 |
| Output Current: | 5.25A, 4.20A, 3.50A, 2.62A, 2.10A, 1.75A, 1.31A |
| Output Power (Watts): | 63 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 87% |
| Environmental | |

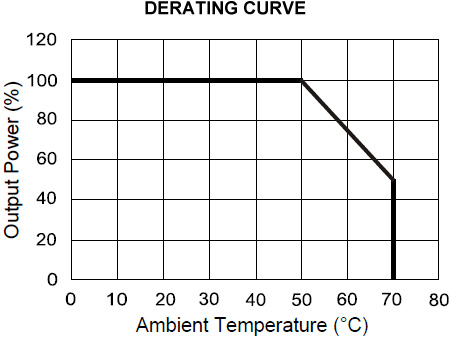

| Operating Temperature: | -10 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | approx. 11.64~13.40oz (330~380g) |

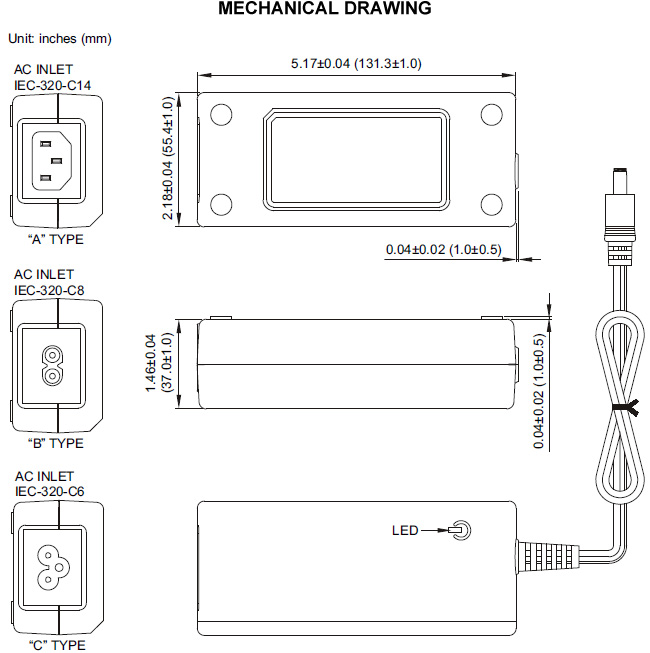

| Dimensions: | 5.17" x 2.18" x 1.46" (131.3 x 55.4 x 37.0 mm) |
| Notes & safety | |
| Notes: | 1. Models DTMPU60-105~107 needs to use AWG#16/2C/4FT output cable in order to meet the total regulation specified. Models DTMPU60-108~110 needs to use AWG#18/2C/6FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. 2. Optional output connectors are available. Please call factory for ordering details. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSAC22.2 No. 60601-1:14, EN60601-1:2006/A1:2013 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | EN60601-1: 2nd Edition |
| Energy Star Compliance: | Level V |
