DTMPU30
The DTMPU30 series of class I medical AC/DC desktop power supplies provides up to 30 Watts of continuous output power in a 4.65” x 2.56” x 1.52” package. This series consists of single, dual, and triple output models with a 90~264VAC input voltage range and an IEC-320-C14 AC inlet connector. These power supplies are protected against over voltage and over load conditions and have been 100% burn-in tested. All units are UL 94V-1 and RoHS compliant and meet FCC Part-18 class B and CISPR-11 EN55011 class B emission limits. The DTMPU30 series also meets new CE requirements and has UL/cUL 60601-1: 2nd edition and TUV/T-mark EN 60601-1 2nd edition safety approvals.
• Class I
• RoHS Compliant
• UL 94V-1 Compliant
• Energy Star 2.0, Efficiency Level V
• IEC-320-C14 AC Inlet Connector
• 100% Burn-in Tested
• Single, Dual, and Triple Outputs
• Wide Input Voltage Range: 90~264VAC
• Over Voltage and Over Load Protection
• Meets FCC Part-18 Class B and CISPR-11 EN55011 Class B Emission Limits
• UL/cUL 60601-1: 2nd Ed. and TUV/T-mark EN 60601-1: 2nd Ed. Safety Approvals
• Optional Output Connector
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMPU30-204 | Input Voltage: 90~264 | Output Voltage: 3.3, 5 | Output Current: 3A, 1.6A | Output Power (W): 17.9 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-101 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 6.66~4A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 4.16 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 3.12 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-200 | Input Voltage: 90~264 | Output Voltage: 3.3, 12 | Output Current: 3A, 1.3A | Output Power (W): 25 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-301 | Input Voltage: 90~264 | Output Voltage: 5, 12, -5 | Output Current: 2.5A, 1.1A, 0.5A | Output Power (W): 25 | No. Outputs: T | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-306 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -5 | Output Current: 3A, 1.1A, 0.5A | Output Power (W): 25 | No. Outputs: T | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2.72 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 2.3 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.87 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.42 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 1.11 A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 910 mA | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 750 mA | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-201 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 3A, 1.3A | Output Power (W): 30 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-202 | Input Voltage: 90~264 | Output Voltage: 5, 15 | Output Current: 3.0A, 1.0A | Output Power (W): 30 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-203 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 3A, 0.7A | Output Power (W): 30 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-209 | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 2A, 0.5A | Output Power (W): 30 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-210 | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: 1.5A, 0.5A | Output Power (W): 30 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-215 | Input Voltage: 90~264 | Output Voltage: 5, -24 | Output Current: 3A, 1A | Output Power (W): 30 | No. Outputs: D | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-302 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 2.5A, 1A, 0.5A | Output Power (W): 30 | No. Outputs: T | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-303 | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 2.5A, 1A, 0.5A | Output Power (W): 30 | No. Outputs: T | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-304 | Input Voltage: 90~264 | Output Voltage: 5, 24, -24 | Output Current: 3A, 1A, 0.5A | Output Power (W): 30 | No. Outputs: T | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| DTMPU30-305 | Input Voltage: 90~264 | Output Voltage: 5, 24, -12 | Output Current: 3A, 1A, 0.5A | Output Power (W): 30 | No. Outputs: T | Case: Desktop | Size: 4.65" x 2.56" x 1.52" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 3.3, 5, -5, 12, -12, 15, -15, 24, -24 |
| Output Current: | 2A, 2.5A, 3.7A, 4A, 4.1A, 4.3A, 4.5A, 4.6A, 0.9~0.75A, 1.11~0.9A, 1.42~1.11A, 1.87~1.42A, 2.3~1.87A, 2.72~2.30A, 3.75~2.72A, 4.16~3.12A, 5~4.16A, 6.66~4A |
| Output Power (Watts): | 17.9, 20, 25, 30 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | 67.6-85% |
| Isolation: | 5690VDC |
| Environmental | |

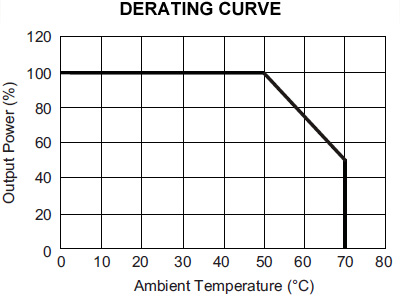

| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 14~16 oz. |

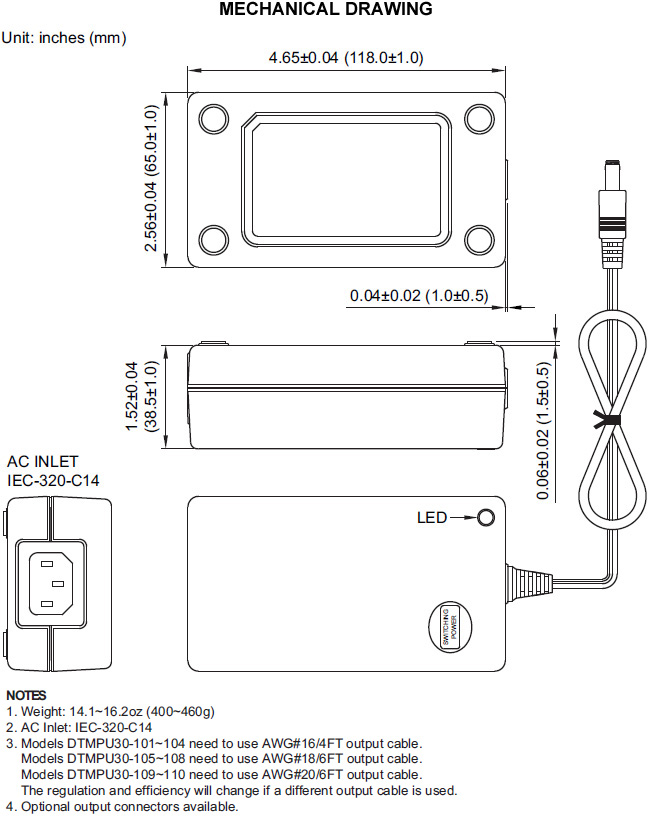

| Dimensions: | 4.65" x 2.56" x 1.52" (118.0 x 65.0 x 38.5 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (ex: 33~40VDC); the customer must specify what they would like the output voltage set at. 2. Models DTMPU30-101~104 need to use AWG#16/4FT output cable in order to meet the total regulation specified. Models DTMPU30-105~108 need to use AWG#18/6FT output cable in order to meet the total regulation specified. Models DTMPU30-109~110 need to use AWG#20/6FT output cable in order to meet the total regulation specified. The regulation and efficiency will change if a different output cable is used. 3. Optional output connectors available. Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60601-1: 2nd edition, TUV/T-mark EN 60601-1: 2nd edition, CE |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/T-Mark EN60601-1: 2nd Edition |
| Energy Star Compliance: | Level V |
