DTMPU130
The DTMPU130 Series of AC/DC medical approved power supplies provide 130 Watts of continuous output power. All supplies are Energy Star 2.0 Level V and UL94V-1 min compliant. This series has single output models with an input voltage range of 90~260VAC. These supplies also have an IEC-320-C14 AC input for worldwide applications. This series is best suited for use in hospital instrumentation and many other applications. All models meet FCC Part-18 class B, CISPR-11 EN55011 class B emission limits and are designed to comply with UL/c-UL (UL 60601-1), TUV/T-mark (EN 60601-1) and new CE requirements. All models are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMPU130-105 | Input Voltage: 90~260 | Output Voltage: 12 | Output Current: 10.84 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| DTMPU130-108 | Input Voltage: 90~260 | Output Voltage: 24 | Output Current: 5.42 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.44" x 3.52" x 1.79" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 12, 24 |
| Output Current: | 5.42A, 10.48A |
| Output Power (Watts): | 130 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | 88% |
| Isolation: | 5656VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 27.44~28.22 oz. |

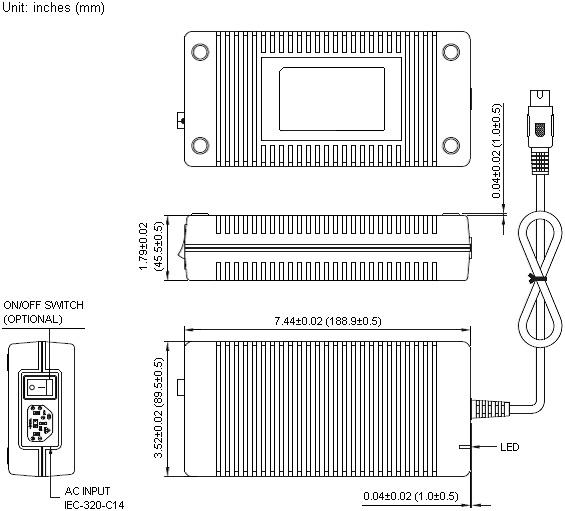

| Dimensions: | 7.44" x 3.52" x 1.79" (188.9 x 89.5 x 45.5 mm) |
| Notes & safety | |
| Notes: | 1. Model DTMPU130-105 needs to use AWG#16*5C/4FT output cable and model DTMPU130-24 needs to use AWG#16*2C/4FT output cable in order to meet the specified regulation and efficiency. The regulation and efficiency will change if a different output cable is used. 2. Optional output connectors available. Please call factory for more details. 3. ON/OFF switch is optional. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/T-Mark EN60601-1 |
| Energy Star Compliance: | Level V |
