DTIPU80
The DTIPU80 series of AC DC desktop power supplies provides 80 watts of continuous output power. This series consists of single output supplies with a universal input range of 90~260VAC and an IEC-320-C14 AC input connector. Some features include active power factor correction, -20°C~+70°C operating temperature range, and input surge current, over voltage, and over load protection. All supplies are CEC Level V, Energy Star 2.0, and UL 94V-1 compliant. This series meets FCC-Part-15 class B and CISPR-22 class B emission limits and has UL/c-UL (UL 60950-1) and TUV/GS (EN 60950-1) approvals. This series also meets new CE requirements. All models are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU80-105 | Input Voltage: 90~260 | Output Voltage: 13 | Output Current: 6.15 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU80-106 | Input Voltage: 90~260 | Output Voltage: 16 | Output Current: 5A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU80-107 | Input Voltage: 90~260 | Output Voltage: 21 | Output Current: 3.8 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU80-108 | Input Voltage: 90~260 | Output Voltage: 27 | Output Current: 2.96 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU80-109 | Input Voltage: 90~260 | Output Voltage: 33 | Output Current: 2.42 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU80-110 | Input Voltage: 90~260 | Output Voltage: 40 | Output Current: 2A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTIPU80-111 | Input Voltage: 90~260 | Output Voltage: 48 | Output Current: 1.66 A | Output Power (W): 80 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 13, 16, 21, 27, 33, 40, 48 |
| Output Current: | 1.66A, 2A, 2.42A, 2.96A, 3.8A, 5A, 6.15A |
| Output Power (Watts): | 80 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | 87% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 21.16~24.69 oz. |

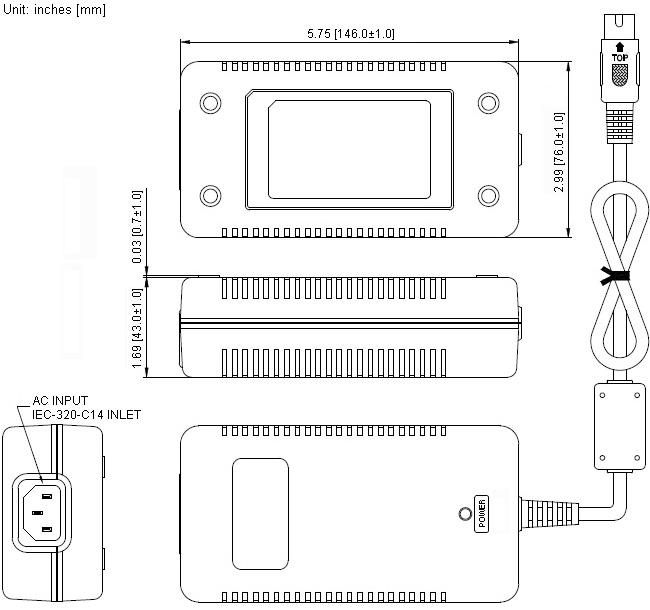

| Dimensions: | 5.75" x 2.99" x 1.69" (146 x 76 x 43 mm) |
| Notes & safety | |
| Notes: | 1. The output voltage is specified as a range (Ex: 40 ~ 48VDC); the preset voltage will be set as standard models if nothing different is requested. Please contact factory for ordering details. 2. The “ * ” symbol means PSE approval. 3. Models with output voltages under 30VDC have been approved by TUV/PSE. 4. Optional output connectors are available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1 |
| Energy Star Compliance: | Level V |
