DTIPU63
The DTIPU63 series of AC/DC desktop switching power supplies provides up to 63 watts of continuous output power. All models have a single output, a 90~264VAC input voltage range, and an IEC-320-C14 input connector for worldwide applications. These supplies have a -20°C~+70°C operating temperature range and are protected against over voltage and over load conditions. All models meet FCC-Part-15 class B and CISPR-22 class B emission limits and have UL/c-UL (UL 60950-1) and TUV/GS (EN 60950-1) approvals. These supplies are UL 94V-1, RoHS, CEC Level V, and Energy Star compliant. This series also meets new CE requirements and are 100% burn-in tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU63-105 | Input Voltage: 90~264 | Output Voltage: 14 | Output Current: 4.07 A | Output Power (W): 57 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTIPU63-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 3.94 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTIPU63-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 3A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTIPU63-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 2.33 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTIPU63-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 1.91 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTIPU63-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 1.58 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| DTIPU63-111 | Input Voltage: 90~264 | Output Voltage: 50 | Output Current: 1.26 A | Output Power (W): 63 | No. Outputs: S | Case: Desktop | Size: 4.65" x 2.05" x 1.36" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 14, 16, 21, 27, 33, 40, 50 |
| Output Current: | 1.26A, 1.58A, 1.91A, 2.33A, 3A, 3.94A, 4.07A |
| Output Power (Watts): | 57, 63 |
| Over Voltage Protection: | 112~132% |
| General | |
| Efficiency: | 88% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 12 oz. |

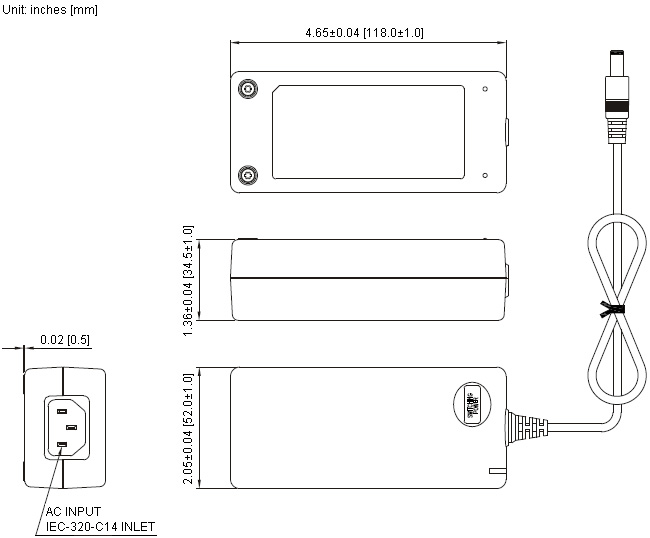

| Dimensions: | 4.65" x 2.05" x 1.36" (118 x 52 x 34.5 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (Ex: 40 ~ 50VDC); the preset voltage will be set as standard models if nothing different is requested. Please contact factory for ordering details. 2. The DTIPU63-105 needs to use AWG#16/4FT output cable in order to meet the specified total regulation. 3. Optional output connectors are available. Please call factory for ordering details. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1 |
| Energy Star Compliance: | Level V |
