DTIPU16

The DTIPU16 series of AC/DC desktop power supplies provides up to 15 Watts of continuous output power. This series consists of single output models with a 90~264VAC input voltage range. All units are UL 94V-1, RoHS2, CEC and Energy Star Level VI compliant and meet FCC Part-15 class B and CISPR-22 class B emission limits. The DTIPU16 series also meets new CE requirements and has UL 60950-1:2nd Edition, IEC 60905-1:2005/A2:2013 safety approvals. The DTIPU16 series has three types of AC inlets available: IEC-320-C14 (Type A), IEC-320-C8 (Type B), and IEC-320-C6 (Type C). 2 prong (Type D) and 3 prong (Type A) A Stand and Mains AC Power Cords also available. All units have been 100% burn-in tested.

• 100% Burn-in Tested • RoHS Compliant • UL 94V-1 Compliant • Energy Star 2.0, Efficiency Level VI Compliant • Single Output Voltages Available from 3~ 48VDC • Wide Input Voltage Range: 87~275VAC • Short Circuit Protection • Efficiency up to 86% • Optional Output Connectors Available • Class I for A, C, & E Types; Class II for B & D Types • -20°C to +70°C Operating Temperature Range • IEC-320-C14, IEC-320-C8, and IEC-320-C6 AC Inlets Available • 2 Prong and 3 Prong A Stand and Mains AC Power Cords Available • Meets FCC Part-15 Class B and CISPR-22 Class B Emission Limits • UL/cUL (UL60950-1: 2nd Edition) and TUV/GS (EN 60950-1: 2nd Edition) Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTIPU16A-101 Input Voltage: 80~275 Output Voltage: 3~5 Output Current: 2.5A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-102 Input Voltage: 80~275 Output Voltage: 5~5.99 Output Current: 2A~2.50A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-103 Input Voltage: 80~275 Output Voltage: 6.5~8 Output Current: 1.5A~1.84A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-101 Input Voltage: 80~275 Output Voltage: 3~5 Output Current: 2.5A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-102 Input Voltage: 80~275 Output Voltage: 5~5.99 Output Current: 2A~2.5A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-103 Input Voltage: 80~275 Output Voltage: 6.5~8 Output Current: 1.5A~1.84A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-101 Input Voltage: 80~275 Output Voltage: 3~5 Output Current: 2.5A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-102 Input Voltage: 80~275 Output Voltage: 5~5.99 Output Current: 2.5A~2A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-103 Input Voltage: 80~275 Output Voltage: 6.5~8 Output Current: 1.50A~1.84A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-101 Input Voltage: 80~275 Output Voltage: 3~5 Output Current: 2.5A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-102 Input Voltage: 80~275 Output Voltage: 5~5.99 Output Current: 2.0A~2.50A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-103 Input Voltage: 80~275 Output Voltage: 6.5~8 Output Current: 1.50A~1.84A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-101 Input Voltage: 80~275 Output Voltage: 3~5 Output Current: 2.5A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-102 Input Voltage: 80~275 Output Voltage: 5~5.99 Output Current: 2A~2.50A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-103 Input Voltage: 80~275 Output Voltage: 6~8 Output Current: 1.5A~1.84A Output Power (W): 12 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-104 Input Voltage: 80~275 Output Voltage: 8~11 Output Current: 1.36A~1.87A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-105 Input Voltage: 80~275 Output Voltage: 11~13 Output Current: 1.15A~1.36A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-106 Input Voltage: 80~275 Output Voltage: 13~16 Output Current: 0.94A~1.15A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-107 Input Voltage: 80~275 Output Voltage: 16~21 Output Current: 0.72A~0.94A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-108 Input Voltage: 80~275 Output Voltage: 21~27 Output Current: 0.55A~0.72A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-109 Input Voltage: 80~275 Output Voltage: 27~33 Output Current: 0.45A~0.55A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-110 Input Voltage: 80~275 Output Voltage: 33~40 Output Current: 0.37A~0.45A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16A-111 Input Voltage: 80~275 Output Voltage: 40~48 Output Current: 0.31A~0.37A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-104 Input Voltage: 80~275 Output Voltage: 8~11 Output Current: 1.36A~1.87A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-105 Input Voltage: 80~275 Output Voltage: 11~13 Output Current: 1.15A~1.36A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-106 Input Voltage: 80~275 Output Voltage: 13~16 Output Current: 0.94A~1.15A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-107 Input Voltage: 80~275 Output Voltage: 16~21 Output Current: 0.72A~0.94A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-108 Input Voltage: 80~275 Output Voltage: 21~27 Output Current: 0.55A~0.72A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-109 Input Voltage: 80~275 Output Voltage: 27~33 Output Current: 0.45A~0.55A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-110 Input Voltage: 80~275 Output Voltage: 33~40 Output Current: 0.37A~0.45A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16B-111 Input Voltage: 80~275 Output Voltage: 40~48 Output Current: 0.31A~0.37A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-104 Input Voltage: 80~275 Output Voltage: 8~11 Output Current: 1.36A~1.87A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-105 Input Voltage: 80~275 Output Voltage: 11~13 Output Current: 1.15A~1.36A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-106 Input Voltage: 80~275 Output Voltage: 13~16 Output Current: 0.94A~1.15A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-107 Input Voltage: 80~275 Output Voltage: 16~21 Output Current: 0.55A~0.72A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-108 Input Voltage: 80~275 Output Voltage: 21~27 Output Current: 0.55A~0.72A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-109 Input Voltage: 80~275 Output Voltage: 27~33 Output Current: 0.45A~0.55A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-110 Input Voltage: 80~275 Output Voltage: 33~40 Output Current: 0.37A~0.45A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16C-111 Input Voltage: 80~275 Output Voltage: 40~48 Output Current: 0.31A~0.37A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-104 Input Voltage: 80~275 Output Voltage: 8~11 Output Current: 1.36A~1.87A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-105 Input Voltage: 80~275 Output Voltage: 11~13 Output Current: 1.15A~1.36A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-106 Input Voltage: 80~275 Output Voltage: 13~16 Output Current: 0.94A~1.15A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-107 Input Voltage: 80~275 Output Voltage: 16~21 Output Current: 0.72A~0.94A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-108 Input Voltage: 80~275 Output Voltage: 21~27 Output Current: 0.55A~0.72A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-109 Input Voltage: 80~275 Output Voltage: 27~33 Output Current: 0.45A~0.55A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-110 Input Voltage: 80~275 Output Voltage: 33~40 Output Current: 0.37A~0.45A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16D-111 Input Voltage: 80~275 Output Voltage: 40~48 Output Current: 0.31A~0.37A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-104 Input Voltage: 80~275 Output Voltage: 8~11 Output Current: 1.36A~1.87A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-105 Input Voltage: 80~275 Output Voltage: 11~13 Output Current: 1.15A~1.36A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-106 Input Voltage: 80~275 Output Voltage: 13~16 Output Current: 0.94A~1.15A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-107 Input Voltage: 80~275 Output Voltage: 16~21 Output Current: 0.72A~0.94A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-108 Input Voltage: 80~275 Output Voltage: 21~27 Output Current: 0.55A~0.72A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-109 Input Voltage: 80~275 Output Voltage: 27~33 Output Current: 0.45A~0.55A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-110 Input Voltage: 80~275 Output Voltage: 33~40 Output Current: 0.37A~0.45A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTIPU16E-111 Input Voltage: 80~275 Output Voltage: 40~48 Output Current: 0.31A~0.37A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 80~275
Input Frequency: 47-63 Hz
Output
Output Voltage: 3~5, 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48
Output Current: 0.31A~0.37A, 0.37A~0.45A, 0.45A~0.55A, 0.55A~0.72A, 0.72A~0.94A, 0.94A~1.15A, 1.15A~1.36A, 1.36A~1.87A, 1.50A~1.84A, 2.00A~2.50A, 2.50A
Output Power (Watts): 12, 15
Short Circuit Protection: Yes
Over Voltage Protection: Yes
General
Efficiency: Up to 86%
Isolation: 4242VDC
Environmental

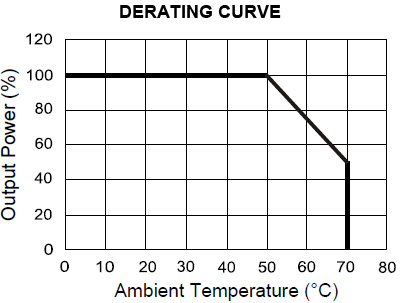

Operating Temperature: 20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 5.8 oz. (165g)

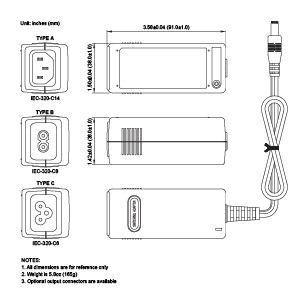

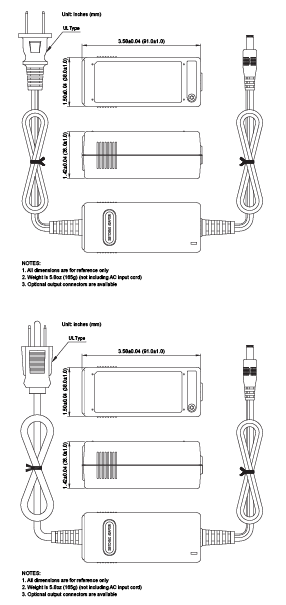

Dimensions: 3.58" x 1.5" x 1.42" (91 x 38 x 36 mm)
Notes & safety
Notes: 1. Output voltage is specified as a range. Customer must specify what output they would like the voltage set at.
2. DTIPU16x-102~107 are required to use AWG#18/4FT output cable.
DTIPU16x-108~111 are required to use AWG#20/4FT output cable.
Regulation and Efficiency will be changed by a modified output cable.
3. Output can provide up to peak load when power supply starts up. Continually staying in rated load is not allowed.
4. Each output is checked to be within voltage accuracy in 60% rated load condition.
5. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
6. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
7. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
8. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: All Models: UL 60950-1:2nd Edition, IEC-60950-1:2005/A2:2013
A, B, C Models: EN60950-1:2006/A2:2013
RoHS Compliance: Yes
TUV Efficiency Level: TUV/GS EN60950-1: 2nd Edition
Energy Star Compliance: Level VI
