DTIPU130
The DTIPU130 series of AC DC desktop power supplies provide up to 130 watts of continuous output power. This series has single and dual output models available. Some features include wide input voltage range, cooling fan, and -20°C~+70°C operating temperature range. All models are protected against input surge current, over voltage, and over load conditions. All supplies are also UL 94V-1 compliant and include IEC-320-C14 input connector for world-wide applications. All models meet FCC-Part-15 class B and CISPR-22 class B emission limits and have UL/c-UL (UL 60950-1) and ITS/GS (EN 60950-1) approvals. This series also meets new CE requirements. These supplies are 100% burn-in tested.
● Cooling Fan
● 100% Burn-in
● Class I Insulation
● IEC-320-C14 Input Inlet
● Long Hold-Up Times (50ms)
● Power Factor Correction (PFC)
● Option: Mounting Tab and Desk Top
● Optional Output Connectors Available
● Over Voltage Protection (Crowbar Design)
● -20°C ~ 70°C Operating Temperature Range
● Input Surge Current, Over Voltage, and Over Load
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTIPU130-101 | Input Voltage: 100~260 | Output Voltage: 5 | Output Current: 18 A | Output Power (W): 90 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-200 | Input Voltage: 100~260 | Output Voltage: 3.3, 12 | Output Current: 20A, 2A | Output Power (W): 90 | No. Outputs: D | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-201-1 | Input Voltage: 100~260 | Output Voltage: 5, 12 | Output Current: 10A, 5A | Output Power (W): 110 | No. Outputs: D | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-102 | Input Voltage: 100~260 | Output Voltage: 6 | Output Current: 19.16 A | Output Power (W): 115 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-201 | Input Voltage: 100~260 | Output Voltage: 5, 12 | Output Current: 20A, 2A | Output Power (W): 120 | No. Outputs: D | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-202 | Input Voltage: 100~260 | Output Voltage: 5, 15 | Output Current: 20A, 2A | Output Power (W): 120 | No. Outputs: D | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-203 | Input Voltage: 100~260 | Output Voltage: 5, 24 | Output Current: 20A, 2A | Output Power (W): 120 | No. Outputs: D | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-103 | Input Voltage: 100~260 | Output Voltage: 8 | Output Current: 16.25 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-104 | Input Voltage: 100~260 | Output Voltage: 11 | Output Current: 11.8 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-105 | Input Voltage: 100~260 | Output Voltage: 13 | Output Current: 10A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-106 | Input Voltage: 100~260 | Output Voltage: 16 | Output Current: 8.12 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-107 | Input Voltage: 100~260 | Output Voltage: 21 | Output Current: 6.19 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-108 | Input Voltage: 100~260 | Output Voltage: 27 | Output Current: 4.81 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-109 | Input Voltage: 100~260 | Output Voltage: 33 | Output Current: 3.93 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-110 | Input Voltage: 100~260 | Output Voltage: 40 | Output Current: 3.25 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-111 | Input Voltage: 100~260 | Output Voltage: 50 | Output Current: 2.6 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| DTIPU130-112 | Input Voltage: 100~260 | Output Voltage: 55 | Output Current: 2.36 A | Output Power (W): 130 | No. Outputs: S | Case: Desktop | Size: 7.72" x 3.46" x 2.01" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115 |
| Input Voltage Range: | 100~260 |
| PFC: | Yes |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 6, 8, 11, 12, 13, 15, 16, 21, 24, 27, 33, 40, 50, 55 |
| Output Current: | 2.36A, 2.6A, 3.25A, 3.93A, 4.81A, 6.19A, 8.12A, 10A, 11.8A, 15A, 16.25A, 19.16A, 18A, 22A |
| Output Power (Watts): | 90, 110, 115, 120, 130 |
| Over Voltage Protection: | 112% to 132% |
| Thermal Protection: | cooling fan (See Note 4) |
| General | |
| Efficiency: | 80% |
| Isolation: | 4242VDC min |
| Environmental | |
| Operating Temperature: | 20 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 30 oz. |

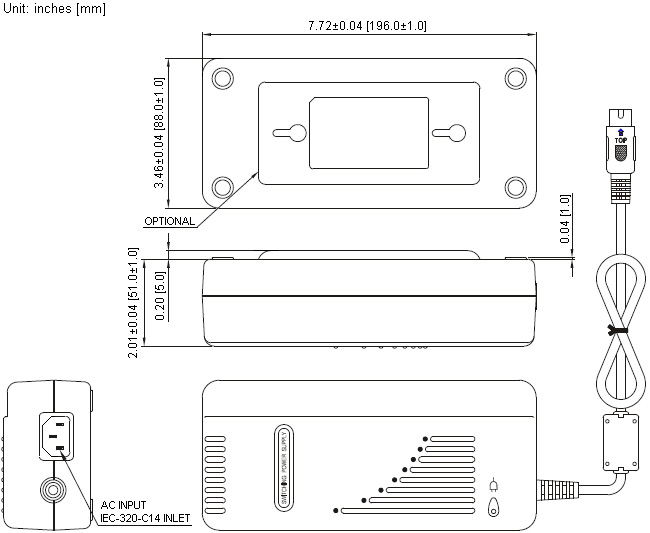

| Dimensions: | 7.72" x 3.46" x 2.01" (196.0 x 88.0 x 51.0 mm) |
| Notes & safety | |
| Notes: | 1. For single output models the output voltage is specified as a range (Ex: 50 ~ 55VDC); the preset voltage will be set as standard models if nothing different is requested. Please contact factory for ordering details. 2. The “ * ” symbol means PSE approval. 3. Models with output voltages under 15VDC have been approved by TUV/PSE. Models with output voltages from 15 ~ 30VDC have been approved by JET/PSE. 4. The cooling fan will turn on when the internal temperature of the unit reaches +70°C. 5. Optional output connectors are available. Please call factory for ordering details. 6. Option: Mounting Tab and Desk Top. Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
