DTHPU180A
The DTHPU180A series of AC/DC desktop switching power supplies offers up to 180 watts of output power. Single outputs are available for this series with an input range of 90 to 260VAC, 47 to 63Hz. The series is protected against short circuit, over voltage, and over load conditions and is RoHS2 compliant. This series is ideal for portable medical devices, patient monitors, ECG machines and blood pressure systems.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTHPU180A-105 | Input Voltage: 90~260 | Output Voltage: 12 | Output Current: 14A | Output Power (W): 168 | No. Outputs: S | Case: Desktop | Size: 7.4" x 3.52" x 1.94" | Get a Quote |
| DTHPU180A-107 | Input Voltage: 90~260 | Output Voltage: 19 | Output Current: 9.47A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.4" x 3.52" x 1.94" | Get a Quote |
| DTHPU180A-108 | Input Voltage: 90~260 | Output Voltage: 24 | Output Current: 7.50A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.4" x 3.52" x 1.94" | Get a Quote |
| DTHPU180A-109 | Input Voltage: 90~260 | Output Voltage: 30 | Output Current: 6A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.4" x 3.52" x 1.94" | Get a Quote |
| DTHPU180A-110 | Input Voltage: 90~260 | Output Voltage: 33 | Output Current: 5.455A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.4" x 3.52" x 1.94" | Get a Quote |
| DTHPU180A-111 | Input Voltage: 90~260 | Output Voltage: 48 | Output Current: 3.75A | Output Power (W): 180 | No. Outputs: S | Case: Desktop | Size: 7.4" x 3.52" x 1.94" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | 0.95-1 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 12, 19, 24, 30, 33, 48 |
| Output Current: | 14A, 9.47A, 7.50A, 6A, 5.455A, 3.75A |
| Output Power (Watts): | 168, 180 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -10 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 31.53~33.58oz (849~952g) |

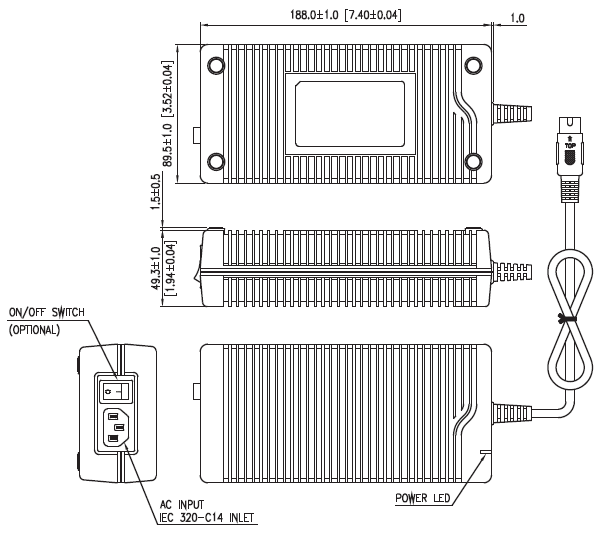

| Dimensions: | 7.40" x 3.52" x 1.94" |
| Notes & safety | |
| Notes: | (1) Output can provide up to peak load when the power supply starts up. Staying in rated load continuously is not allowed. (2) Each output is checked to be within voltage accuracy at factory in 60% rated load condition. (3) Line regulation is defined by changing ±10% of input voltage range nominal line at rated load. (4) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (5) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. (6) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (7) Efficiency is measured at rated load and nominal line. (8) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | ANSI/AAMI ES 60601-1:2005 (UL/cUL 3rd Edition, EN 60601-1:2006 (TUV/T-mark 3rd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | EN 60601-1:2006 (TUV/T-Mark 3rd Edition) |
