DTGMPU70

The DTGMPU70 series of AC/DC medical desktop power supplies offers 70 watts of output power in a 5.75” x 2.97” x 1.69” package. This series consists of single output models with a universal input voltage range of 100~240VAC and either a C14 or C6 AC inlet. Each model in this series has low leakage current, meets EISA 2007/DoE (VI) & EU ErP/CoC (5), and has over voltage, over current and short circuit protection. This series has UL: ES60601-1, CSA:C22.2 NO. 60601-1, CB: IEC 60601-1, and EN: EN60601-1 safety approvals.

• Universal Input Voltage Range of 100~240VAC • Low Leakage Current • Meets EISA 2007/DoE (VI) & EU ErP/CoC (5) • C14 or C6 AC Inlet • Over Voltage, Over Current, and Short Circuit Protection • Means of Patient Protection Design • Meets 60601-1 3rd Edition • UL: ES60601-1, CSA:C22.2 NO.60601-1, CB: IEC 60601-1, and EN: EN60601-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTGMPU70X-3 Input Voltage: 100~240 Output Voltage: 11~13 Output Current: 6.37A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTGMPU70X-4 Input Voltage: 100~240 Output Voltage: 13~16 Output Current: 5.39A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTGMPU70X-5 Input Voltage: 100~240 Output Voltage: 16~21 Output Current: 4.38A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTGMPU70X-6 Input Voltage: 100~240 Output Voltage: 21~27 Output Current: 3.34A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTGMPU70X-7 Input Voltage: 100~240 Output Voltage: 27~33 Output Current: 2.60A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
DTGMPU70-8 Input Voltage: 100~240 Output Voltage: 33~48 Output Current: 2.13A Output Power (W): 70 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50 to 60Hz
Output
Output Voltage: 11~13, 13~16, 16~21, 21~27, 27~33, 33~48
Output Current: 2.13A, 2.60A, 3.34A, 4.38A, 5.39A, 6.37A
Output Power (Watts): 70
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Zener Diode, 110~140%
General
Efficiency: 88%
Environmental
Operating Temperature: -20 to 40ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 13.05~13.23oz (370~375g)

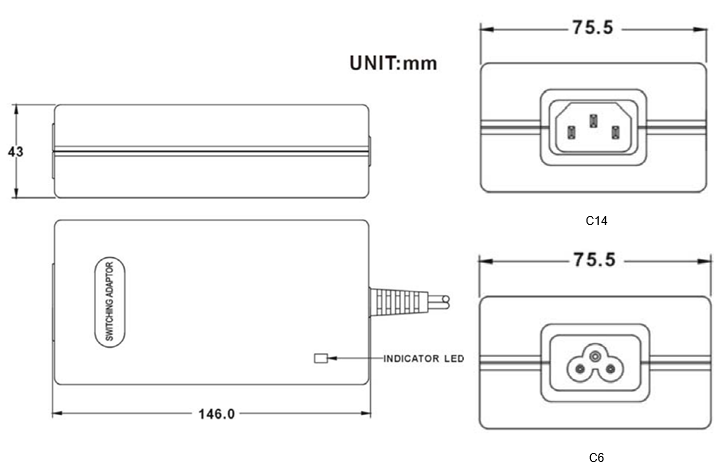

Dimensions: 5.75in x 2.97in x 1.69in (146mm x 75.5mm x 43mm)
Notes & safety
Notes: 1. “X” in model number indicates AC inlet type. “X” can either be “A” for C14 or “B” for C6.
2. Avg. Efficiency: Averages the efficiency at 25, 50, 75, and 100% of max. rated output load.
3. Standard Output Cable: 11~16V: UL1571, 14AWG, 1M
16~21V: UL1571, 16AWG, 1M
21~48V: SPT-1, 18AWG, 6FT
4. Optional Output Connectors Available
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL: ES60601-1, CSA: C22.2 NO.60601-1, CB: IEC 60601-1, EN: EN60601-1
Energy Star Compliance: DoE Level VI & CoC 5
