DTGMPU18
The DTGMPU18 series of AC/DC medical desktop power supplies offers 18 watts of output power in a 3.94” x 2.30” x 1.29” package. This series consists of single output models with universal input voltage range of 100~240VAC and different options available. Either an IEC-320-C14, IEC-320-C18, or IEC-320-C6 AC inlet and there are several optional output connectors available. Each model in this series has over voltage, over current, and short circuit protection while 5~6 and 8~58VDC models meet EISA 2007/DoE (VI) & EU ErP/CoC (5).
X: “A” for IEC-320-C14 Inlet, “B” for IEC-320-C8 Inlet, or “C” for IEC-320-C6 Inlet
DTGMPU18A-1= 5~6VDC Model with IEC-320-C14 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTGMPU18X-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 3.00A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 2.50A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 2.25A | Output Power (W): 18.04 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 1.64A | Output Power (W): 18.04 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 1.38A | Output Power (W): 18.08 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.13A | Output Power (W): 18.08 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 0.86A | Output Power (W): 18.09 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 0.67A | Output Power (W): 18.15 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| DTGMPU18X-8 | Input Voltage: 100~240 | Output Voltage: 33~58 | Output Current: 0.55A | Output Power (W): 18.56 | No. Outputs: S | Case: Desktop | Size: 3.94" x 2.3" x 1.29" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~58 |
| Output Current: | 3.00A, 2.50A, 2.25A, 1.64A, 1.38A, 1.13A, 0.86A, 0.67A, 0.55A |
| Output Power (Watts): | 15, 18.04, 18.08, 18.09, 18.15, 18.56 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Zener Diode, 110~140% |
| General | |
| Efficiency: | Up to 85.45% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 4.94~5.64oz (140~160g) |

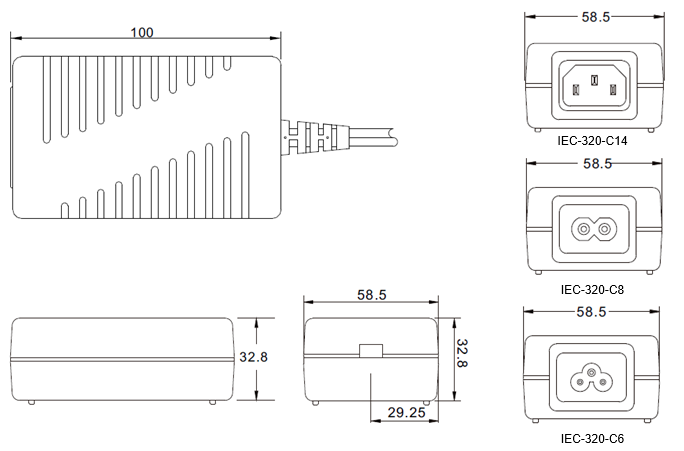

| Dimensions: | 3.94in x 2.30in x 1.29in (100mm x 58.5mm x 32.8mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates AC Inlet. “X” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, or “C” for IEC-320-C6. 2. Avg. Efficiency: averages the efficiency at 25, 50, 75, and 100%. 3. Standard Output Cables: 5~5.9V: UL2468, 16AWG, 1M 6~8V: UL2468, 20AWG, 4FT 8~11V: UL2468, 16AWG, 1M 11~13V: UL2468, 18AWG, 1M 13~58V: UL2468, 22AWG, 5FT 4. Optional output connectors 5. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL: ES60601-1, CSA: C22.2 NO. 60601-1, CB: IEC 60601-1, EN:EN60601-1 |
| Energy Star Compliance: | DoE Level V, VI & CoC 4, 5 |
