DTEPU40A
The DTEPU40 series of AC DC desktop power supplies offers up to 40 watts of output power in a 4.2” x 1.85” x 1.19” package. This series offers single output models with output voltages ranging from 5~48VDC and a wide input voltage range of 90~264VAC. Each model is both Energy Efficiency Level VI and RoHS compliant and has high efficiency of 84~90%.. Each model is also protected against over current conditions and has UL/c-UL (UL 60950-1:2nd Edition) and TUV/GS (EN60950-1:2nd Edition safety approvals.
• Wide Operating Voltage of 90~264VAC
• IEC-320-C14 Input Inlet
• Optional Output Connectors Available
• Single Outputs
• Class I System
• Energy Efficiency Level VI
• RoHS Compliant
• Over Current and Short Circuit Protection
• High Efficiency of 84~90%
• 1 Year Warranty
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEPU40A-102 | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 5A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-103 | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 5~3.75A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 4.375~3.18A | Output Power (W): 35 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 3.64~3.07A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 3.07~2.50A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 2.50~1.90A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 1.90~1.48A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 1.48~1.21A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 1.21~1A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| DTEPU40A-111 | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 1~0.83A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" x 1.19" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 5A, 5~3.75A, 4.375~3.18A, 3.64~3.07A, 3.07~2.5A, 2.5~1.9A, 1.9~1.48A, 1.48~1.21A, 1.21~1.0A, 1.0~0.83A |
| Output Power (Watts): | 30, 40 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | 84-90% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 9.35~9.88oz |

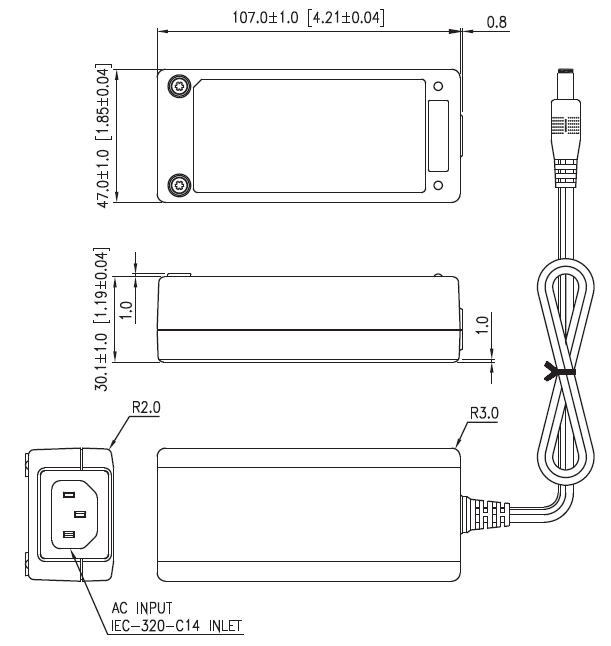

| Dimensions: | 4.21" x 1.85" x 1.19" |
| Notes & safety | |
| Notes: | (1) DTEPU40A-102-104 are required to use AWG#14/4FT output cable. DTEPU40A-105-110 are required to use AWG#18/4FT output cable. DTEPU40A-111 is required to use AWG#20/4FT output cable. The electrical characteristics will be changed by modified output cable. (2) The DTEPU40A-102 is available on NRCan mark (3) Output can provide up to peak load when the power supply starts up. Staying in more than rated load continuously is not allowed. (4) Each output is checked to be within voltage accuracy in 60% rated load condition. (5) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (6) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (7) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. (8) Hold up time is measured from end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (9) Efficiency measured at rated load and nominal line. (10) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/c-UL (UL 60950-1: 2nd Edition), TUV/GS (EN 60950-1: 2nd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd edition) |
| Energy Star Compliance: | Level VI |
