DTEPU16

The DTEPU16 AC DC desktop power supplies offers up to 15 watts of output power in a 3.58” x1.5” x 1.42” package. This series is useful in a variety of applications such as portable devices, charges, and monitors, among others. It consists of single output models in which three AC Input Inlets are available: IEC-320-C14, C8, and C6, and 2 types of cords are available, both 2 prong and 3 prong. This series is both Energy Efficiency Level VI and RoHS compliant and has UL/c-UL(UL 60950-1: 2nd Edition) and TUV/GS (EN 60950-1: 2nd Edition) safety approvals. Please call factory for order details.

• Wide Operating Input Voltage Range of 90~264VAC • Optional Output Connectors Available • Optional AC Input Inlets Available: IEC-320-C14, C8, and C6 • Class I (Type A, Type C, and Type E), Class II (Type B and Type D) • Useful in Multiple Applications • Short Circuit and Over Load Protection • UL/cUL (UL 60950-1: 2nd Edition) and TUV/GS (EN 60950-1: 2nd Edition) Safety Approvals • Single Outputs • Level VI and RoHS Compliant • 1 Year Warranty

Part Number Setup:
X: “A” for IEC-320-C14 inlet, “B” for IEC-320-C8 inlet, “C” for IEC-320-C6 inlet, “D” for 2-Prong Power Cord, and “E” for 3-Prong Power Cord

Example:
DTEPU16C-104 = 8~11VDC Output with IEC-320-C6 Inlet

Get a Quote Request a Sample Custom Solutions

Models
Specifications

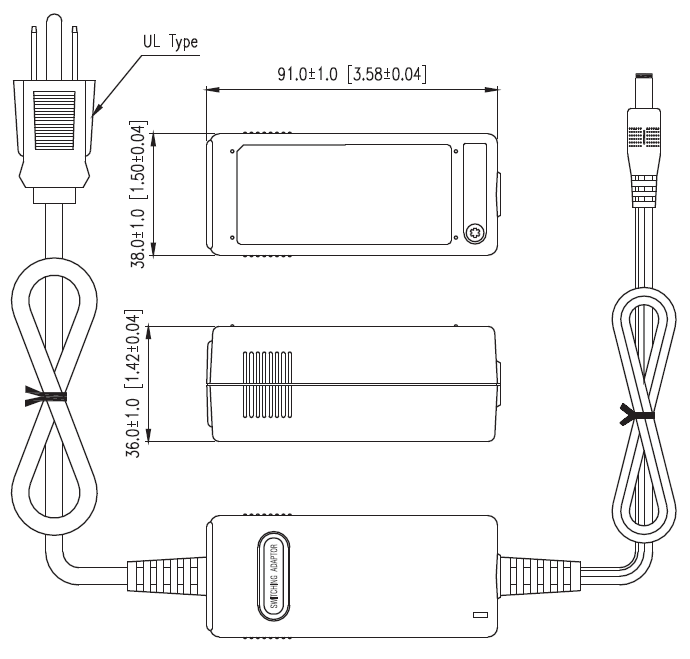

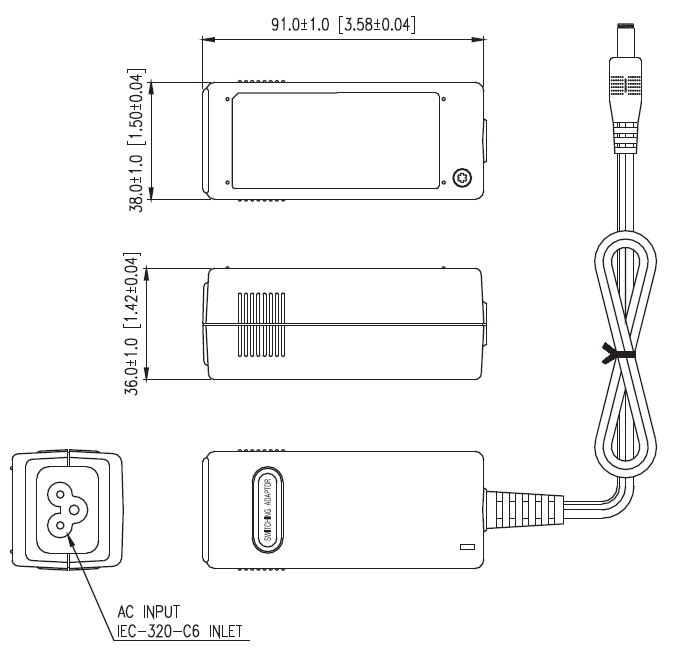

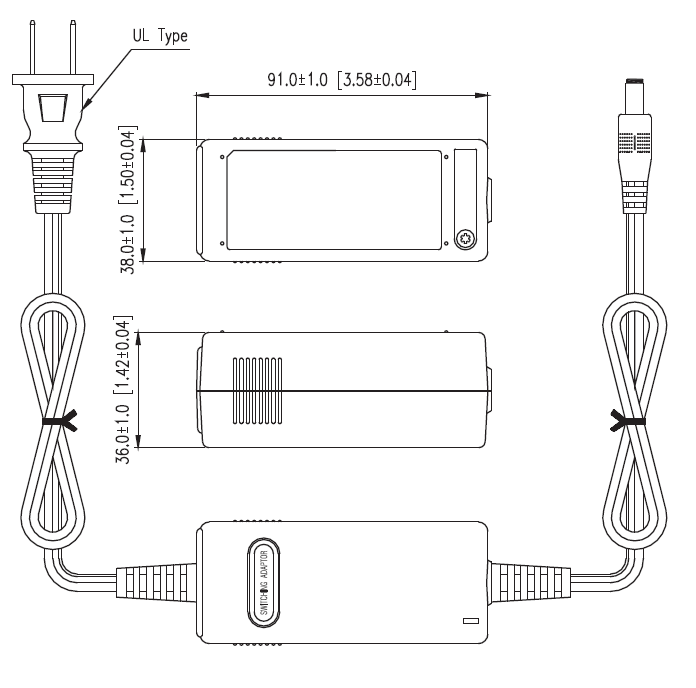

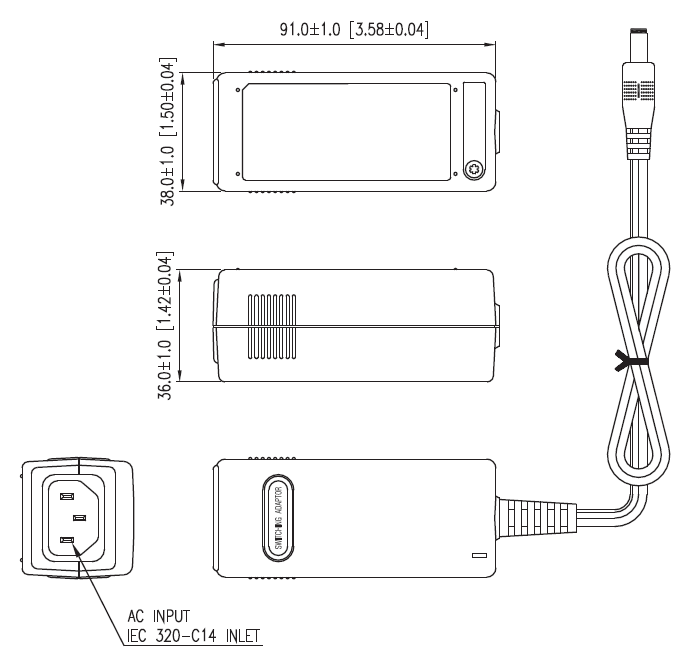

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTEPU16x-102	Input Voltage: 90~264	Output Voltage: 5~5.99	Output Current: 2.50~2A	Output Power (W): 12	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-103	Input Voltage: 90~264	Output Voltage: 6.5~8	Output Current: 1.84~1.50A	Output Power (W): 12	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-104	Input Voltage: 90~264	Output Voltage: 8~11	Output Current: 1.68~1.22A	Output Power (W): 13.5	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-105	Input Voltage: 90~264	Output Voltage: 11~13	Output Current: 1.36~1.15A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-106	Input Voltage: 90~264	Output Voltage: 13~16	Output Current: 1.15~0.94A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-107	Input Voltage: 90~264	Output Voltage: 16~21	Output Current: 0.94~0.72A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-108	Input Voltage: 90~264	Output Voltage: 21~27	Output Current: 0.72~0.55A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-109	Input Voltage: 90~264	Output Voltage: 27~33	Output Current: 0.55~0.45A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-110	Input Voltage: 90~264	Output Voltage: 33~40	Output Current: 0.45~0.37A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote
DTEPU16x-111	Input Voltage: 90~264	Output Voltage: 40~48	Output Current: 0.37~0.31A	Output Power (W): 15	No. Outputs: S	Case: Desktop	Size: 3.58" x 1.5" x 1.42"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
Input Frequency:	47-63Hz
Output
Output Voltage:	5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48
Output Current:	2.50~2A, 1.84~1.50A, 1.68~1.22A, 1.36~1.15A, 1.15~0.94A, 0.94~0.72A, 0.72~0.55A, 0.55~0.45A, 0.45~0.37A, 0.37~0.31A
Output Power (Watts):	12, 13.5, 15
Short Circuit Protection:	Automatic Recovery
General
Efficiency:	Up to 86%
Isolation:	2594VDC
Environmental
Operating Temperature:	0 to 70°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	5.82oz (165g)
Dimensions:	3.58" x 1.50" x 1.42" (91.0 x 38.0 x 36.0 mm)
Notes & safety
Notes:	(1) The “x” in the model number represents options for models. When “A”=IEC-320-C14, “B”=IEC-320-C8, “C”=IEC-320-C6, “D”=2-Prong Power Cord, and “E”=3-Prong Power Cord DTEPU16x-102~107 are required to use AWG#18/4FT output cable. DTEPU16x-108~111 are required to use AWG#20/4FT output cable. Electrical characteristics will be changed by modified output cable. (2) DTEPU16A-104, 105, 108 are available on NRCan mark. DTEPU16C-104, 105, 108 are available on NRCan mark. DTEPU16E-104, 105, 108 are available on NRCan mark. (3) Output can provide up to peak load when the power supply starts up. Staying in more than rated load continuously is not allowed. (4) In 60% rated load condition, each output is checked to be within voltage accuracy. (5) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (6) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (7) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47µF capacitor at rated load and nominal line. (8) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (9) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice.
Safety Approvals:	UL/c-UL (UL 60950-1: 2nd Edition)
RoHS Compliance:	Yes
TUV Efficiency Level:	TUV/GS (EN 60950-1: 2nd edition)
Energy Star Compliance:	Level VI
