DTEM1300

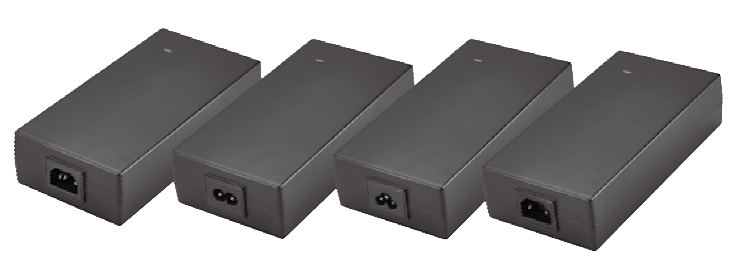

The DTEM1300 series of AC/DC medical desktop power supplies offers up to 310 watts of output power in a 7.78” x 4.02” x 2.01” package. This series consists of single output models with a wide input voltage range of 100~240VAC and active PFC function. Four AC inlets are available for this series: C14, C8, C6, or C18 as well as over voltage, over current, over temperature, and short circuit protection. This series has UL/cUL, UL60601, CB 60601, CE, and FCC safety approvals.
• Input Voltage Range of 100~240VAC
• Active PFC Function
• LED Indication
• RoHS Compliance
• C14, C8, C6, or C18 AC Inlets
• Meets CEC Level V, VI (DoE)
• Over Voltage, Over Current, Over Temperature, and Short Circuit Protection
• UL/cUL, UL60601, CB 60601, CE, and FCC Safety Approvals
Part Number Setup:
X: “1” for C14 Inlet, “2” for C8 Inlet, “3” for C6 Inlet, or “4” for C18 Inlet
X: “1” for C14 Inlet, “2” for C8 Inlet, “3” for C6 Inlet, or “4” for C18 Inlet
Example:
DTEM1300A2 = 12~18VDC with C8 Inlet
DTEM1300A2 = 12~18VDC with C8 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEM1300Ax | Input Voltage: 100~240 | Output Voltage: 12~18 | Output Current: 13.33A | Output Power (W): 230 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Bx | Input Voltage: 100~240 | Output Voltage: 12~18 | Output Current: 20.00A | Output Power (W): 240 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Cx | Input Voltage: 100~240 | Output Voltage: 12~18 | Output Current: 20.85A | Output Power (W): 250.2 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Dx | Input Voltage: 100~240 | Output Voltage: 19~28 | Output Current: 13.68A | Output Power (W): 260 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Ex | Input Voltage: 100~240 | Output Voltage: 19~28 | Output Current: 14.21A | Output Power (W): 270 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Fx | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 8.43A | Output Power (W): 270 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Gx | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 6.13A | Output Power (W): 270 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Hx | Input Voltage: 100~240 | Output Voltage: 19~28 | Output Current: 14.73A | Output Power (W): 280 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Mx | Input Voltage: 100~240 | Output Voltage: 19~28 | Output Current: 15.26A | Output Power (W): 290 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Nx | Input Voltage: 100~240 | Output Voltage: 19~28 | Output Current: 15.78A | Output Power (W): 300 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Px | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 9.68A | Output Power (W): 310 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| DTEM1300Qx | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 7.04A | Output Power (W): 310 | No. Outputs: S | Case: Desktop | Size: 7.78" x 4.02" x 2.01" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| PFC: | Yes |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 12~18, 19~28, 32~42, 44~56 |
| Output Current: | 7.04A, 9.68A, 15.78A, 15.26A, 14.73A, 6.13A, 8.43A, 14.21A, 13.68A, 20.85A, 20.00A, 13.33A |
| Output Power (Watts): | 230, 240, 250.2, 260, 270, 280, 290, 300, 310 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Mode |
| Thermal Protection: | Latch Mode |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -20 to 85ºC |
| Physical | |
| Weight: | 2.98lbs (1350g) |

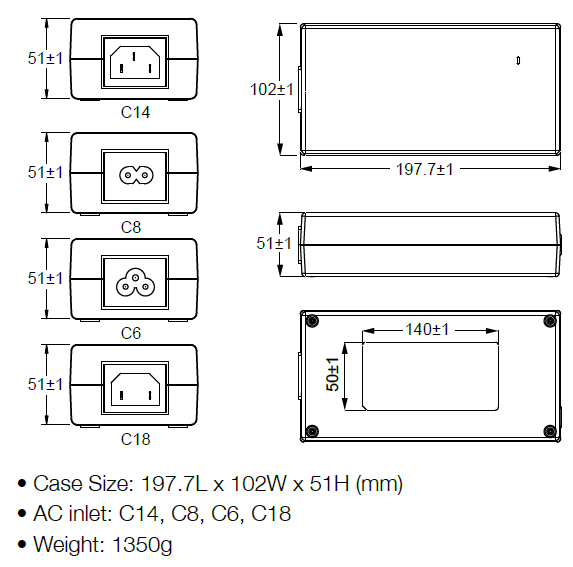

| Dimensions: | 7.78in x 4.02in x 2.01in (197.7mm x 102mm x 51mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number represents optional AC Inlet. “X” can either be “1” for C14, “2” for C8, “3” for C6, or “4” for C18. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, UL60601, CB 60601, CE, FCC |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V, VI |
