DTEM1036

The DTEM1036 series of medical AC/DC desktop power supplies provides up to 36 Watts of continuous output power in a 3.86” x 1.77” x 1.22” package. This series consists of single output models with a wide input voltage range of 100~240VAC. The DTEM1036 series is RoHS, WEEE, and CEC/Energy Star Level IV compliant and has UL60601-1 medical approvals. These models are also protected against over voltage and short circuit conditions. This series has three AC inlet connector types available: IEC-320-C14, IEC-320-C8, and IEC-320-C6. Please call factory for ordering details.

• Single Outputs • CEC/Energy Star Level IV Compliant • RoHS & WEEE Compliant • Short Circuit and Over Voltage Protection • MTBF: > 30,000 Hours • 100~240VAC Input Voltage Range • C14, C8, and C6 AC Inlet Connectors Available • Dimensions: 3.86” x 1.77” x 1.22” • UL60601-1 Medical Approvals • Optional Output Connectors Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
DTEM1036E1 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTEM1036E2 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTEM1036E3 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 1A Output Power (W): 15 No. Outputs: S Case: Desktop Get a Quote
DTEM1036D1 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTEM1036D2 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTEM1036D3 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 1.5A Output Power (W): 18 No. Outputs: S Case: Desktop Get a Quote
DTEM1036C1 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 2A Output Power (W): 24 No. Outputs: S Case: Desktop Get a Quote
DTEM1036C2 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 2A Output Power (W): 24 No. Outputs: S Case: Desktop Get a Quote
DTEM1036C3 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 2A Output Power (W): 24 No. Outputs: S Case: Desktop Get a Quote
DTEM1036B1 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Desktop Get a Quote
DTEM1036B2 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Desktop Get a Quote
DTEM1036B3 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 2.5A Output Power (W): 30 No. Outputs: S Case: Desktop Get a Quote
DTEM1036A1 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Desktop Get a Quote
DTEM1036A2 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Desktop Get a Quote
DTEM1036A3 Input Voltage: 100~240 Output Voltage: 9~15 Output Current: 3A Output Power (W): 36 No. Outputs: S Case: Desktop Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 100~240
Input Frequency: 50/60Hz
Output
Output Voltage: 9~15
Output Current: 1.5A, 2A, 2.5A, 1A, 3A
Output Power (Watts): 15, 18, 24, 30, 36
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Automatic Recovery
General
Efficiency: 82%
Environmental
Operating Temperature: 0 to 50°C
Storage Temperature: -20 to 85°C
Physical
Weight: 7.76 oz.

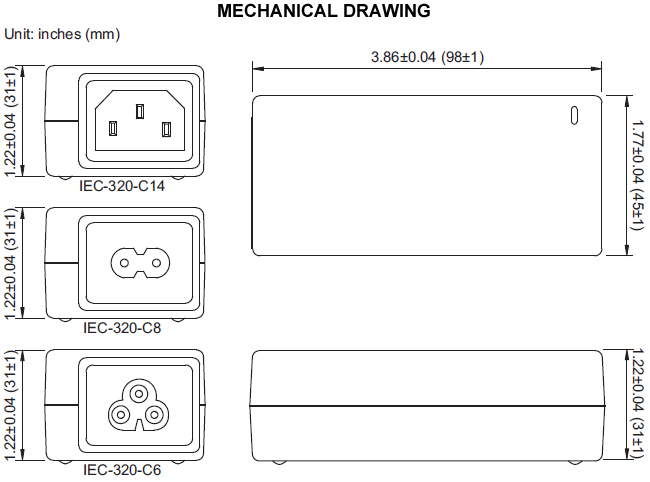

Dimensions: 3.86" x 1.77" x 1.22" (98 x 45 x 31 mm)
Notes & safety
Notes: 1. The number in red represents the type of AC inlet connector: “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, and “3” for IEC-320-C6 type.
2. The output voltage is specified as a range (Ex: 9~15VDC); the customer must specify what they want the voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz limited bandwidth and a 0.1µF ceramic and 47µF aluminum capacitors in parallel on the output.
4. Optional output connectors are available. Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60601-1
RoHS Compliance: Yes
Energy Star Compliance: Level IV
