DTEA1300
The DTEA1300 series of AC DC desktop power supplies offers up to 310 watts of output power in a 7.76” x 3.94” x 2.01” package. This series consists of single model outputs with an output voltage range from 12V~56V. Each model has Efficiency Level V, VI and well as RoHS compliance. Each model also has AC Inlet IEC320 C14 as well as active PFC function. The DTEA1300 series is protected against over voltage, over current, and over temperature conditions and has UL60950 and EN/IEC 60950 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTEA13001A | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 19.16A | Output Power (W): 230 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001B | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 20A | Output Power (W): 240 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001C | Input Voltage: 100~240 | Output Voltage: 12~16 | Output Current: 20.83A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001D | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 13.68A | Output Power (W): 260 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001E | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 14.21A | Output Power (W): 270 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001F | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 8.43A | Output Power (W): 270 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001G | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 6.13A | Output Power (W): 270 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001H | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 14.73A | Output Power (W): 280 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001M | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 15.26A | Output Power (W): 290 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001N | Input Voltage: 100~240 | Output Voltage: 19~24 | Output Current: 15.78A | Output Power (W): 300 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001P | Input Voltage: 100~240 | Output Voltage: 32~42 | Output Current: 9.68A | Output Power (W): 310 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| DTEA13001Q | Input Voltage: 100~240 | Output Voltage: 44~56 | Output Current: 7.14A | Output Power (W): 310 | No. Outputs: S | Case: Desktop | Size: 7.76 x 3.94 x 2.01 | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| PFC: | Yes |
| Input Frequency: | 50~60Hz |
| Output | |
| Output Voltage: | 12~16, 19~24, 32~42, 44~56 |
| Output Current: | 7.04A, 6.13A, 9.68A, 8.43A, 14.73A, 14.21A, 15.26A, 13.68A, 15.78A, 19.16A, 20.0A, 20.83A |
| Output Power (Watts): | 230, 240, 250, 260, 270, 280, 290, 300, 310 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch Off |
| Thermal Protection: | Latch Off |
| General | |
| Environmental | |
| Operating Temperature: | 0 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 3.75lbs |

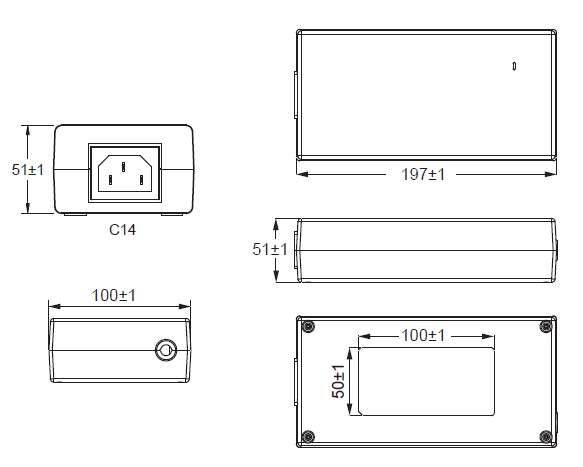

| Dimensions: | 7.76 x 3.94 x 2.01 |
| Notes & safety | |
| Notes: | (1) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. (2) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (3) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL60950, EN/IEC 60950 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V, VI |
